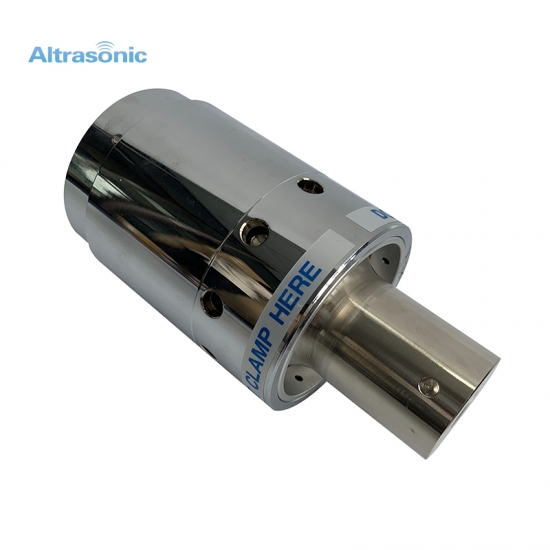

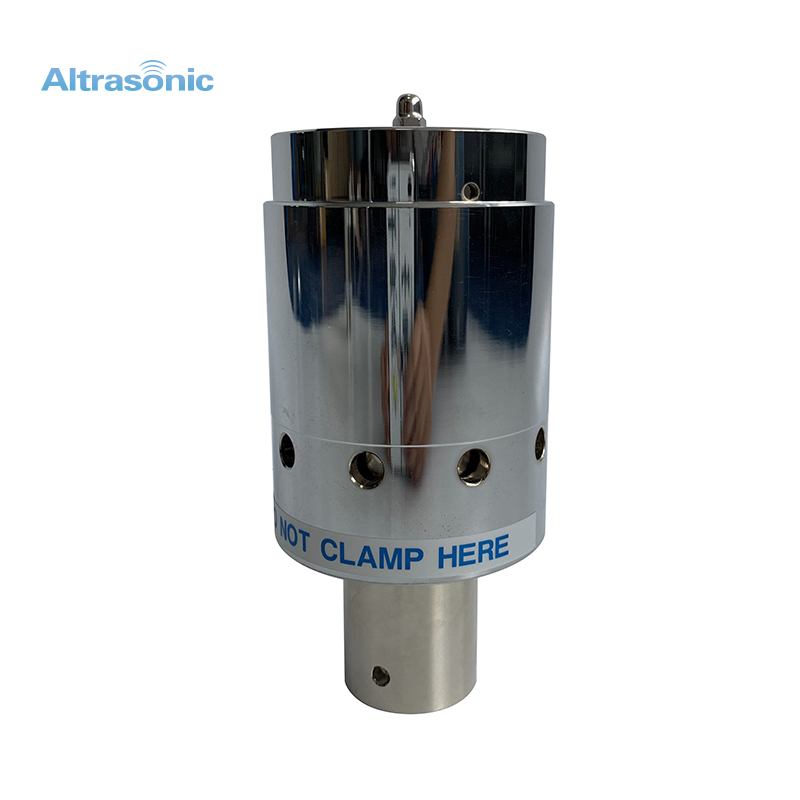

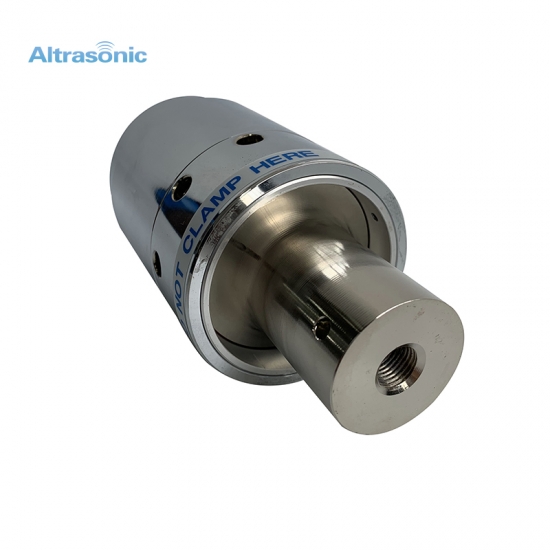

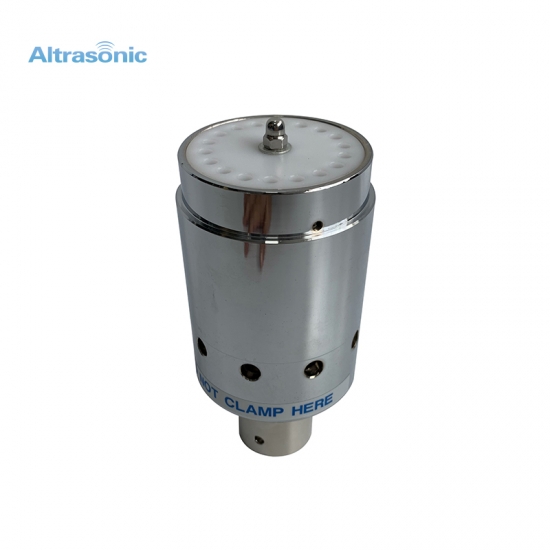

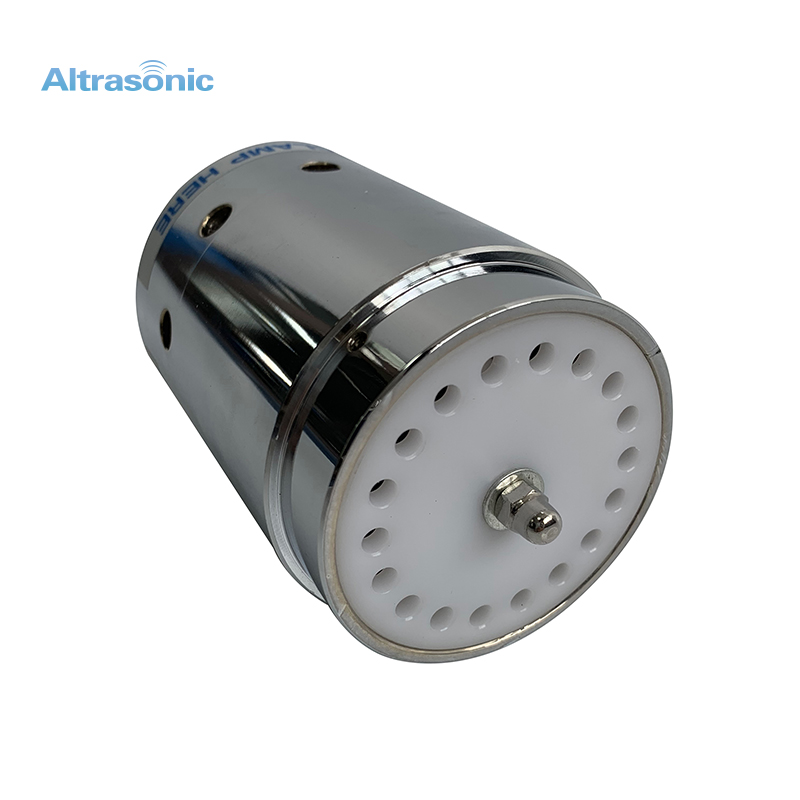

Branson Ultrasonic 902 Converter/Transducer Replacement 20khz Ultrasonic Welder

Branson Ultrasonic 902 Converter/Transducer Replacement 20khz Ultrasonic Welder

The transducer is the core component of the ultrasonic plastic welding equipment. We can provide professional manufacturers with Branson-type transducers replacement, which are perfectly matched to the existing machines.

  • Item No.:

    HS-B902
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Sliver
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details


Branson Ultrasonic 902 Converter/Transducer Replacement 20khz Ultrasonic Welder


Specification:


 Item No  HS-B902
 Frequency  20 kHz
 Power  1100 watt
 Connect screw  1/2-20UNF
 Diameter of ceramic  40 mm
 Quantity of ceramic  4 pcs
 Capacitance  8000



Description:


Replacement Branson 902 converter For 905,910 D/M (500 and 1000 watt) power supplies and welder model 910 IW and 910 IW+ Part No- 101-135-047 The CONVERTER is the motor of the ultrasonic welding system. This component produces a motion via a piezoelectric effect, which is to say that the converter expands and contracts when electrically excited by the power supply. At 20 kHz, this expansion and contraction is approximately .0008 of an inch or 20 microns at the face of the converter and the movement is in an axial motion. The converter is matched to the output frequency of the power supply. There are different converters for 15, 20, 30 & 40 kHz ultrasonic welders.


Workshop:



CE:



Shipping:




Payment:
