Home Ultrasonic Welding Machine

Ultrasonic Metal Welding Machine

Automobile wire harness welding machine Multi-strand copper wire square welding machine

Automobile wire harness welding machine Multi-strand copper wire square welding machine

Ultrasonic metal welding uses high-frequency vibration waves to be transmitted to two metal surfaces to be welded. Under pressure, the two metal surfaces are rubbed against each other to form a fusion between molecular layers.

  • Item No.:

    HS-2050
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

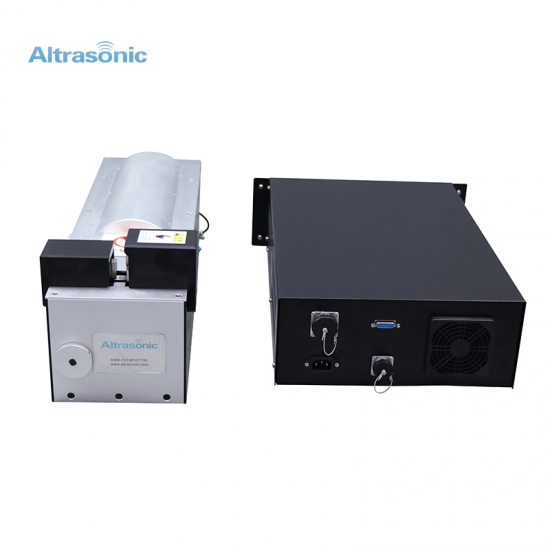

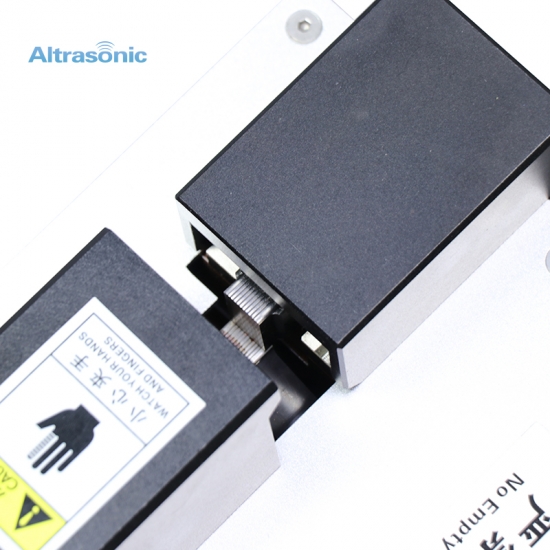

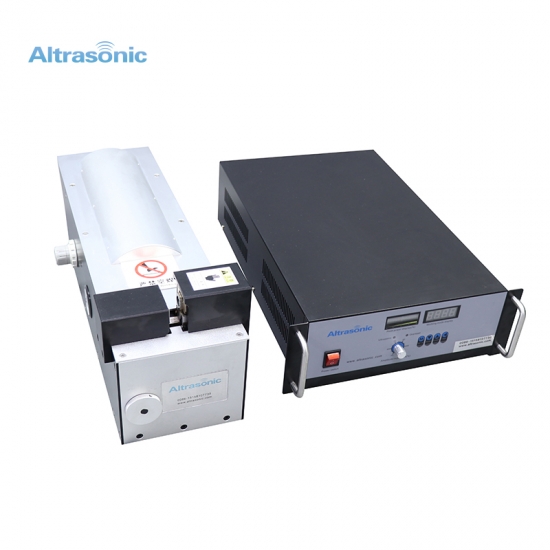

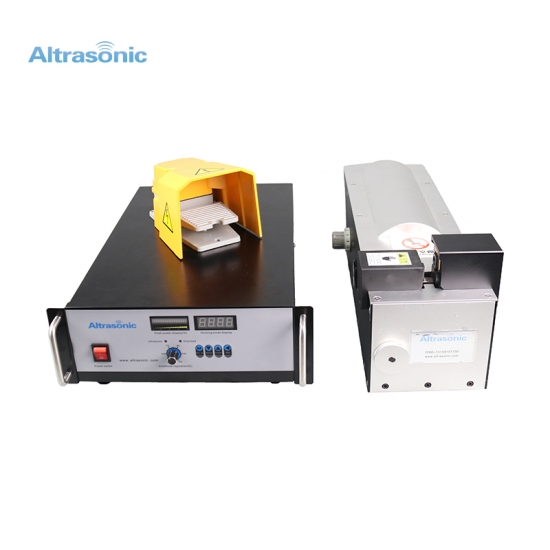

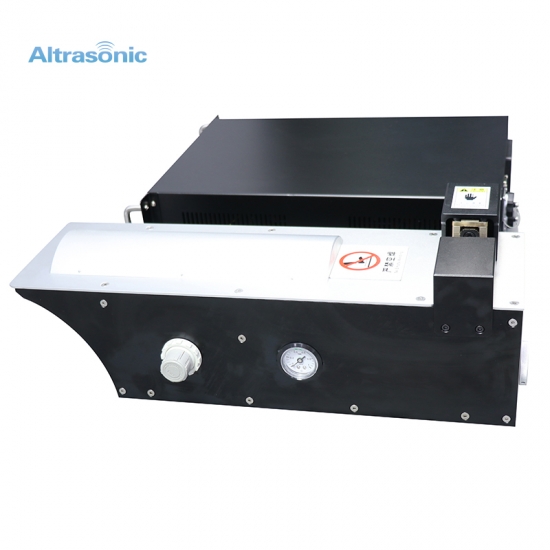

Automobile wire harness welding machine Multi-strand copper wire square welding machine

Description:

Ultrasonic metal welding uses high-frequency vibration waves to be transmitted to two metal surfaces to be welded. Under pressure, the two metal surfaces are rubbed against each other to form a fusion between molecular layers. Its advantages are rapid, energy-saving, and fusion. High strength, good electrical conductivity, no sparks, close to cold processing; the disadvantage is that the welded metal parts can not be too thick (generally less than or equal to 5mm), the welding point can not be too large, and it needs to be pressurized.



Specifications:


 Item No  HS-2050A
 Frequency  20 kHz
 Power  5000 watt
 Welding area  0-35 mm²
 Working air pressure  0.05-0.9 MPa
 Weight  55 KG
 Generator size  500*400*160 mm
 Machine size  600*200*260 mm


Characteristic:

1. The welding area of the ultrasonic wire harness welding machine can be adjusted.

2. The ultrasonic wire beam welding machine can reduce the temperature effect of the material to a relatively low level (the temperature of the welding zone does not exceed 50% of the melting temperature of the welded metal), so that the metal structure does not change, so it is very suitable for welding applications in the electronic field.

3. Compared with the resistance welding method, the ultrasonic harness welding machine has a long mold life, less time for mold refurbishment and replacement, and it is easy to realize automation.

4. Ultrasonic wire-beam welding machine can perform ultrasonic welding between the same kind of metal and different kinds of metals, which consumes much less energy than electric welding.









Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
