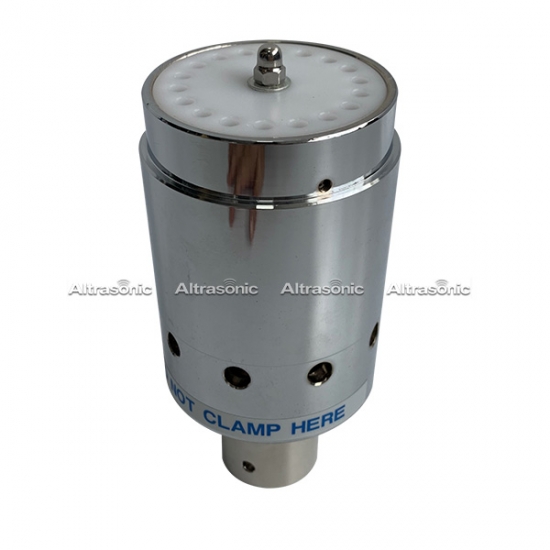

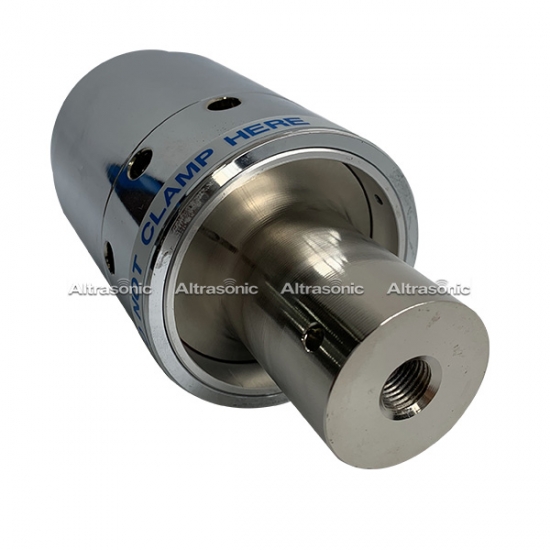

Replacement Ultrasonic Converter Branson902





Description:


The CONVERTER is the motor of the ultrasonic welding system. This component produces a motion via a piezoelectric effect, which is to say that the converter expands and contracts when electrically excited by the power supply.
At 20 kHz, this expansion and contraction is approximately .0008 of an inch or 20 microns at the face of the converter and the movement is in an axial motion. The converter is matched to the output frequency of the power supply. There are different converters for 15, 20, 30 & 40 kHz ultrasonic welders.




Advantage:


1.High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.

2.Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.

3.Big Power: under the function of the prestressed force screw rod, the piezoelectricity ceramics can work freely in the highest level of power.

4.In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and

high reliability.




Specifications:


The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)

Item No.

Connect

screw (Size)

Ceramic

diameter (mm)

Quantity of

 Ceramic (pc)

Resonance

frequency (khz)

Resistance (Ω)

Capacitance

Input

power (W)

Max.

Amplitude (um)













Yellow

Grey

Black





7015-4D

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

11

6015-4D

M18 X 1.5

60

4

15

15

9000-10000

10000-11000

/

2200

11

6015-6D

1/2-20UNF

60

6

15

15

19000-20500

/

23000-25000

2600

11

5015-6D

1/2-20UNF

50

6

15

15

17000-19000

/

23000-25000

2000

11

5020- 4DS

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

/

1300

8

5020-4D

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

14500-16000

1500

8

5020-6D

1/2-20UNF

50

6

20

15

19000-21000

/

22500-25000

2000

10

4020-6D

1/2-20UNF

40

6

20

15

13500-15000

/

/

1500

10

4020-4D

1/2-20UNF

40

4

20

15

8500-9300/ 9500-10500

10000-11000

10500-11500

900

8

3020-6D

3/8-24UNF

30

6

20

15

8000-9000

/

/

600

9

3030-4D

M8 or M8 X 1

30

4

30

20

/

6200-6900

/

800

5

3535-2D

M8 X 1

35

2

35

25

/

/

4500-5000

600

9

3535-4D

M8 X 1

35

4

35

20

6600-7400

/

9000-10000

1000

4

3035-4D

1/2-20UNF

30

4

35

20

5500-6200

/

9200-10200

800

4

2535-4D

M8

25

4

35

25

3900-4300

/

/

500

4

3040-2D

M8

30

2

40

30

/

3400-3800

/

500

2

2540-4D

M8

25

4

40

30

4500-5300

/

/

500

3

2040-2D

M8

20

2

40

40

1100-1300

1150-1350

/

300

2
