Product Details

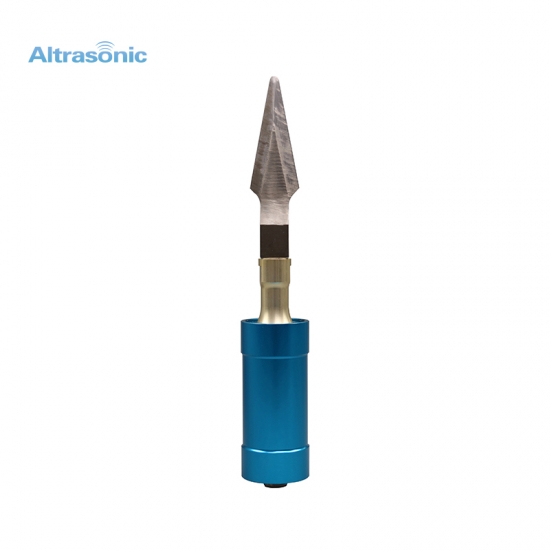

Newly Developed Ultrasonic Cutting Machine 25kHz 500watt Ultrasonic Cut Blade





Description

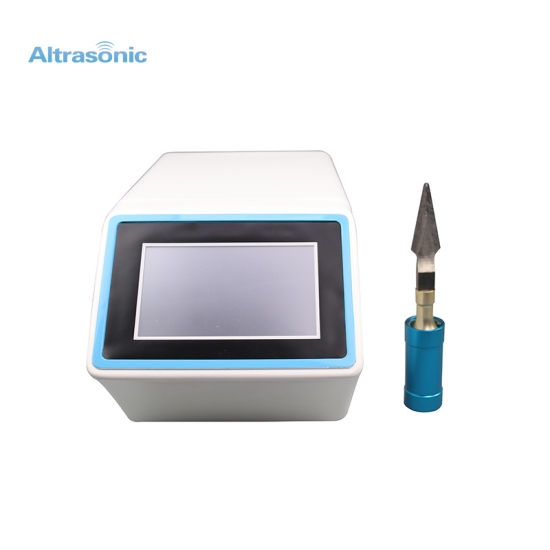

The 25kHz plastic cutting knife is equipped with an ultrasonic digital control generator, which can be connected to the signal output, and can be installed on an automated mechanical arm. The suitable cutting thickness is between 0-12mm, suitable for the processing of most thermoplastic materials, and will become very popular in the application market.


Specification



Item No.:

HS-C25

Frequency

25kHz

Output Power

500W

Generator

Digital generator

Operational mode

Pulse, Time, Continuous

Diameter

43 mm

Total length of probe

255 mm

Cable length

150-300 mm

Material of cutting blade

Steel

Cutting thickness range

0-12 mm

Temperature setting

0-300℃

Power regulation

1%-100%





Advantage:



1. High-speed cutting, no need to apply a lot of external force


2. Can be installed automatically, easy to control


3. Wide cutting thickness range, suitable for many materials


4. The special design of the cutter head conforms to the ergonomic design
