Multi Functional Househeld 100Watt Ultrasonic Blade

Multi Functional Househeld 100Watt Ultrasonic Blade

Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

  • Item No.:

    HS-C40
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    White
  • Shipping port:

    Ningbo or Shanghai
  • Product Details

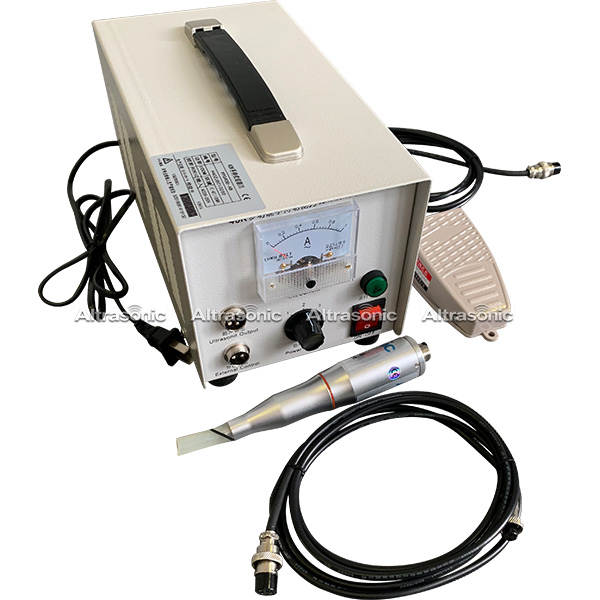

Multi Functional Househeld 100Watt Ultrasonic Blade



Specification:


 Item No.  HS-C40
 Frequency  40kHz
 Power  100Watt

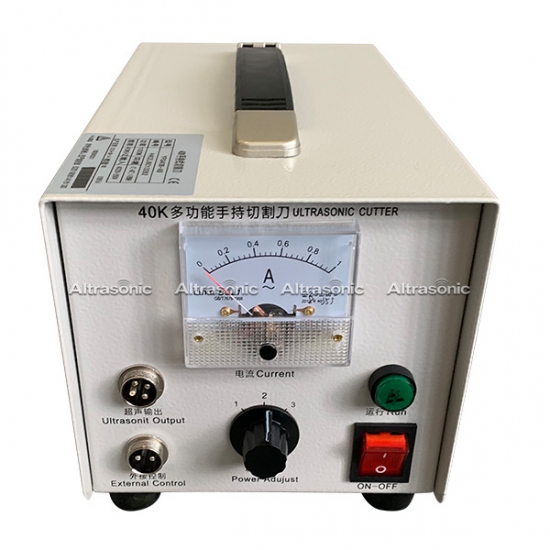

 Generator  Analog Generator, 155 x 265 x 170mm
 Handle  Φ32×170
 Voltage  110V/220V

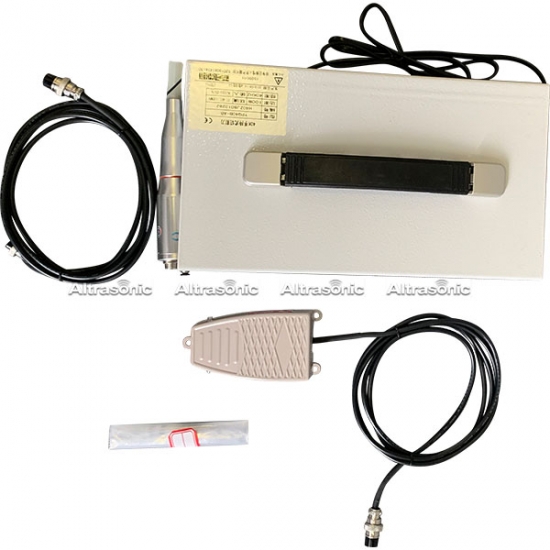

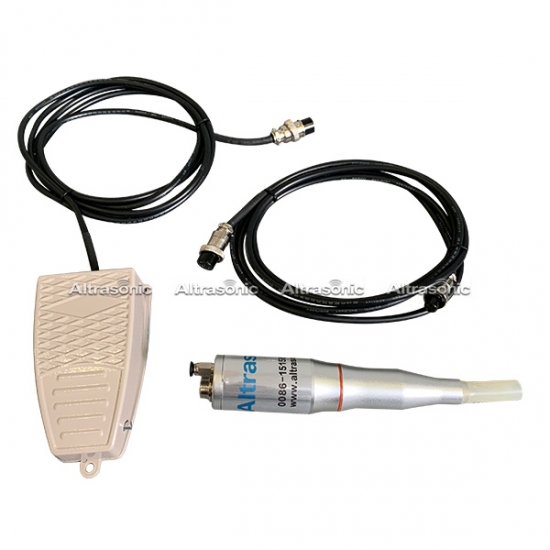

 Accessory  Foot switch: 1pc; Blade 25pcs or 5pcs
 Weight  8kg
 Length of Cables  3M
 Outer Skin  Aluminum


Application:


  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics

The following table presents the company tests for different material thickness, the recommended cutting speed data.


Cutting Material Thickness Cutting speed
ABS/PE 2mm 4mm/s
3mm 2mm/s
4mm 1mm/s
PVC 2mm 15mm/s
Asian gram force 2mm 3mm/s
Non-woven fabric 3mm 2mm/s
Chloroprene rubber 5mm Easy to cut
Corrugated paper 8mm Easy to cut
Plywood 2.5mm Easy to cut
Glass fiber resin 1.5mm Easy to cut
Thick cardboard 1.5mm Easy to cut
Linen 2mm Easy to cut
Urethane 3mm Easy to cut
Nylon/PP 3mm Easy to cut

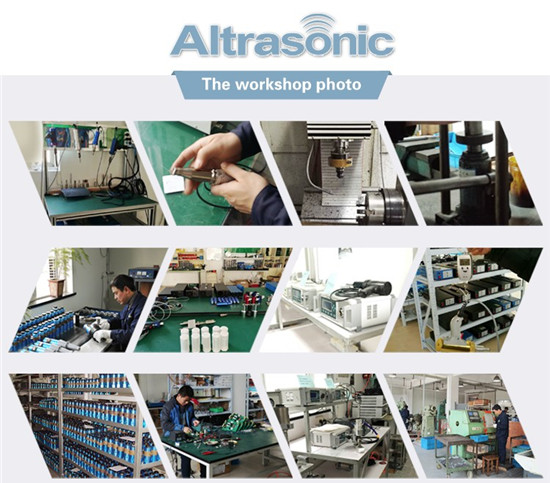

Processing Center:

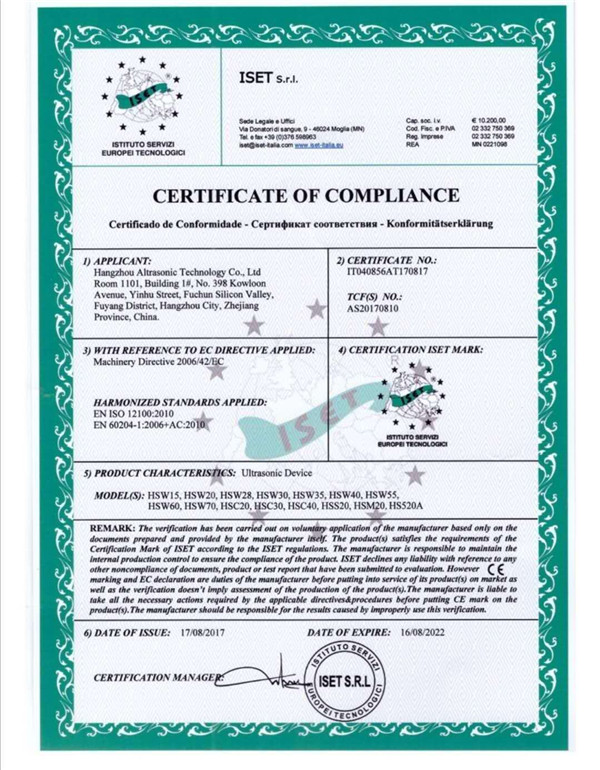

CE:


Shipping Method:


Payment Method:
