Ultrasonic Milling

Good finish processing machine , Ultrasonic assisted milling parts , shorten processing time

Good finish processing machine , Ultrasonic assisted milling parts , shorten processing time

Good finish processing machine , Ultrasonic assisted milling parts , shorten processing time

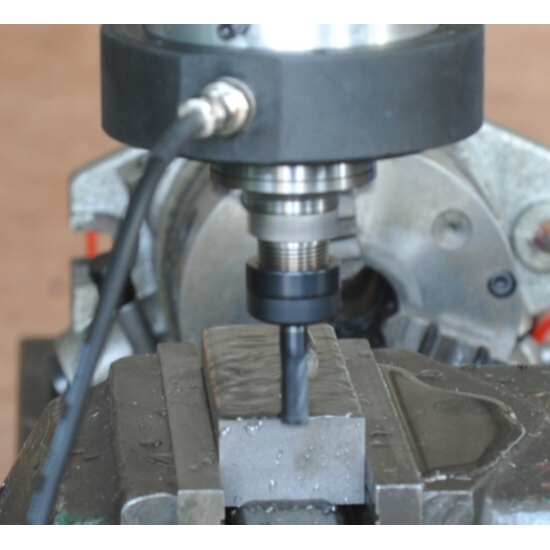

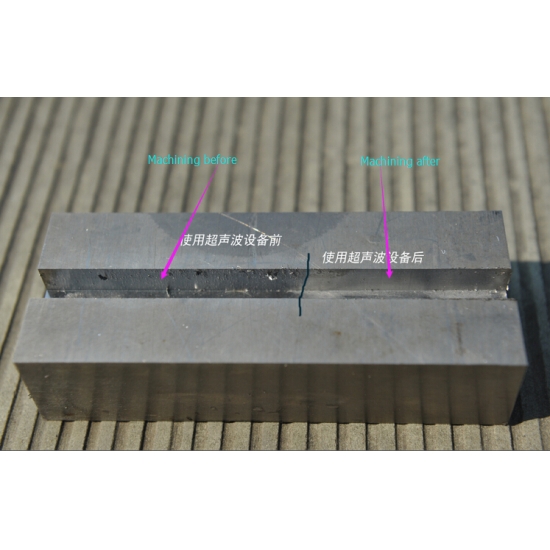

Ultrasonic milling has proven to be an effective technique for improving titanium, aluminum and stainless steel workability. Under the action of ultrasonic milling, it has more advantage than the traditional milling. In contrast to the effect of ultrasonic machining aluminum, steel, stainless steel, titanium four metallic materials.Improved surface quality of the most prominent is the titanium and aluminum, can improve the cutting ability of the most prominent is the stainless steel, the quality of the workpiece side is the most significant improvement in steel. In addition, for steel quenching after nearly HRC60, the traditional tool is difficult of steel cutting and processing cost is high, only when its hardness is higher than the work piece tool HRC25 above to processing. However, on the basis of traditional tools added to ultrasound, can greatly reduce the cutting of cutting resistance and improve cutting surface quality, but also increase the service life of the tool at least doubled.

  • Item No.:

    HS-M2010
  • Product origin:

    CHINA
  • Product Details



Parameters:



 Frequency  15-21khz
 Output power  500watt
 Voltage  110V / 220V
 Dimensions of digital generator  375*170*330mm
 Amplitude of the horn  more than 10um
 Speed   3000 REV/min
 Matching horn

 Milling cutter: Carbide cutter diameter 2-13

 Disc cutter: diameter 50 indexable

 Weight  20kgs
 Connecting horn modle  BT-40



Principle:



Ultrasonic machining process uses a power supply that converts conventional line voltage to 20KHz <%2
