Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.
Item No.:
HS-C40Payment:
T/T, West union, PaypalProduct origin:
ChinaColor:
WhiteShipping port:
Hangzhou or Shanghai
Effortless and 3 Seconds Ultrasonic Slicing Device used for Ultrasonic Cutting Technology
Specification:
Model | HS-C40 |
Frequency | 40KHZ |
Output Power | 100W |

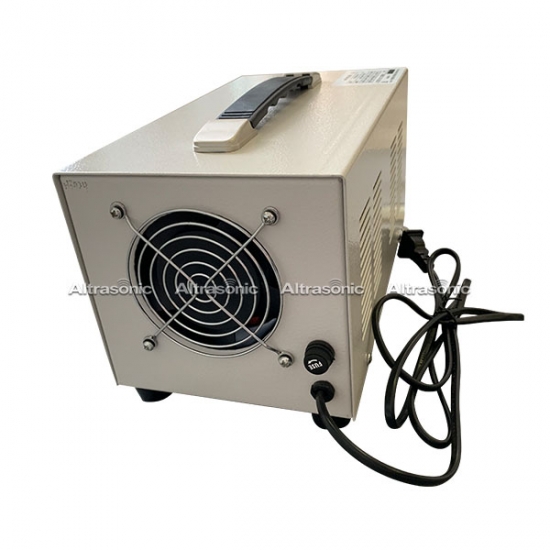

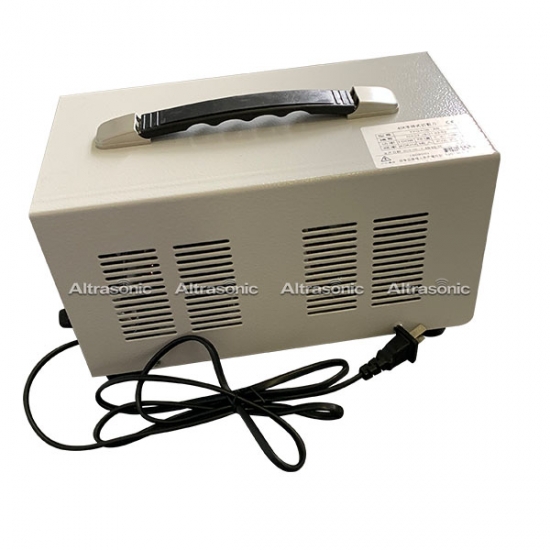

Generator | Analog generator, 155 x 265 x 170mm |
Handle | Φ32×170 |
Size of cutter | Blade replaceable |
Length of cable | 3M |
Outer skin | Aluminum |
Weight | 8KG |
Voltage | 220V / 110V |

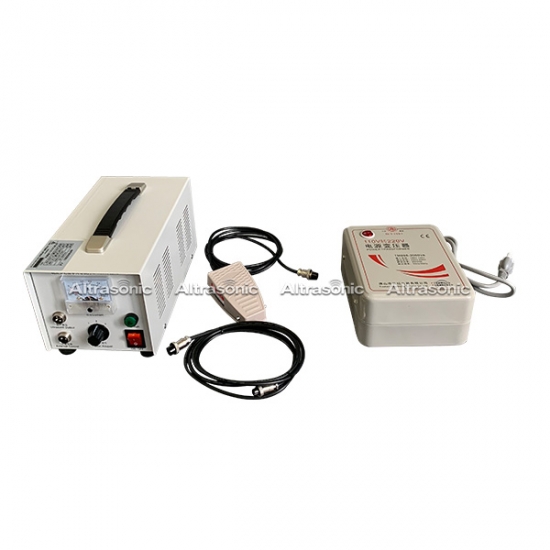

Accessory | Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc; Screw M3×4L 2pcs |
Material of cutter | titanium alloy, stainless steel |
Description:
Sound is a vibration that is transmitted through a medium, such as air, water, and metals. Ultrasonic waves are an "inaudible sound," the frequency of which generally exceeds 20 kHz. A 20-kHz frequency means that a certain medium vibrates 20,000 times per second.
The ultrasonic cutter vibrates its blade with an amplitude of 10 - 70 µm in the longitudinal direction. The vibration is microscopic, so it cannot be seen. The movement repeats 20,000 - 40,000 times per second (20 - 40 kHz). Because of this movement, the ultrasonic cutter can easily cut resin, rubber, nonwoven cloths, film, composite materials in which various products are superposed, and food.
Advantage:
1. No need the sharp knife and large push, no damage of plastic
2. Small frictional resistance, no cutting material stick to the blade
3. Safe operating, lower energy consumption, no noise
4. Fast cutting speed, save labor cost Easy operating ,easy installation
