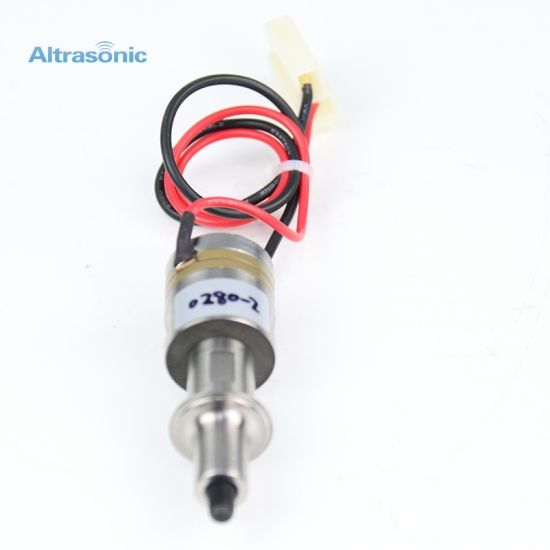

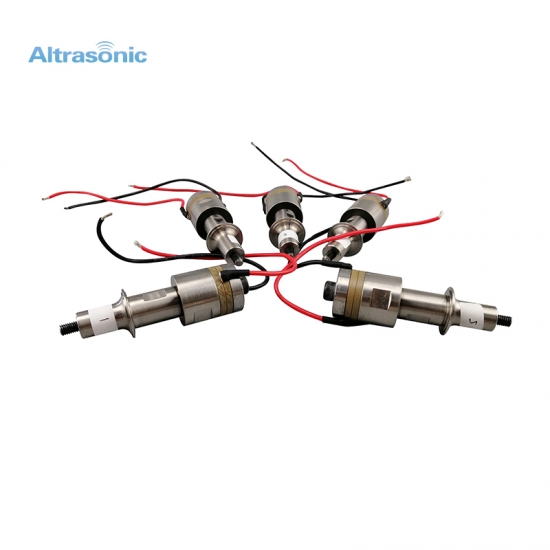

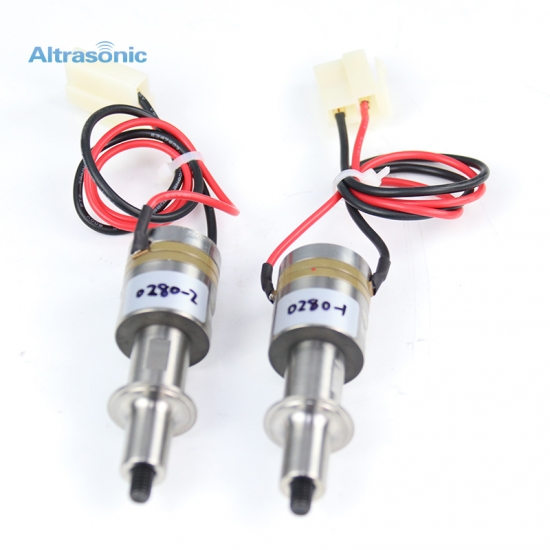

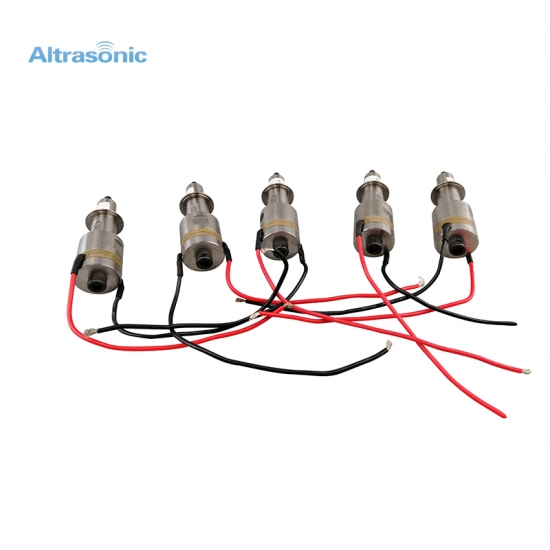

The 60khz transducer is a high frequency transducer, suitable for small plastic welding equipment, such as buried wire.
Item No.:
HS-1560-2ZPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Silver and BlackShipping port:
Shanghai or Ningbo
Specification:
Item No
HS-1560-2Z
Frequency
60 kHz
Power
100 watt
Joint bolt
M6*0.75
Ceramic dics diameter
15 mm
Ceramic dics quantity
2 pcs
Capacitance
0.7~0.8 nF
Amplitude
4 um
Application
Smart card coil wire embedding
Description:
An ultrasonic transducer is a device used to convert some other type of energy into an ultrasonic vibration. There are several basic types, classified by the energy source and by the medium into which the waves are being generated.
Advantages:
1. High efficiency: high mechanical quality factor, working at the resonance frequency point can obtain extremely high electro-acoustic conversion efficiency.
2. Large amplitude: The structure optimized by computer has high vibration speed ratio and large amplitude of the front cover.
3. High power: under the action of the pre-stressed screw, the energy of piezoelectric ceramics can be exerted to the greatest extent.
4. One by one testing to ensure that each transducer performance are excellent.
5. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
6. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
Workshop:
CE:
Shipping:
Payment:
