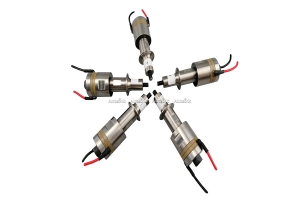

60 kHz Ultrasonic Transducer

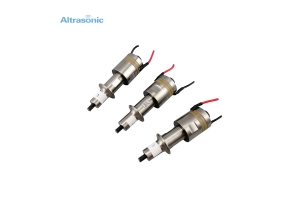

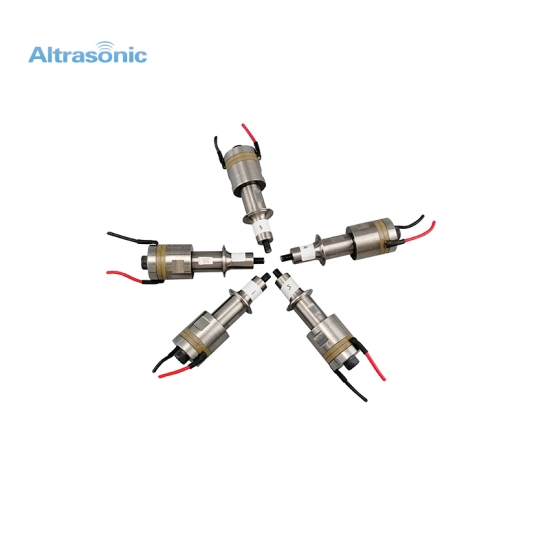

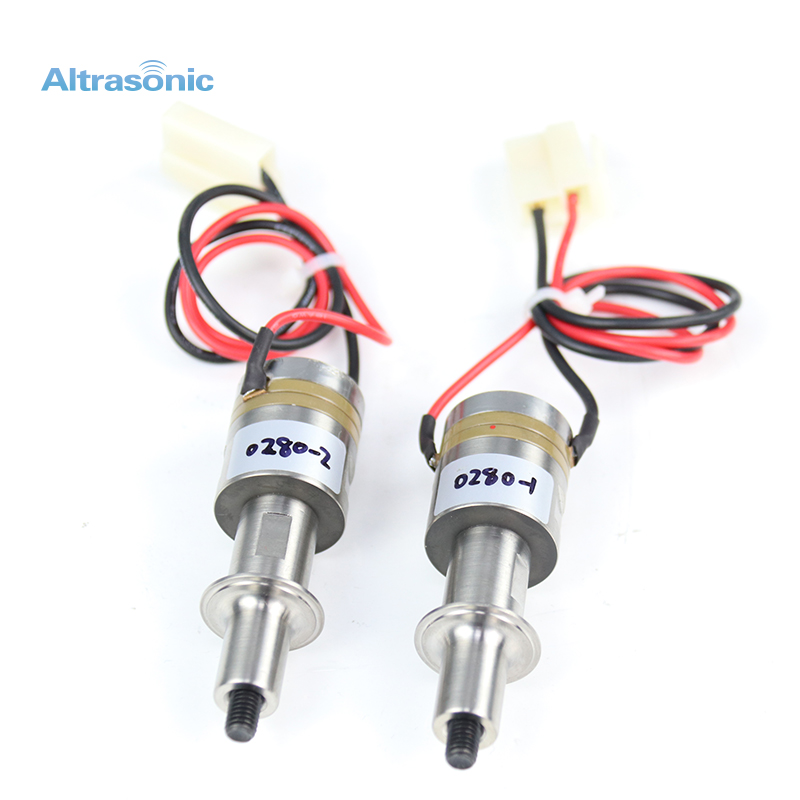

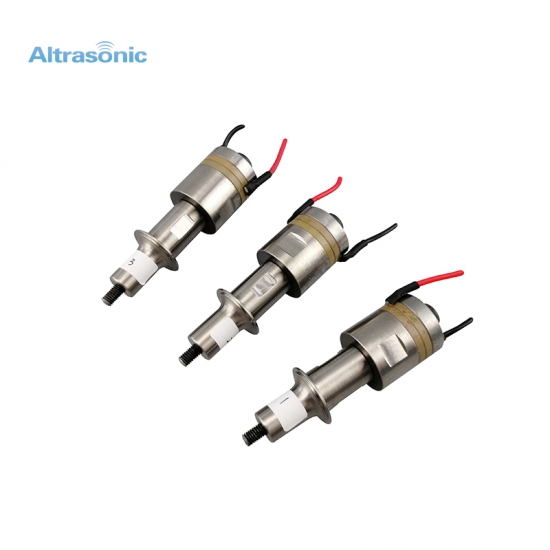

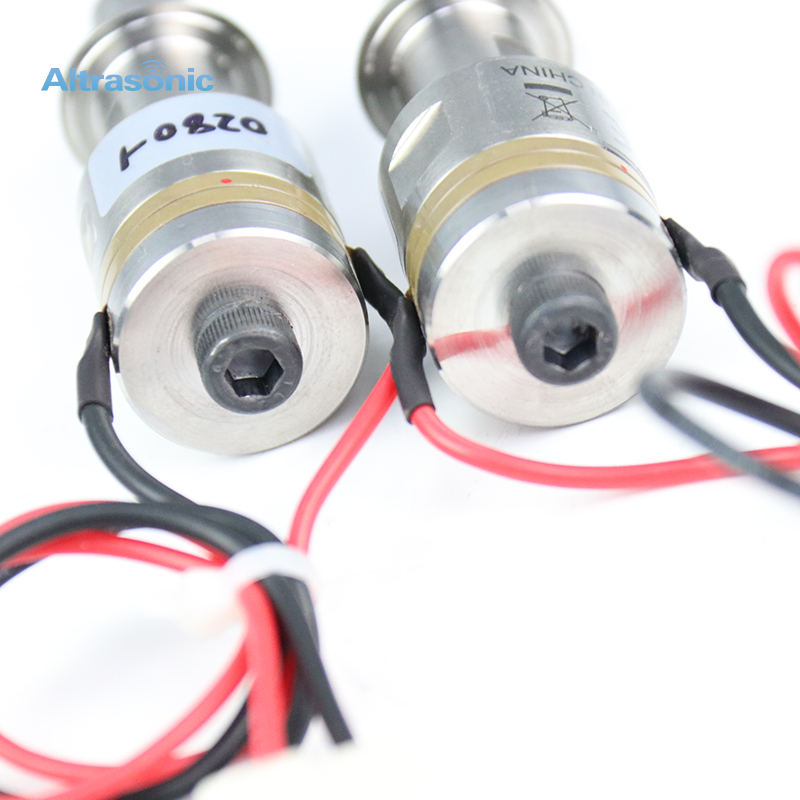

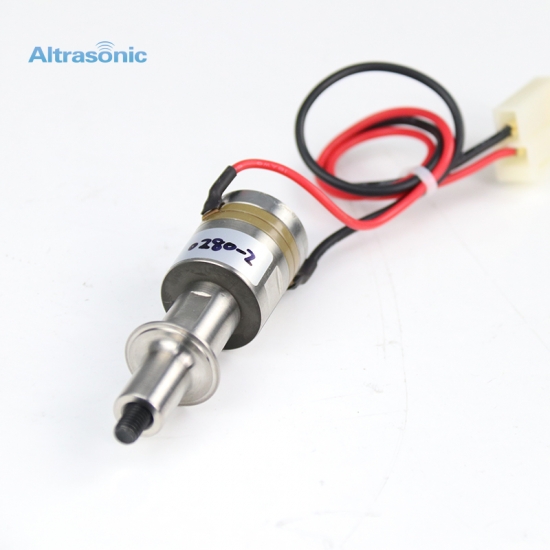

High frequency 60khz 100Watt ultrasonic transducer Ultrasonic electronic components buried wire machine

High frequency 60khz 100Watt ultrasonic transducer Ultrasonic electronic components buried wire machine

The 60khz transducer is a high frequency transducer, suitable for small welding equipment, such as buried wire.

  • Item No.:

    HS-1560-2Z
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


High frequency 60khz 100Watt ultrasonic transducer Ultrasonic electronic components buried wire machine


Specification:


 Item No  HS-1560-2Z
 Frequency  60 kHz
 Power  100 watt
 Joint bolt  M6*0.75
 Ceramic dics diameter  15 mm
 Ceramic dics quantity  2 pcs
 Capacitance  0.7~0.8 nF
 Amplitude  4 um
 Application  Smart card coil wire embedding



Description:

Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is a professional equipment used for smart card embedding, which is used in sheet welding positioning and antenna embedding. It is in recent years One of the important applications in the RFID field.



Advantages:



1. High efficiency: high mechanical quality factor, working at the resonance frequency point can obtain extremely high electro-acoustic conversion efficiency.

2. Large amplitude: The structure optimized by computer has high vibration speed ratio and large amplitude of the front cover.

3. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.





Workshop:



CE:



Shipping:




Payment:
