The blade of the transducer can be replaceable. When you cut or weld some materials, you will feel very easy with our ultrasonic machine. It can be labor-saving and it won't break the material's edge.
Item No.:
HS-B4THPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
5

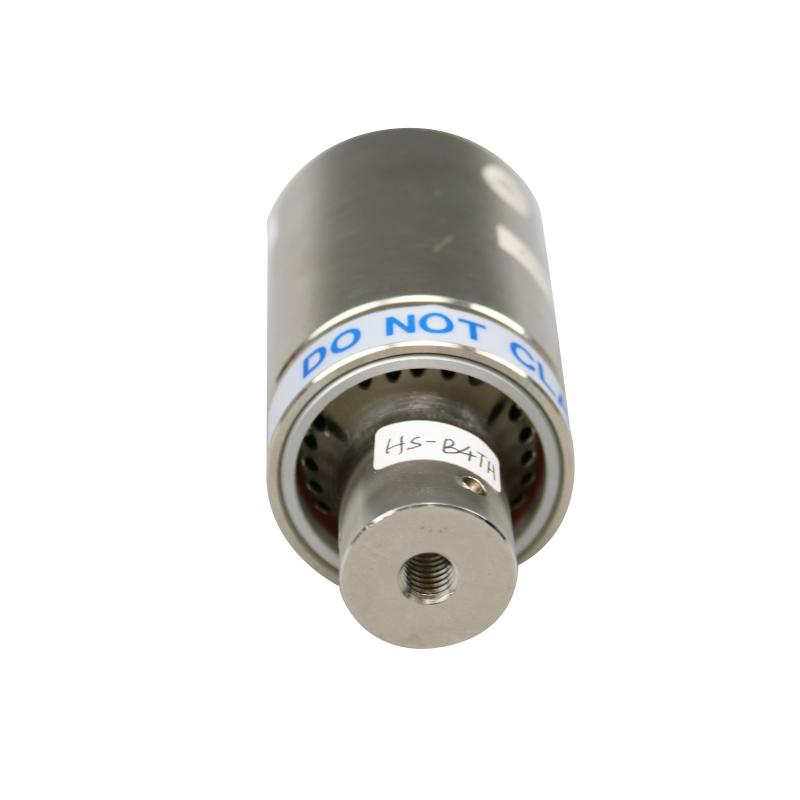

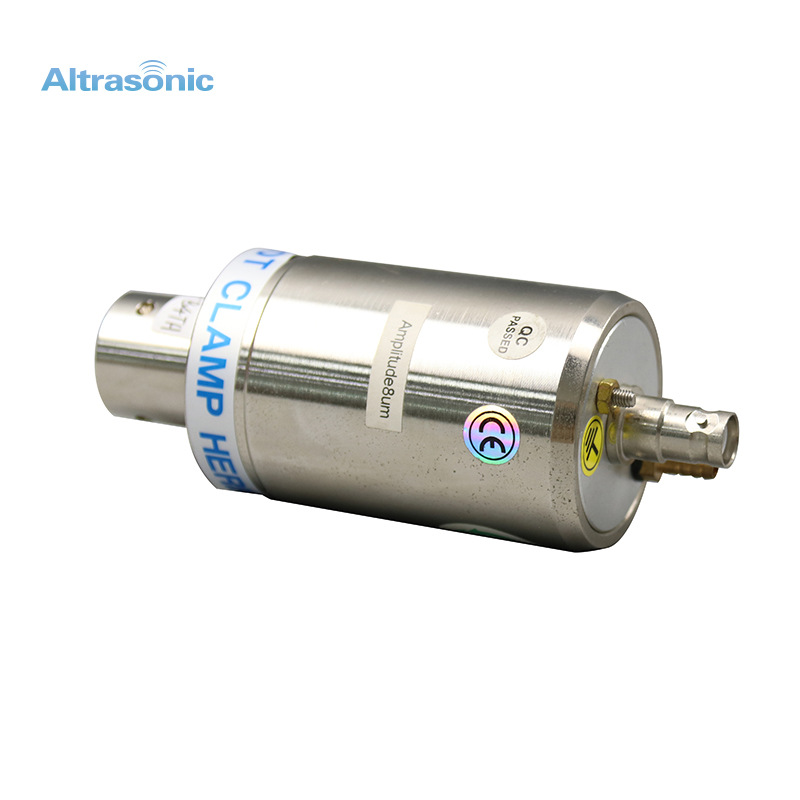

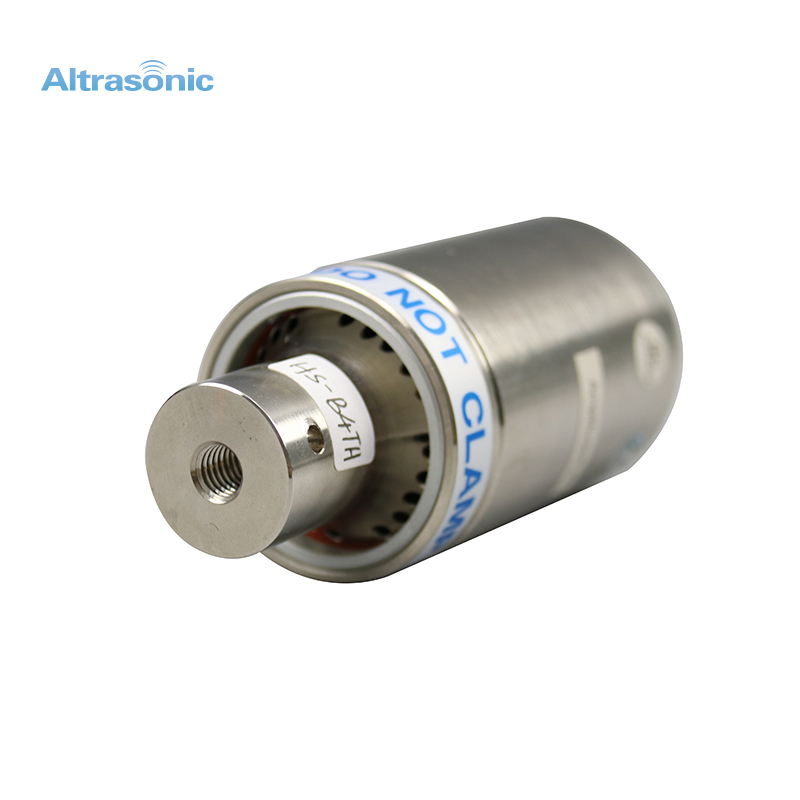

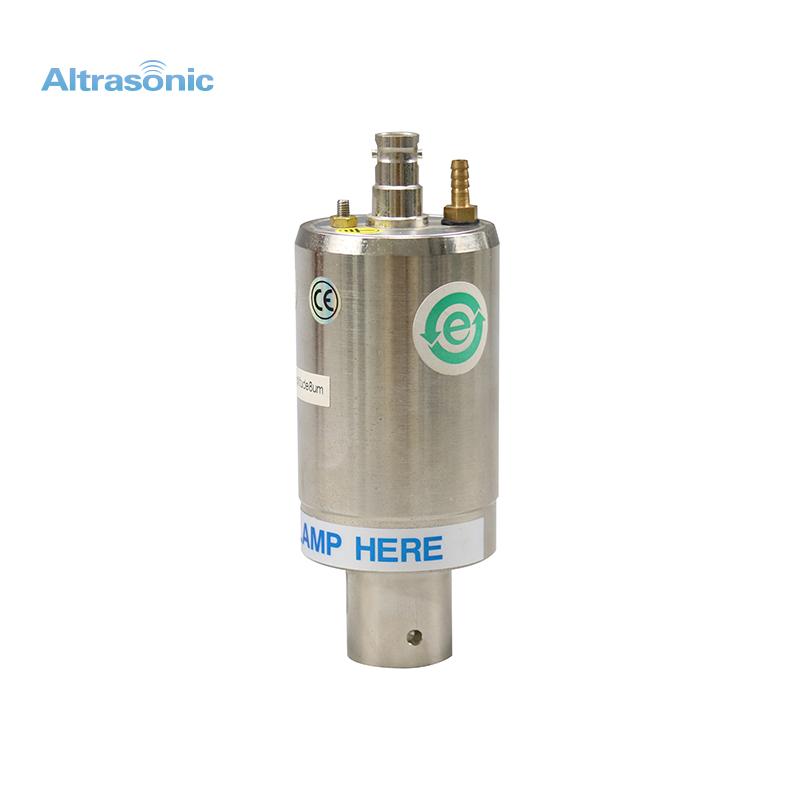

500 W Branson Replacement High Frequency Ultrasonic Converter
Specification:
Item No
HS-B4TH
Frequency
40 kHz
Power
500 watt
Connect screw
M8
Diameter of ceramic
25 mm
Quantity of ceramic
4 pcs
Capacitance
4.5-5.3nf
Description:
Ultrasonic welding transducer is one of main products of Altrasonic, which used the piezoelectric effort to realize transduction between electric and sound energy. Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter. The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
Workshop:
CE:
Shipping:
Payment:
Previous :
4 ceramic pcs Ultrasonic Converter 500 W For Replacement Branson 4THNext :
40kHz Ultrasonic Welding Transducer Replacement Branson 4THIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
