Home Ultrasonic Sewing Machine

35kHz Sewing Machine

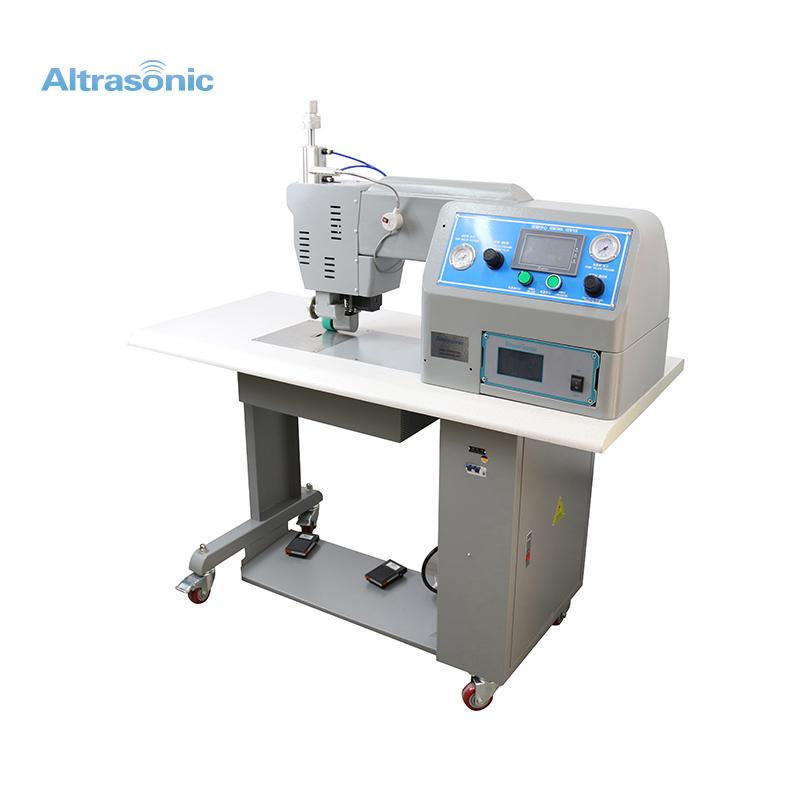

35kHZ Ultrasonic Sewing Machine for Non-woven Material Sealing And Cutting

35kHZ Ultrasonic Sewing Machine for Non-woven Material Sealing And Cutting

35kHZ Ultrasonic Sewing Machine for different material with warranty for one year,Customizable titanium alloy roller

  • Item No.:

    HS-WS35-A
  • Payment:

    T/T, Western Union,PayPal
  • Product origin:

    China
  • Shipping port:

    ShangHai、NingBo
  • Lead Time:

    7
  • Product Details

35kHZ Ultrasonic Sewing Machine for Non-woven Material Sealing And Cutting





Product introduction

The work method of Seamless sewing part is completely imitating traditional sewing machine.  The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth.  Which will make the sewed point of the cloth are even, flat and fastness.  Through suitable design, it can reach perfect sewing effectiveness.


Specifications:

Model

HS-WS35-A

Frequency

35 KHz

Power

800-1000 W

Rotary Welding Horns Width

12 mm

Power Adjust Method

File or Continuous

The Horns Surface Hardness

More than HRC56

Rate electricity

6A

Jointing Width

1-5mm

Jointing Speed

1-10m/min

Working air pressure

3-4kg/cm2

Exterior Dimension

1300(L)*600(W)*1100(H)mm

Net weight

99kgs




Applications:



Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
