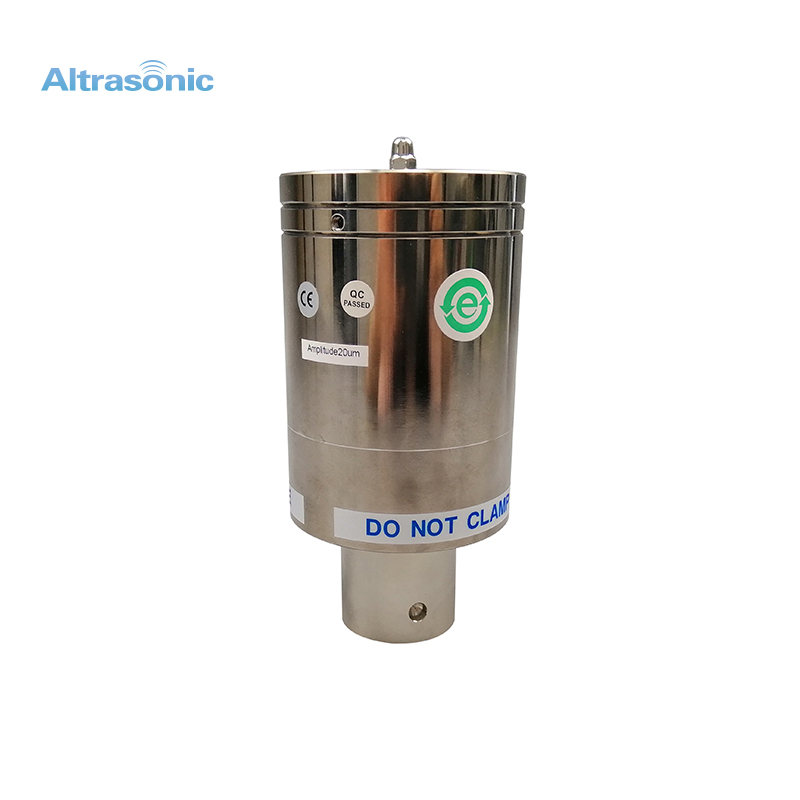

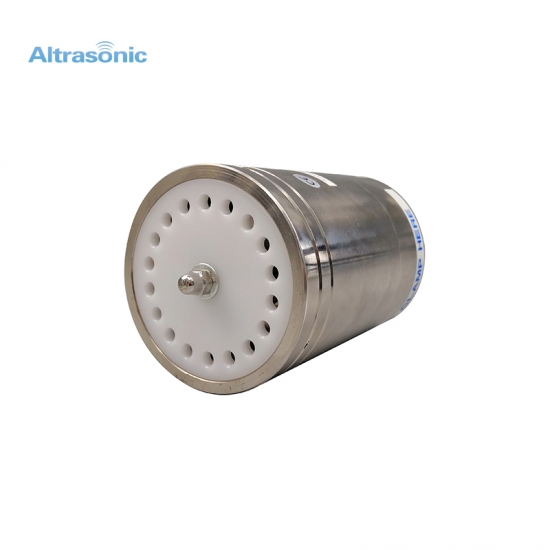

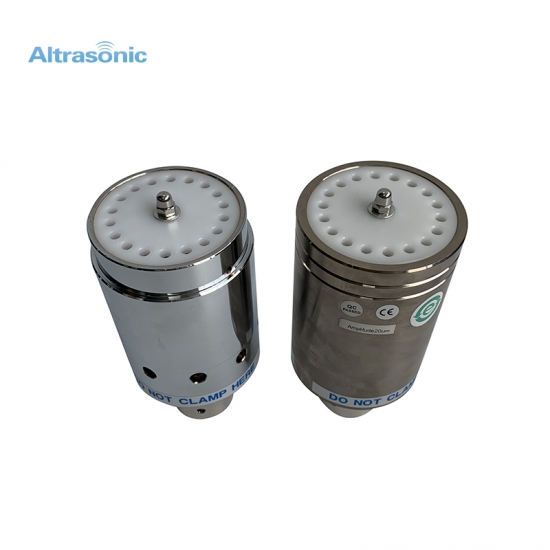

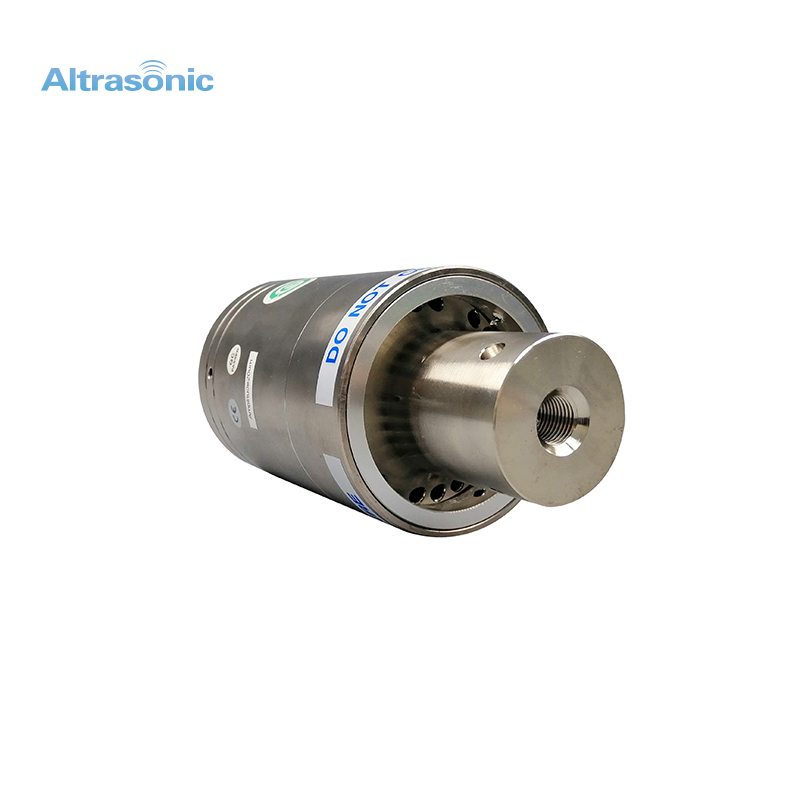

High quality replacement of Branson CJ20 ultrasonic welding transducer.
Item No.:
HS-BCJ20Payment:
T/T, PayPal, Western UnionPrice:
$699/PCProduct origin:
ChinaColor:
SilverShipping port:
Shanghai or Ningbo
3300w high power output branson ultrasonic transducer replacement CJ20 plastic welder parts
Specification:
Item No
HS-BCJ20
Frequency
20 kHz
Power
3300 watt
Ceramic diameter
50 mm
Ceramic quantity
6 pcs
Resistance
10 Ω
Capacitance
20000 pF
Color of ceramic
Yellow
Description:
We provide high quality ultrasonic welding transducers, frequency range 15khz to 70khz, with power maximum 6000watt.
We also provide replacement of Branson, Dukane and Herrmann type transducer, could well match original plastic welder machine.
If you need a free consultation, pls kindly click “contact now”, our engineer will reply you immediately.
Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
