Ultrasonic Plastic & Fabric Cutting Machine

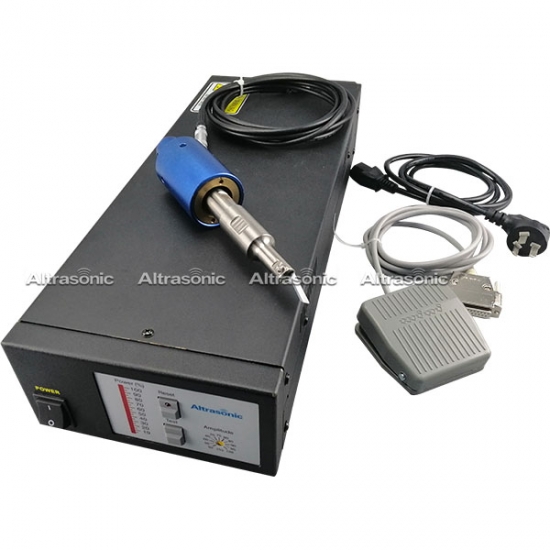

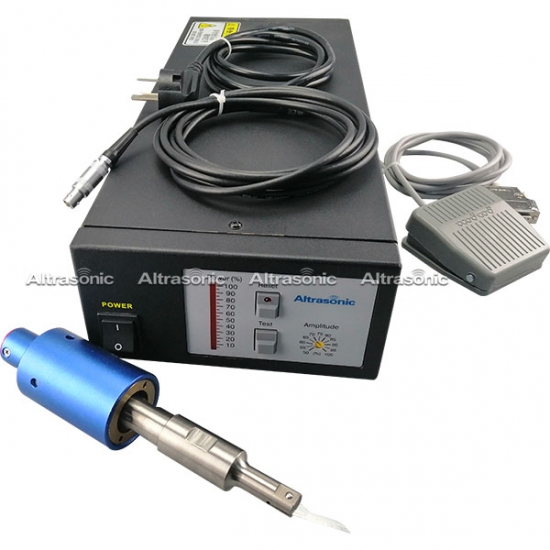

30khz Ultrasonic Handheld Knife with Less Cutting Chips and Dust

30khz Ultrasonic Handheld Knife with Less Cutting Chips and Dust

Especially impressive is the broad range of plastics which can be processed with our technology. From delicate foils with the smallest thickness, over highly elastic materials which require extremely sharp knifes, to hard and brittle materials.

  • Item No.:

    HS-C30
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Black and Blue
  • Shipping port:

    Ningbo or Shanghai
  • Product Details


30khz Ultrasonic Handheld Knife withless Cutting Chips and Dust





Specification:



Item No. HS-C30
Frequency 30kHz
Output Power 500W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade Stainless steel

Description:

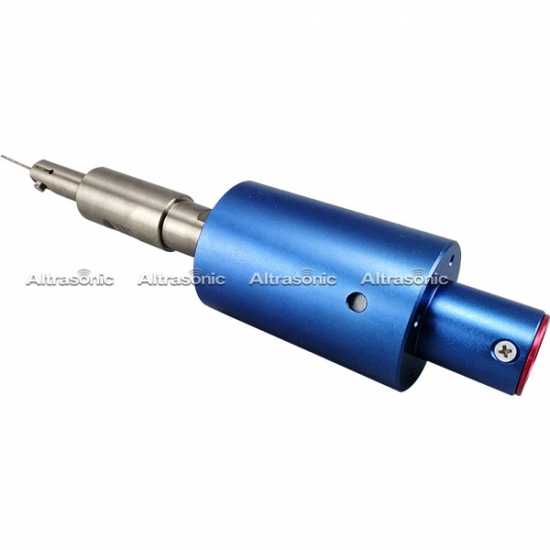

The HS-C30 replaceable ultrasonic hand-held cutter is ideal for long-term hand-held cutting. The transducer features compact size, but powerful performance thanks to the high frequency drive, thereby ensuring sharp cutting. The user-friendly design of shape enables to fully utilize the robot’s operation area. A wide range of materials, including newly-developed composite materials, rubber, and leather, can be cut freely with low processing pressure.





Application:



Mainly used in many kinds of plastic materials,such as: ABS PE, PVC, Acrylic, Nonwovens, Chloroprene Rubber, Corrugated Paper, Polywood, Glass Fiber Resin, Thick Cardboard, Linen (linoleum), Urethane, Nylon, PP, etc.
