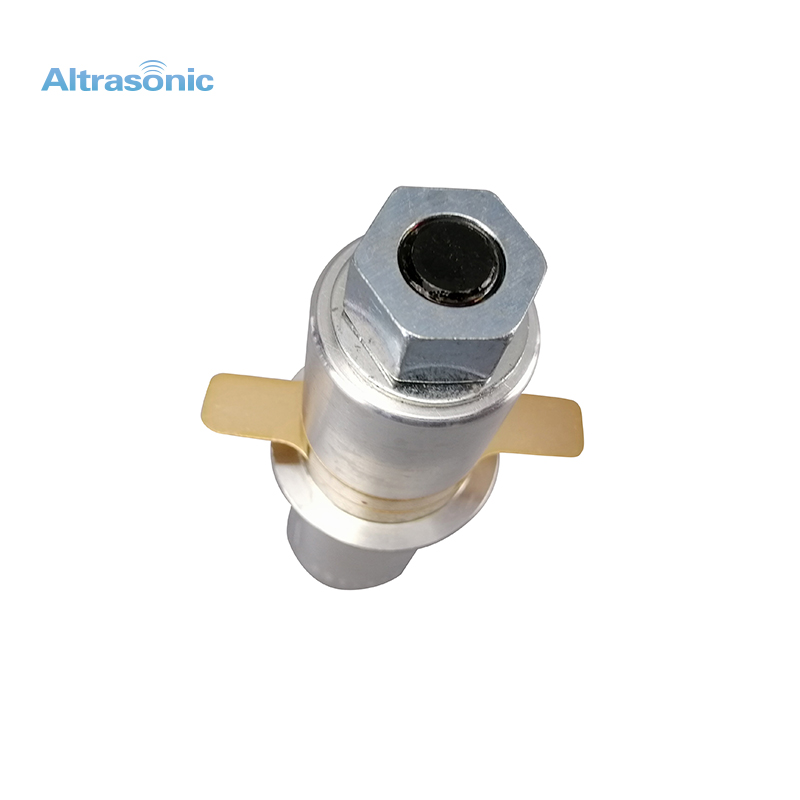

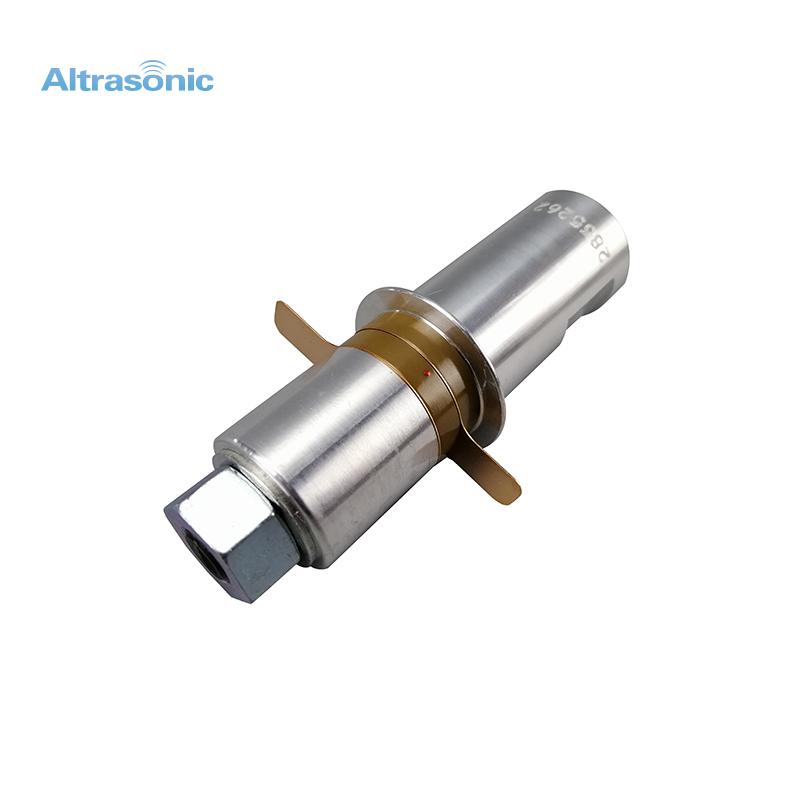

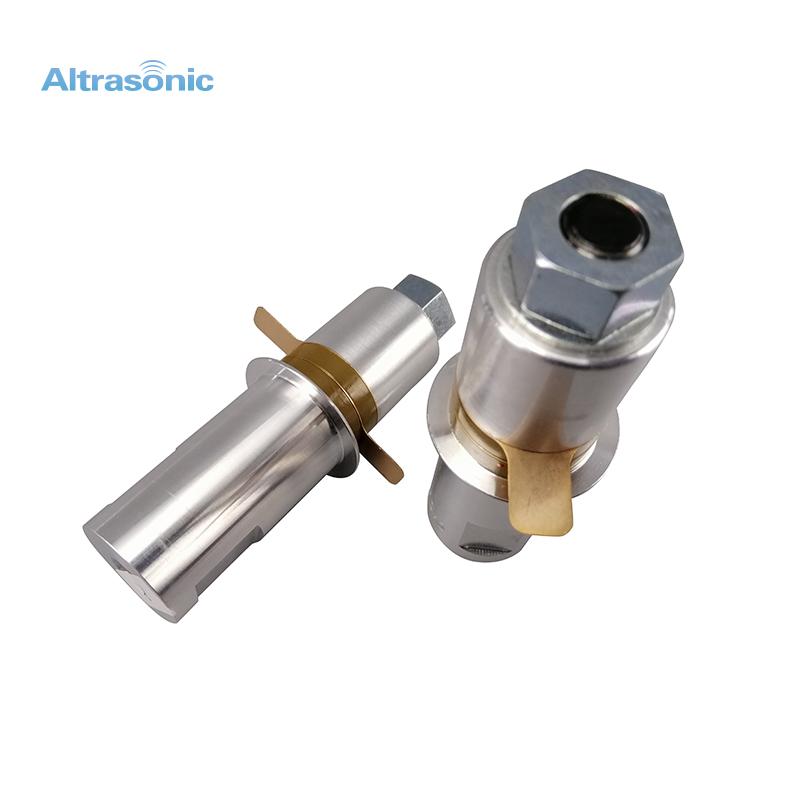

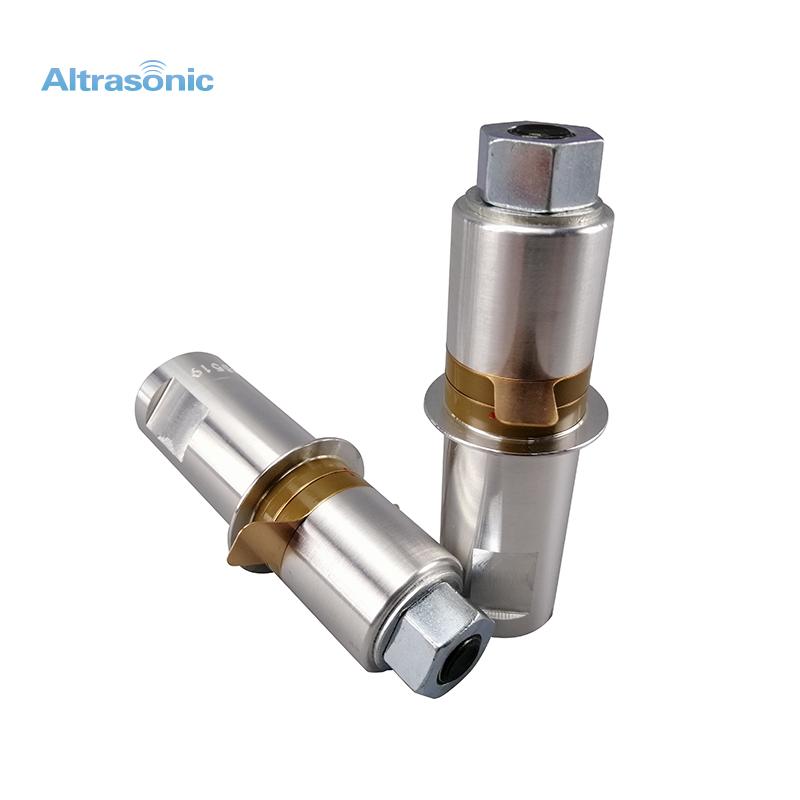

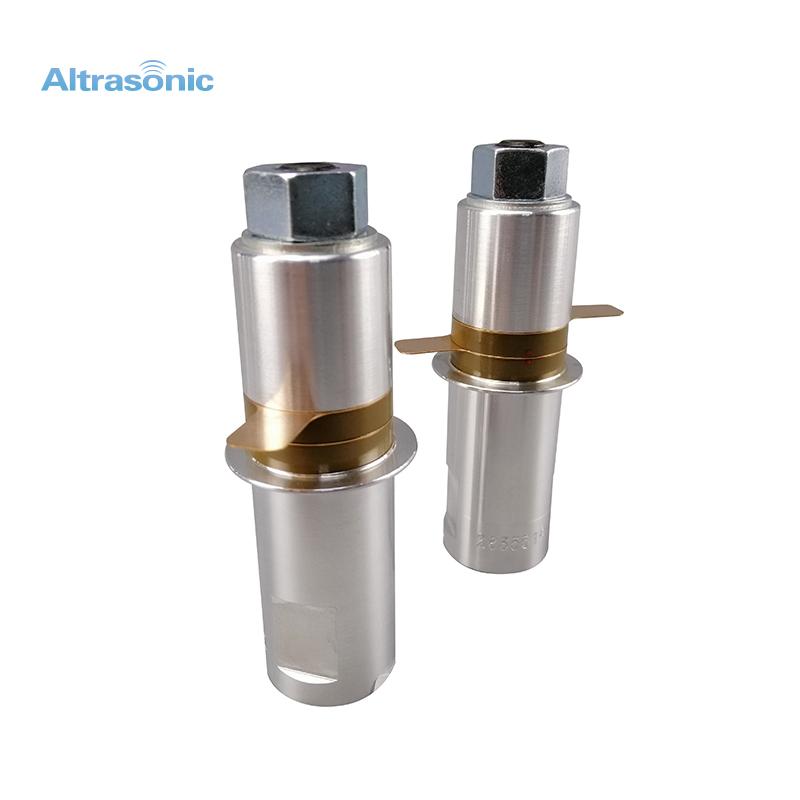

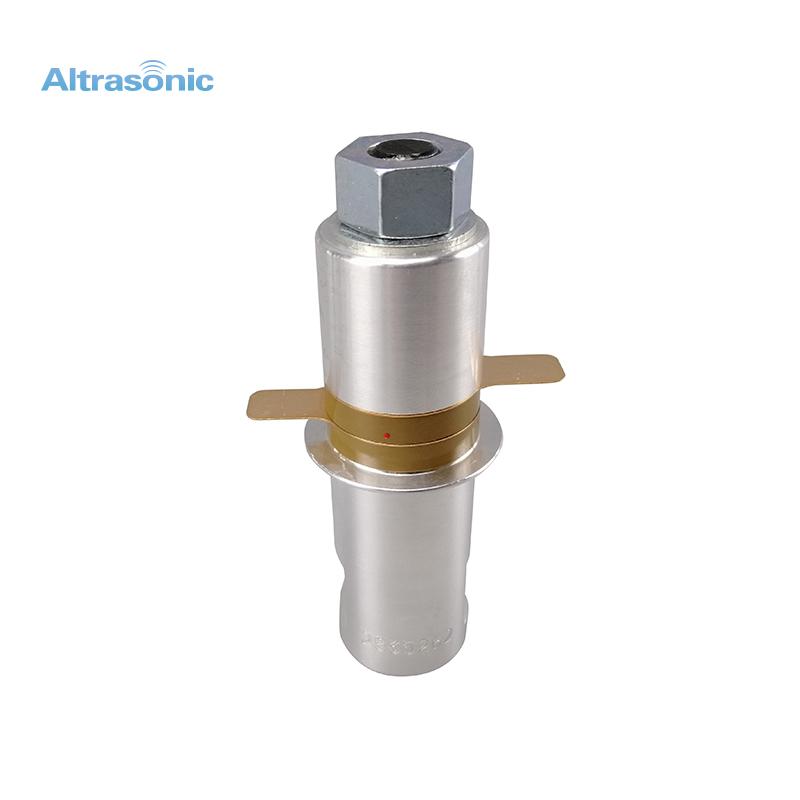

28kHz 800watt Ultrasonic Transducer Converter For Spot Welding Machine Booster

The core of the ultrasonic transducer is the piezoelectric ceramic sheet.

Item No.:
HS-3528-2Z
Payment:
T/T, Paypal, Western Union
Product origin:
China
Goods_stock:
100
Shipping port:
Shanghai, Ningbo
Lead Time:
7

Product Details

28kHz 800watt Ultrasonic Transducer Converter For Spot Welding Machine Booster

Specification:

Model	HS-3528-2Z
Frequency	28kHz
Output Power	800watt
Joint Bolt	2/1-20UNF
Ceramic Disc Diameter	35mm
Quantity of Ceramic Discs	2 pcs
Capacitance	7.6-8.5nF

Description:

1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained
when working in resonance frequency.

2. Big amplitude: designed and chosen by computer, high rate in oscillation speed and
big amplitude in front operculum.

3. Big Power: under the function of the pre-stressed force screw rod, the piezoelectricity
ceramics can work freely in the highest level of power.

Applications:

Ultrasonic transducers are widely used, and they are divided into industry, agriculture, transportation, life, medical care and military according to the application industries. According to the realized functions, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, living body, etc.; according to its nature, it is divided into power ultrasonic, detection ultrasonic, ultrasonic imaging, etc.
