28 kHz Ultrasonic Transducer

28Khz High Output Ultrasonic Converter For Ultrasonic Polishing / Laminating Machine

28Khz High Output Ultrasonic Converter For Ultrasonic Polishing / Laminating Machine

High Output  NTK Type Ultrasonic Converter 28Khz 800W For Ultrasonic Polishing / Laminating Machine

  • Product origin:

    China
  • Product Details

High Output Ultrasonic Converter For Ultrasonic Polishing / Laminating Machine

Specifications:


Model

3828-4z

Frequency

28khz

Output power

800watt

Joint bolt

1/2-20unf

Ceramic disc Diameter

38 mm

Quantity of Ceramic discs

4 pcs

Capacitance

7.6~8.5 nf ,

Amplitude

6um

Application

Welding,Laminating


Description:


The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Specifications:


 The columnar type NTK TYPE (stabilized power and high reliablity widely application)

Item No.

Connect

screw (Size)

Ceramic

diameter

(mm)

Quantity of

Ceramic

 (pc)

Resonance

frequency

 (khz)

Resistance

 (Ω)

Capacitance

Input

power

(W)

Max.

Amplitude

(um)

Yellow

Grey

Black

7015-4Z

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

10

6015-4Z

M20 X 1.5

or M16 X 1

60

4

15

15

8000-10000

10000-12000

12500-13500

2200

10

6015-6Z

M20 X 1.5

60

6

15

15

14000-16000

/

19500-21000

2600

10

5015-4Z

M18 X 1.5

50

4

15

15

12000-13000

13000-14300

15000-17000

1500

8

4015-4Z

M16 X 1

40

4

15

15

10000-11000

10500-11500

700

8

5520-4Z

M18 X 1

55

4

20

15

10000-11000

10500-11500

14300-20000

2000

8

5020-6Z

M18 X 1.5

50

6

20

15

18500-20000

/

22500-25000

2000

8

5020-4Z

M18 X 1.5

50

4

20

15

11000-13000

13000-15000

15000-17000

1500

8

5020-2Z

M18 X 1.5

50

2

20

20

6000-6500

6500-7000

8000-9000

800

6

4020-4Z

1/2-20UNF

40

4

20

15

9000-10000

9500-11000

/

900

6

4020-2Z

1/2-20UNF

40

2

20

25

/

4800-5500

/

500

5

5025-2Z

M12 X 1

50

2

25

25

5000-5600

/

7000-8000

500

4

3828-2Z

1/2-20UNF

38

2

28

30

3800-4300

/

/

500

3

3828-4Z

1/2-20UNF

38

4

28

30

7600-8500

/

10500-12000

800

4

3028-2Z

3/8-24UNF

30

2

28

30

2700-3100

3400-3800

/

400

3

2528-4Z

M8 X 1

25

4

28

30

3900-4300

/

/

400

4

2528-2Z

M8 X 1 or

3/8-24UNF

25

2

28

35

1950-2200

2200-2500

/

300

3

3030-4Z

M10

30

4

30

30

/

6200-6900

/

700

4

3035-2Z

3/8-24UNF

30

2

35

40

2700-3100

/

/

500

2

3035-4Z

M10 X 1

30

4

35

30

5000-6200

/

/

800

3

2535-2Z

M8 X 1

25

2

35

40

1900-2200

/

/

400

2

2540-2Z

3/8-24UNF

25

2

40

40

/

2000-2300

/

500

2

3040-4Z

M10

30

4

40

30

5500-6200

/

/

1000

2

3050-4Z

M8

30

4

50

30

5500-6200

/

/

600

2

1560-2Z

M6 X 0.75

15

2

60

60

/

/

700-800

100

1

1070-2Z

M4

10

2

70

200

/

/

350-400

100

1

  PS:we can also customize depend on your requirements.


Applications:

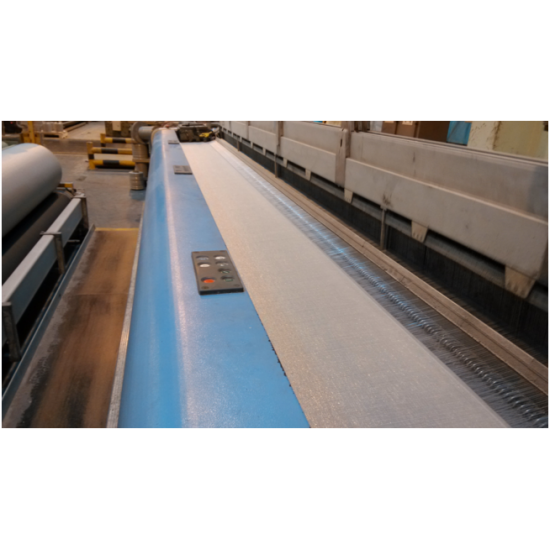

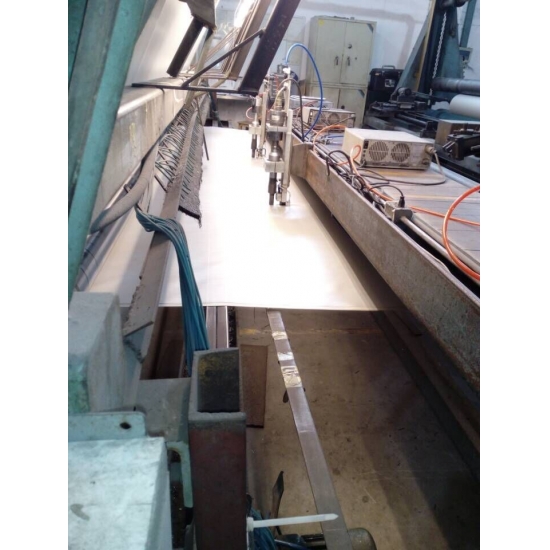

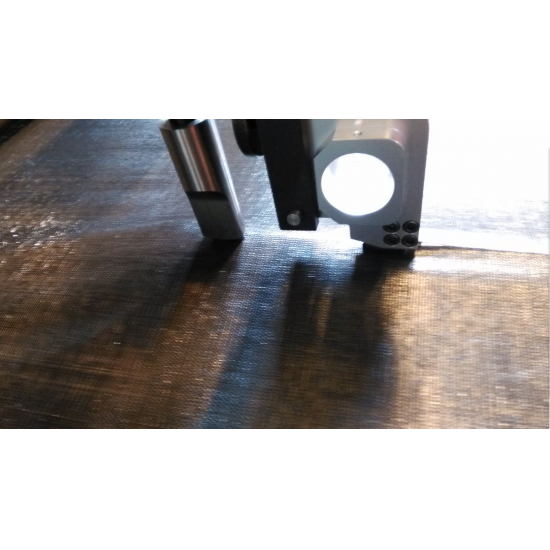

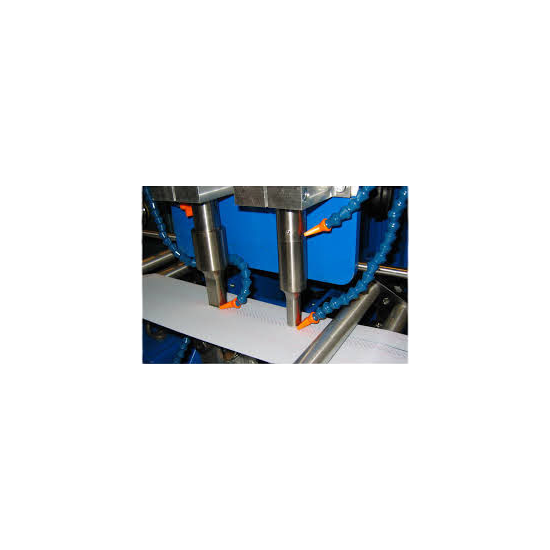

Laminating of nonwoven materials using ultrasonics

The general principle of ultrasonic welding can also be applied to nonwoven materials. The thermoplastic fibers are activated by mechanical vibrations thus melting and bonding in pre-defined patterns. A weld tool, referred to as Sonotrode, transmits the vibration into the nonwoven material. In industrial applications, ultrasonic frequencies between 20 and 35 kHz are common, with amplitudes (tool travel distances) of 10 µm to 50 µm. Processing of nonwoven materials is often performed in continuous processes at high web speed. By application of rotary tools, it is possible to achieve processing speeds of up to 800 meters/minute. A specifically engraved drum is used as welding, embossing, or cutting anvil. The contour of the anvil drum focuses the energy and precisely defines the weld spots required for the respective product.

Competitive Advantage:


Laminating of various layers

Embossing

Separating and seaming of edges

Perforating of web material

With welding of web material it is important to keep the distance between the material and the sonotrode consistent. Only then good and uniform results are possible. To ensure this, we offer a patented machine controller. It controls the travel movement of the actuator or the sonotrode via a stepper motor with very high position resolution and thus achieves that the thermally caused change at the ultrasonic tool is compensated and the force between the sonotrode and the anvil drum with contour is always kept consistent.
