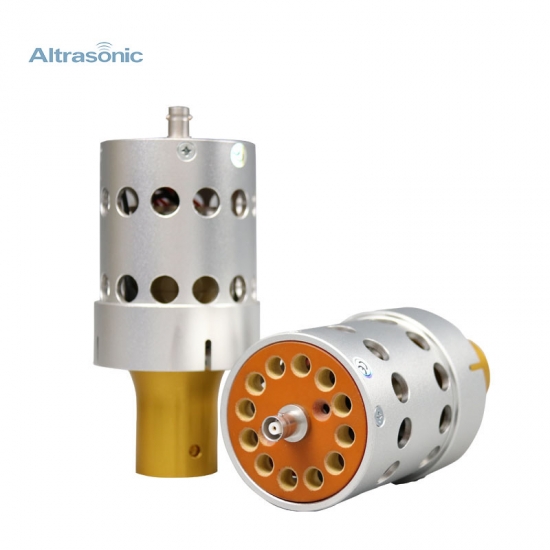

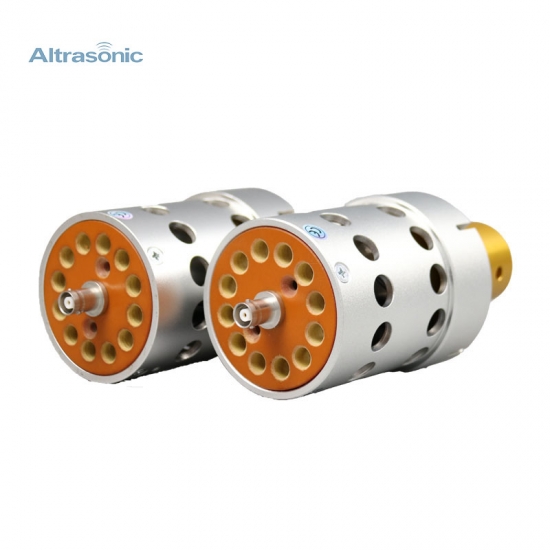

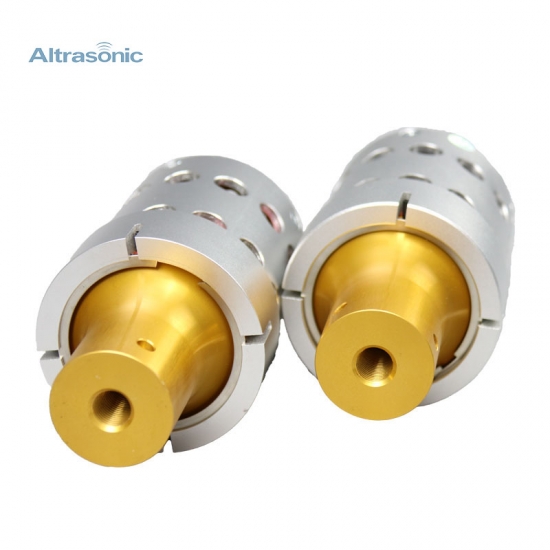

20khz Ultrasonic Converter Replacement of Dukane 41C30 Welding Transducer

20khz Ultrasonic Converter Replacement of Dukane 41C30 Welding Transducer

With high quality and well match with Dukane Type ultrasonic welder.

  • Item No.:

    HS-D41C30
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


20khz Ultrasonic Converter Replacement of Dukane 41C30 Welding Transducer



Specification:


 Item No  HS-D41C30
 Frequency  20 kHz
 Power  2000 watt
 Joint bolt  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Capacitance  11~17 nF
 Amplitude  20 um
 Application  Plastic welding machine



Applied Range:



Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.




What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
