20kHz 5000watt Ultrasonic Metal Welder Copper Wire Harness Welding Machine

20kHz 5000watt Ultrasonic Metal Welder Copper Wire Harness Welding Machine

Ultrasonic wire harness welding machines are widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields.

  • Item No.:

    HS-2050A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

20kHz 5000watt Ultrasonic Metal Welder Copper Wire Harness Welding Machine



Specifications:


 Item No  HS-2050A
 Frequency  20 kHz
 Power  5000 watt
 Welding area  0-35 mm²
 Working air pressure  0.05-0.9 MPa
 Weight  55 KG
 Generator size  500*400*160 mm
 Machine size  600*200*260 mm


Structure:

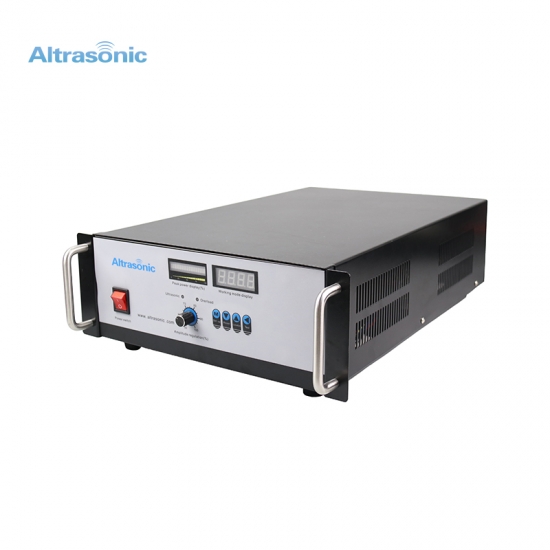

The ultrasonic harness welding machine consists of two parts: a machine and an ultrasonic power generator.


1. Machine The machine is composed of a case, a guide post, a transducer, a pneumatic system, a PC circuit, and a bottom mold.


2. Acoustic component The acoustic component is composed of transducer and welding head. The transducer adopts piezoelectric vibrator, whose function is to convert electrical energy into mechanical vibration. The converter is analogous to the transformer in the circuit, which plays the role of mechanical damping transformation and amplitude amplification. The welding head is designed according to the welding requirements and the shape of the weldment. It also plays a role of secondary impedance transformation and amplitude amplification. In terms of structure and shape, the welding head is not complicated, but it needs the best design, the best materials and good processing technology. Welding heads with complex shapes and large sizes are difficult to design, and they are generally designed by manufacturers.


3. Air pressure system The air pressure system is powered by compressed air, through the solenoid valve switching circuit, pushing the cylinder piston to drive the welding head to move up and down. Use a pressure regulating valve to control the air pressure, and a one-way throttle valve to control the lifting speed.



Application:


Mainly used in automobile wiring harness connecting wire lap welding, wire head forming, wire mutual welding, and multiple wires are connected in parallel to form a wire knot.

Ultrasonic wire harness welding machines are widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and meters.





Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
