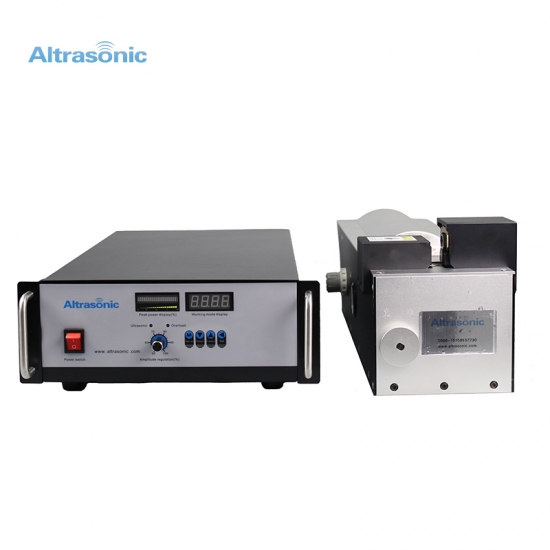

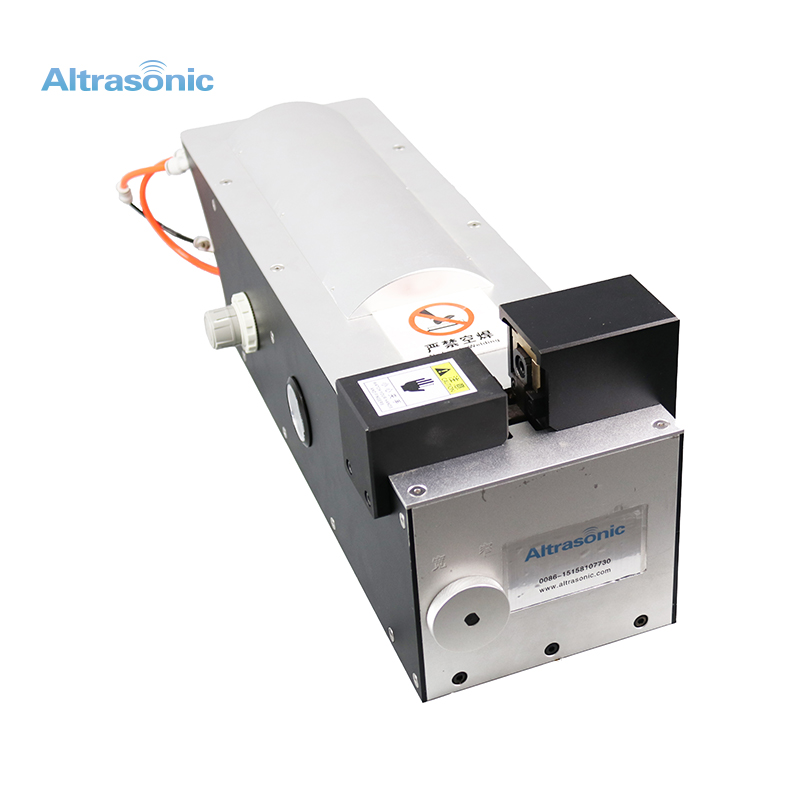

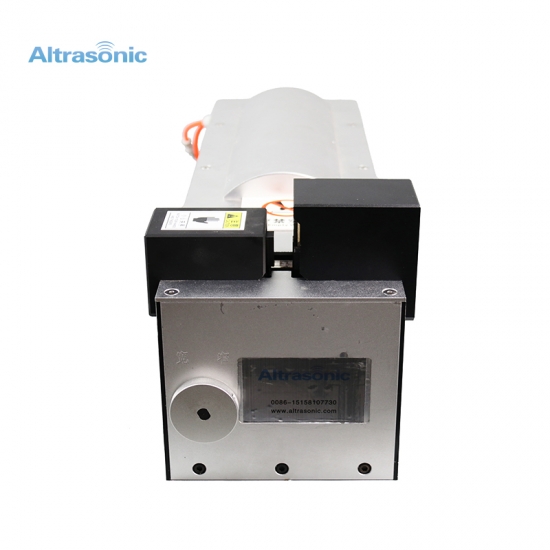

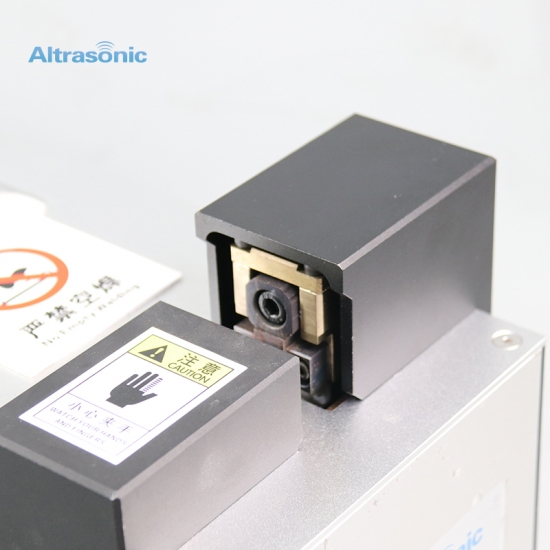

Automobile Wire Harness Welding Machine Copper Wire Aluminum Wire Welder Device

Automobile Wire Harness Welding Machine Copper Wire Aluminum Wire Welder Device

Ultrasonic wire harness welding machines are widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields.

  • Item No.:

    HS-2050A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

Automobile Wire Harness Welding Machine Copper Wire Aluminum Wire Welder Device



Specifications:


 Item No  HS-2050A
 Frequency  20 kHz
 Power  5000 watt
 Welding area  0-35 mm²
 Working air pressure  0.05-0.9 MPa
 Weight  55 KG
 Generator size  500*400*160 mm
 Machine size  600*200*260 mm


Feature:


There is no need for flux and external heating, no deformation due to heating, no residual stress, and low requirements for pre-welding treatment on the surface of the weldment. Not only the same kind of metal, but also dissimilar metals can also be welded. It is possible to weld thin sheets or filaments to thick plates. Ultrasonic welding of good conductors has much less energy than current welding, and is often used for welding transistors or integrated circuit leads.



Application:


Mainly used in automobile wiring harness connecting wire lap welding, wire head forming, wire mutual welding, and multiple wires are connected in parallel to form a wire knot.

Ultrasonic wire harness welding machines are widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and meters.





Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
