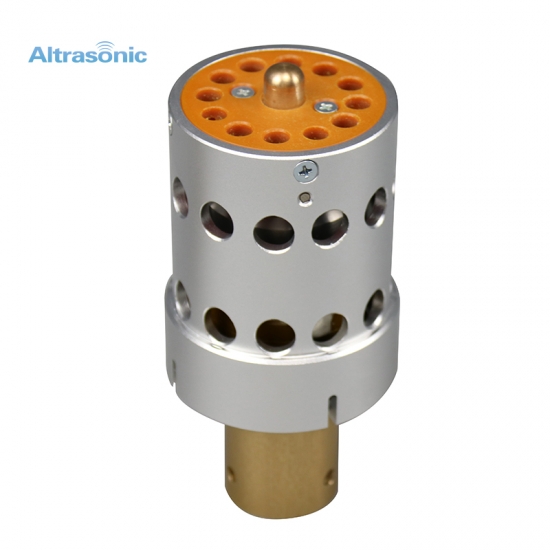

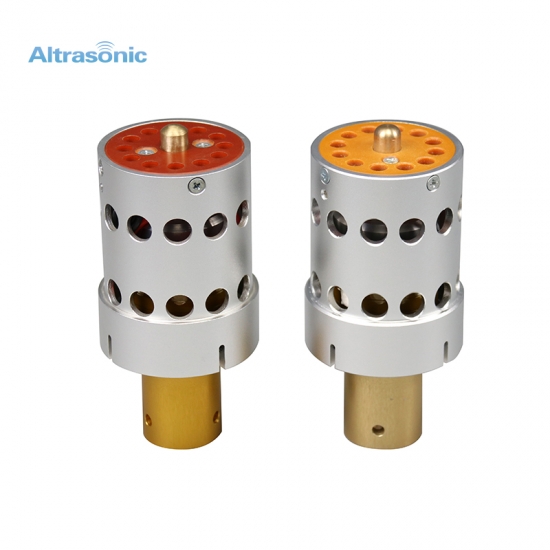

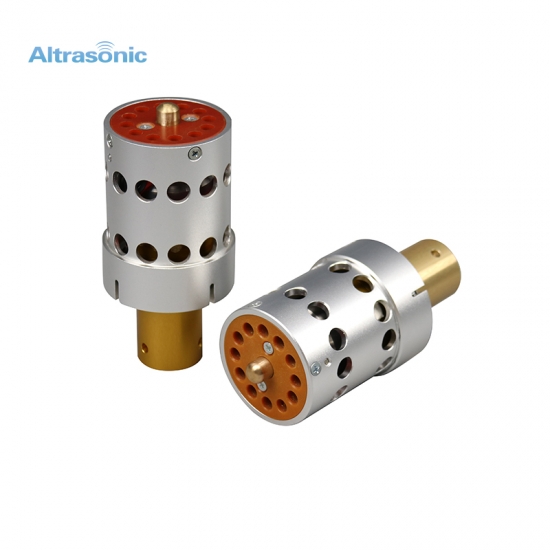

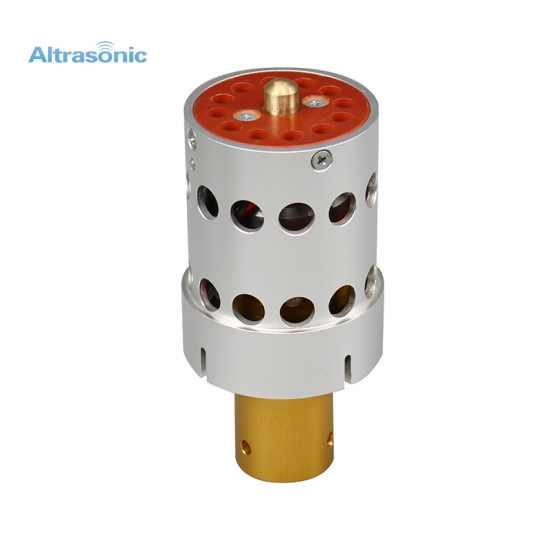

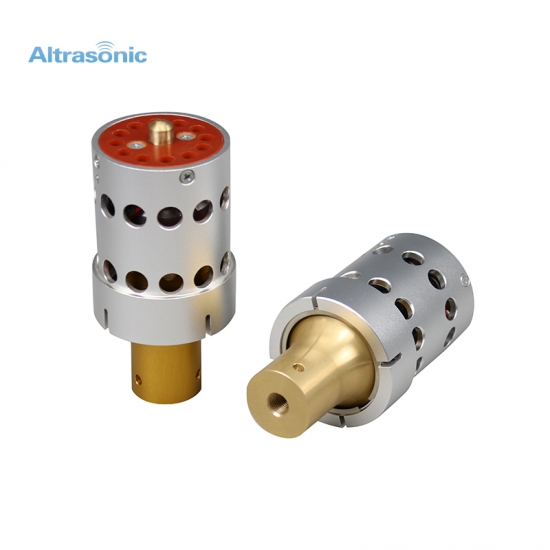

20K Dukane ultrasonic converter replacement with customized booster and horn

20K Dukane ultrasonic converter replacement with customized booster and horn

ultrasonic Dukane110-3122 transducer replacement ,same quality and function as the original version.

  • Item No.:

    HS-D110-3122
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


20K Dukane ultrasonic converter replacement with customized booster and horn


Specification:


 Item No  HS-D110-3122
 Frequency  20 kHz
 Power  2000 watt
 Joint bolt  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Resistance  10 Ω
 Amplitude  12 um
 Application  Plastic welding machine



Description:

Ultrasonic transducers are actually piezoelectric ceramics with the same frequency as its resonant frequency, which uses the piezoelectric effect of the material to convert electrical energy into mechanical vibration. Generally, ultrasonic waves are first generated by an ultrasonic generator, which is converted into mechanical vibration by an ultrasonic transducer, and then ultrasonic waves can be generated by an ultrasonic deriving device and an ultrasonic receiving device.


Ultrasonic transducers mainly consist of shell, acoustic window (matching layer), piezoelectric ceramic disc transducer, backing, lead-out cable, receiver, etc.


Among them, the piezoelectric ceramic disc transducer plays the same role as the general transducer, mainly used to transmit and receive ultrasonic waves; and on the piezoelectric ceramic disc transducer is the receiver, which is mainly led by the cable , Transducer, metal ring and rubber gasket, used as an ultrasonic receiver, receiving the Doppler callback signal generated outside the frequency band of the piezoelectric ceramic disc transducer.


Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies. The piezoelectric effect of the material converts electrical signals into mechanical vibrations. Ultrasonic transducer is a kind of energy conversion device. Its function is to convert the input electric power into mechanical power (ultrasound) and then transmit it out. It consumes a small part of the power by itself. Types of ultrasonic transducers: can be divided into piezoelectric transducers, sandwich transducers, cylindrical transducers, inverted horn transducers and so on.


What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
