The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
Item No.:
HS-B803Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
SliverShipping port:
Hangzhou or ShanghaiLead Time:
7

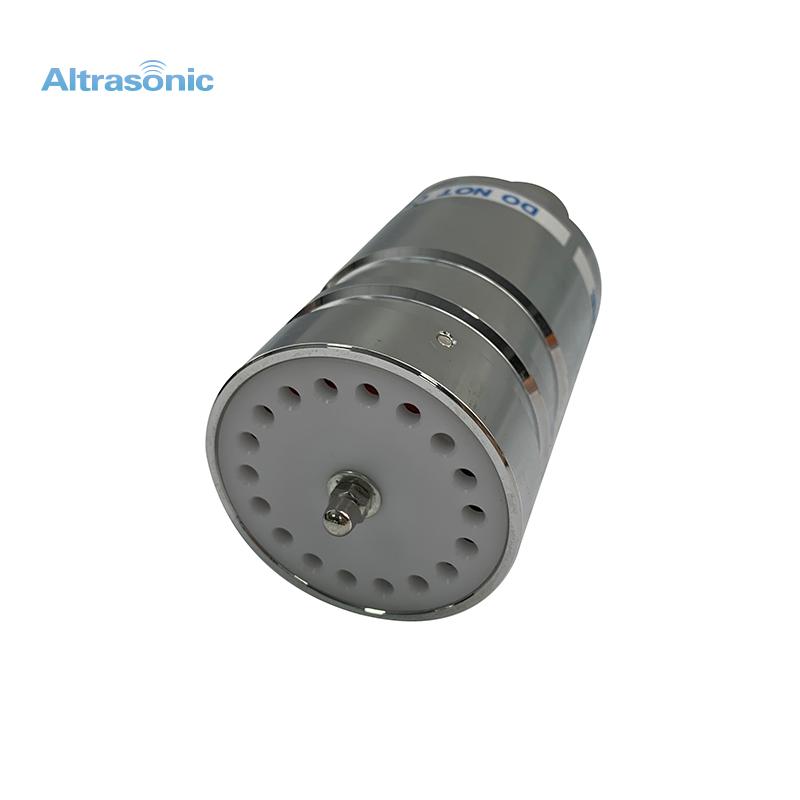

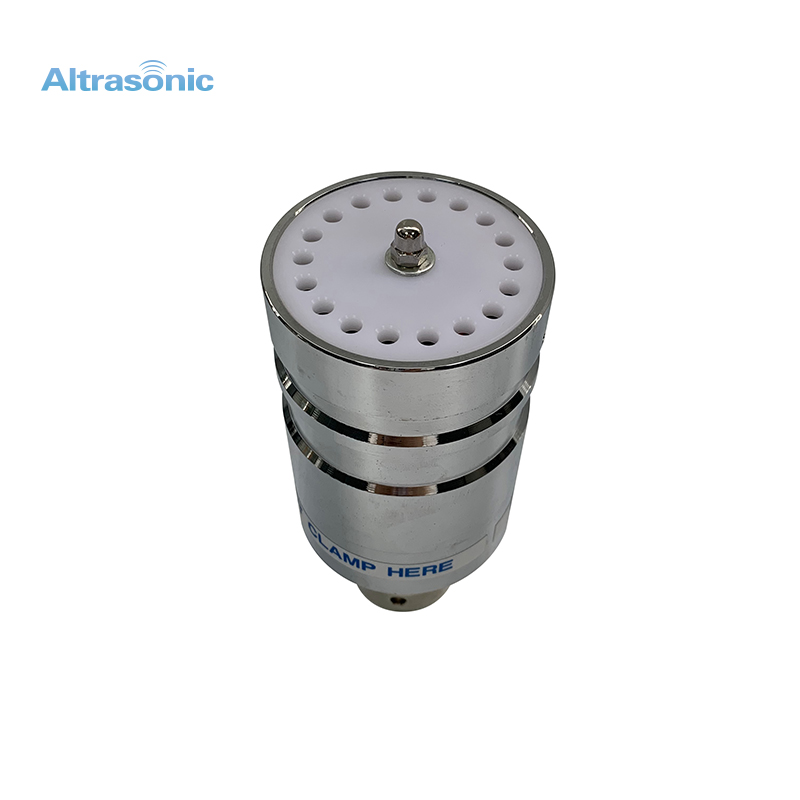

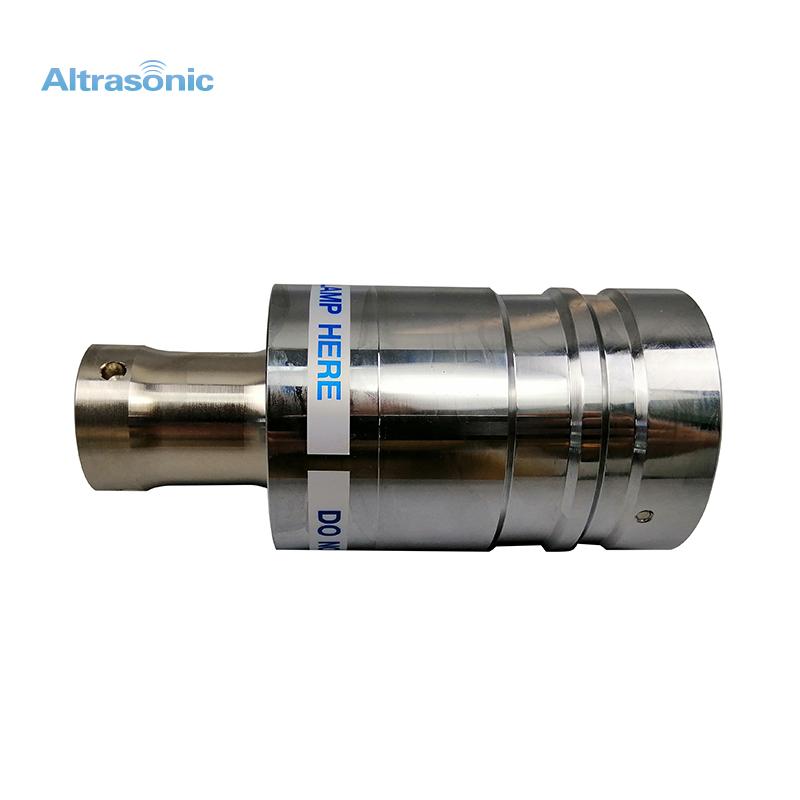

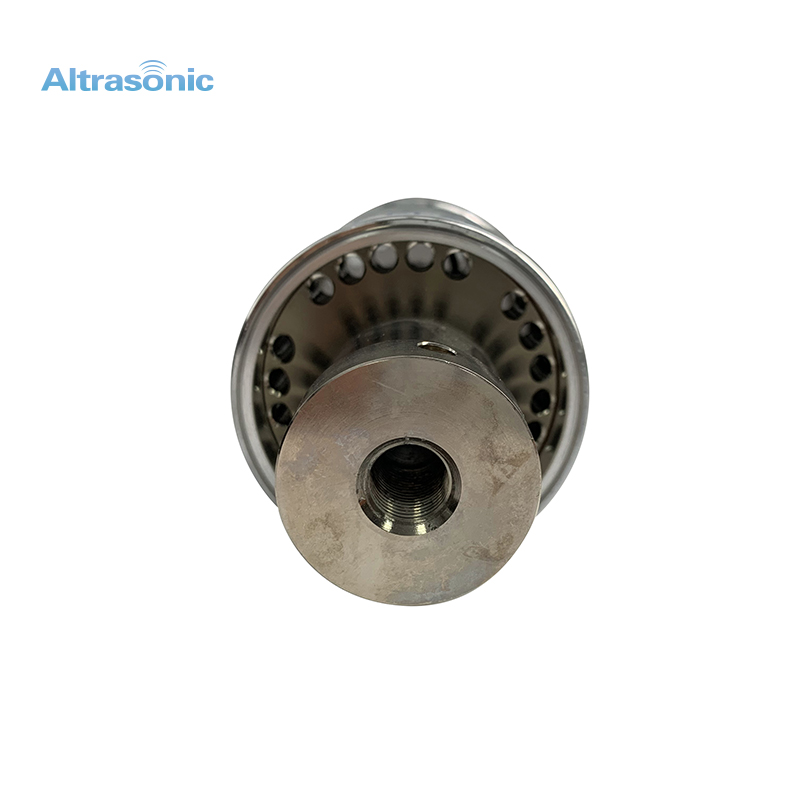

20 kHz 1500 W Ultrasonic Transducer For Replacement Branson 803 OEM Service
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Specification:
Capacitance
Item No
HS-B803
Frequency
20 kHz
Power
1500 watt
Connect screw
1/2-20UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4pcs or 6pcs
11.5-12.5 nf
Advantages:
1. High efficiency, we will provide fast reply and delivery time.
2. 4 piezo disk design for maximum output amplitude.
3. Stable design to protect sensitive ultrasonic components.
4. Perfect resonance image due to high-quality materials and select material pairings.
