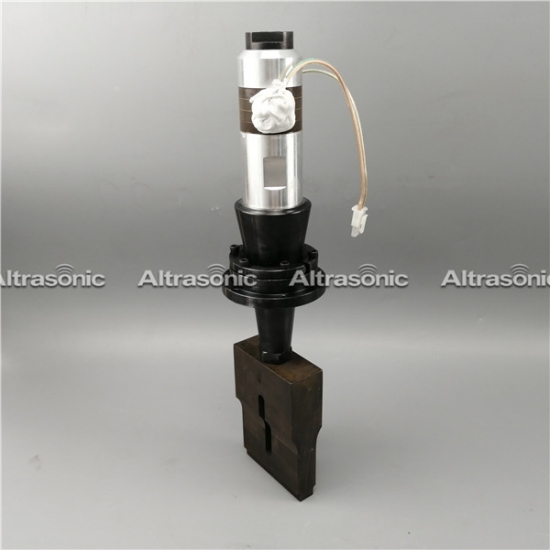

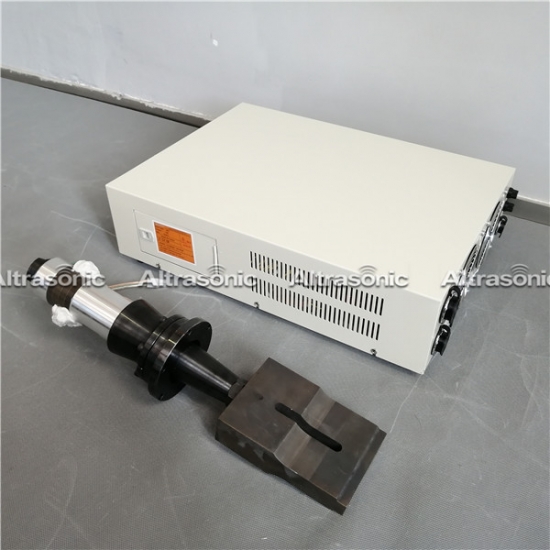

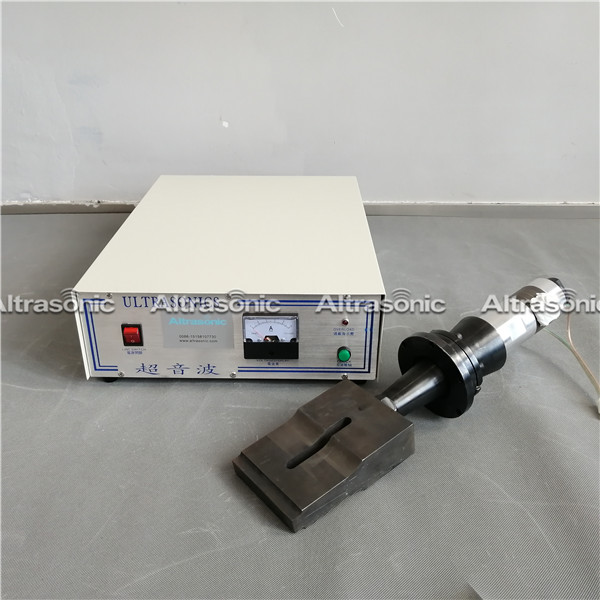

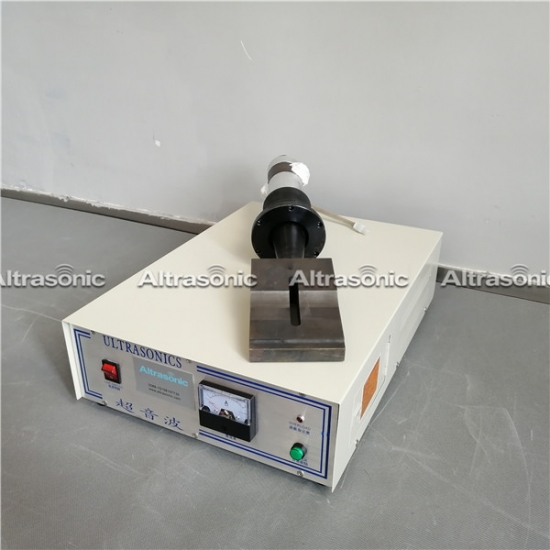

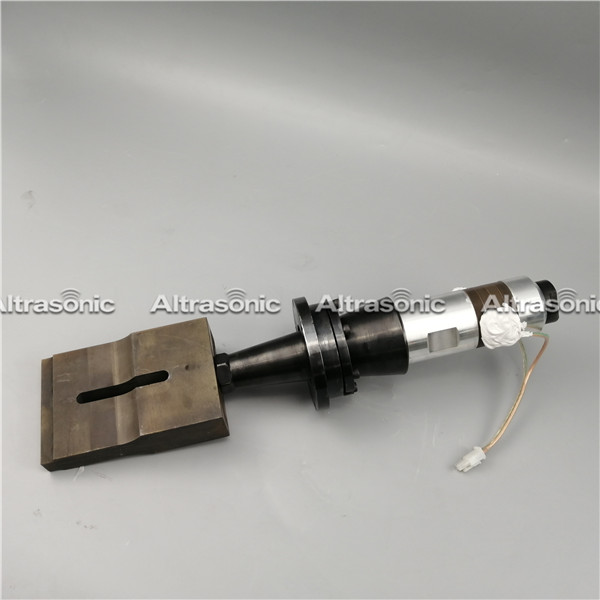

15kHz 2600Watt Ultrasonic Welding Equipment For Blank Flat Mask Making Machine

15kHz 2600Watt Ultrasonic Welding Equipment For Blank Flat Mask Making Machine

Description:

15kHz 2600Watt Ultrasonic Welding equipment is suitable for welding 5-6ply N95 mask, sealing N95 mask, blank flat mask making machine, etc.

The principle of ultrasonic mask machine welding mainly uses ultrasonic technology to transmit ultrasonic energy to the welding zone through the upper welding piece. Due to the large acoustic resistance at the welding interface, which is the interface between the two weldings, local high temperatures will occur. In addition, due to the poor thermal conductivity of plastics, nylon, chemical fibers, non-woven fabrics, multi-layered fabrics, and gold fabrics, they cannot be distributed in time and gather in the welding zone, causing the two contact surfaces to melt rapidly. After applying a certain pressure, Fusion into one. When the ultrasonic wave stops functioning, the pressure is allowed to continue, and the pressure is maintained for a while, so that it solidifies and forms, so that a strong molecular chain is formed to achieve the purpose of welding, and the welding strength can be close to the strength of the raw material body.

Specification:

Frequency: 15kHz

Max Power: 2600Watt

Voltage: 110V / 220V, 50-60Hz

Working Temperature：5°C - 50°C

Generator：Analog

Steel horn: 110*20mm

Advantage:

1. Short welding times (in the order of tenth of seconds)

2. Aesthetic perfection

3. Waterproof welding stable for a long time

4. Labor savings

5. Energy-efficient

6. Flexibility

7. Possibility of welding even in the presence of foreign bodies

8. Exellent mechanical seal

9. Eliminating the use of solvents and adhesives

Processing Center:

CE:

Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

Payment:

Quality:

3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
