It can be used in replacement of Dukane 41S30, you can get a good product with a reasonable price.
Item No.:
HS-D41S30Payment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and YellowShipping port:
Shanghai or NingboLead Time:
15

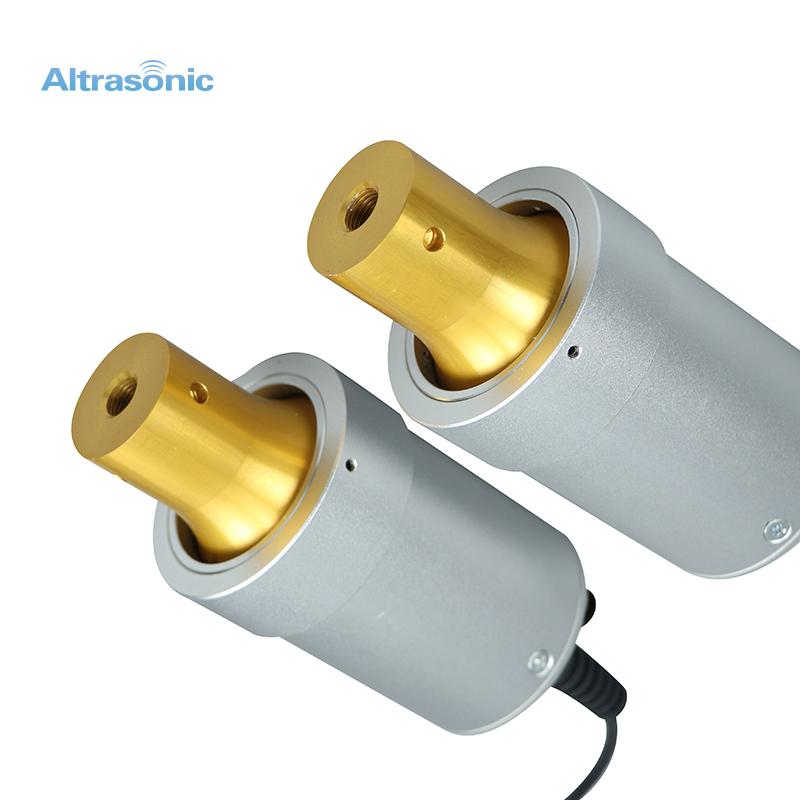

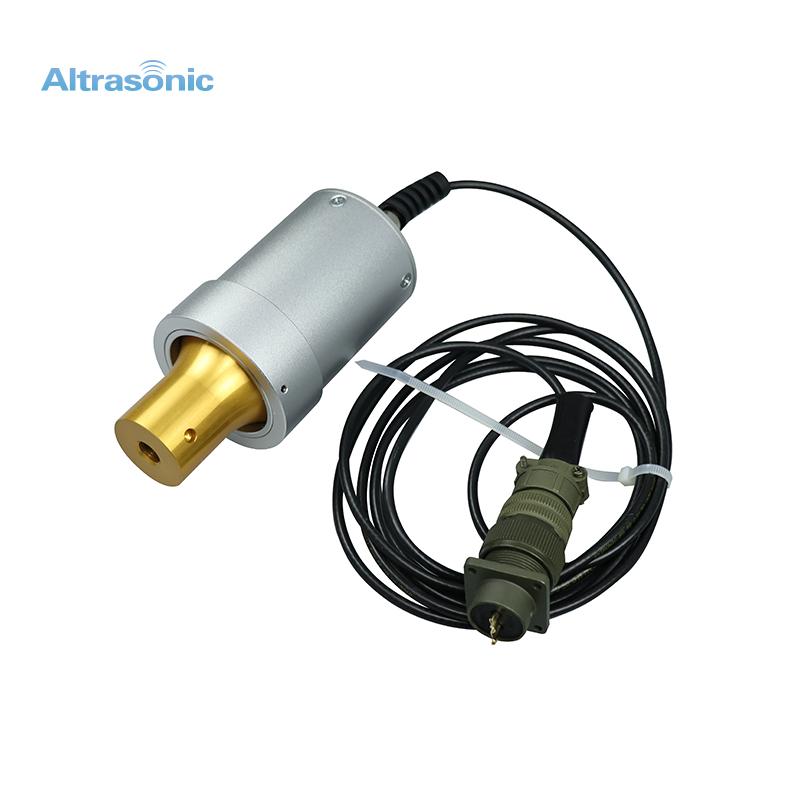

1/2-20 UNF 50mm Ceramic Discs Replacement of Dukane 41S30 Ultrasonic Welding Transducer
Specification:
Item No
HS-D41S30
Frequency
20 kHz
Power
2000 watt
Joint bolt
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11~17 nF
Amplitude
20 um
Application
Plastic welding machine
Description:
The transducer can achieve high frequency vibration with large amplitude by applying pre-stress to counteract the expansion stress of piezoelectric ceramic.Welding transducer requires large instantaneous power, high requirements for materials and technology.
Applied range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Previous :
Quality Assurance Ultrasonic Dukane Transducer Replacement for 20 kHz Dukane Ultrasonic Welding MachineNext :
Electronic Components Replacement of Dukane 41S30 Ultrasonic Converter With Super EconomyIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
High Efficiency 28khz Ultrasonic Sealing and Cutting Machine for Plastic Film Packing Bag Read More
Ultrasonic Welding Generator for N95 Mask Making Analog 15k Generator Read More
40kHz 800Watt Ultrasonic Converter BNC Connect Replace Branson 4TH Read More
Processing Special Surface of Mould Amplitude Stability Ultrasonic Milling Equipment Read More
New Product Clothing Manufacturing Rotary Sealing Machine Ultrasonic Sewing Machine Read More
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.
Replacement Dukane 110-3122 Converter, used for Dukane plastic welding machine.
The 20kHz High Power Ultrasonic Welding Transducer, replacement converter for Dukane type 41S30, is applied to Dukane type ultrasonic welding machine.
Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
