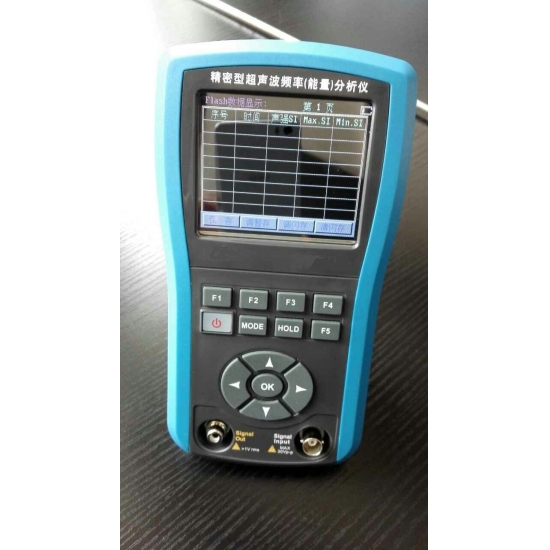

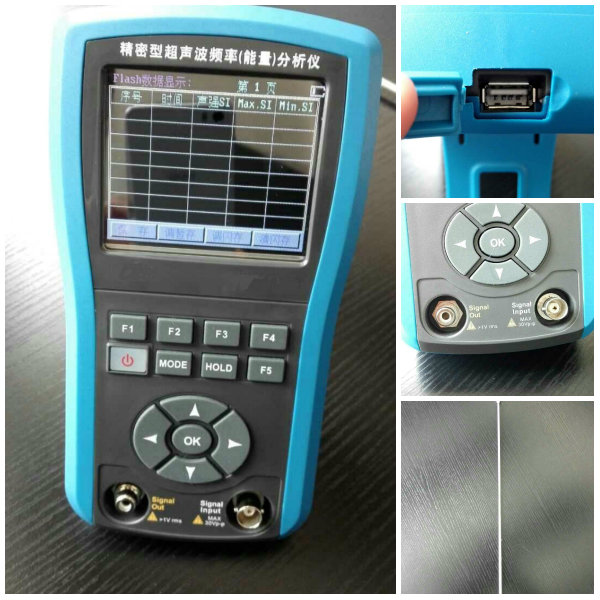

USB Connected Sound Intensity Measuring Instrument

USB Connected Sound Intensity Measuring Instrument

USB Connected Sound Intensity Measuring Instrument

  • Product weight:

    10Kg
  • Product Details

USB Connected Sound Intensity Measuring Instrument



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Wood case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

200 Sets/Month





Specifications

 Ultrasonic Power Measuring Meter:Measuring ultrasonic power in the liquid. The ultrasonic strength in the liquid sound field is the most important index ofthe ultrasonic system. There is a direct influence for the cleaning effect of cleaning machine and work efficiency of the ultrasonic processor. Ultrasonic power measuring instrument can measure the strength of the sound field whenever possible,quickly and easily. Moreover, it directly indicates the sound numerical value.
According to the different using fields, the ultrasonic power measuring instrument can be made into portable and monitoring types.







Parameter



Range of Sound Intensity

0.1-150 W/cm²

Range of Frequency

10Khz-1Mkhz

Service Temperature

0-135 °C

Service Medium

PH 4-PH 10  (liquid)

The Response Duration

less than 0.1 second

Service Time

2 hours

Screen

LCD

Charging Time

4 hours

Out Size

200*135*52mm

Battery

2300mAH Lithium Battery

Service Environment

0~40°C,<75%RH

Probe Length

400mm

Power

110~250V,5V/1.5A

Weight

640g


















 USB Connetced for data transmission, but not for charging.





Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
