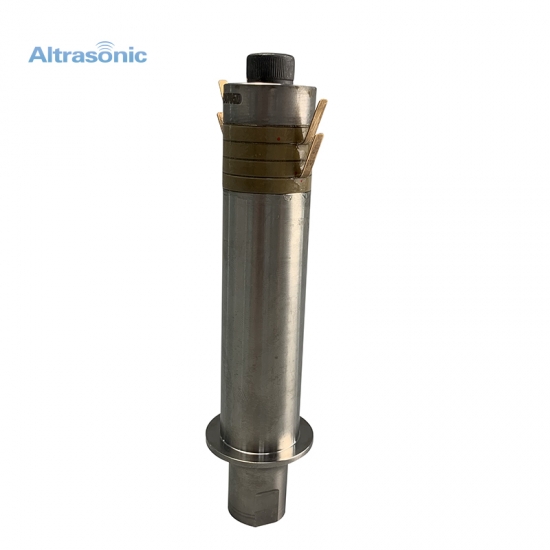

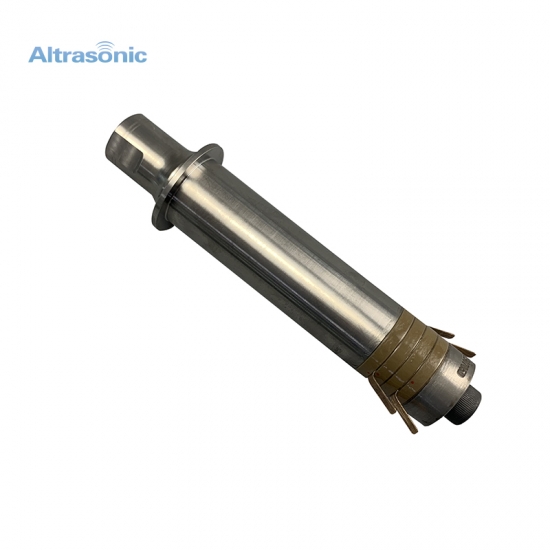

Ultrasonic Welding Transducer 50khz 600watt Ultrasonic Spot Welder Converter

Ultrasonic Welding Transducer 50khz 600watt Ultrasonic Spot Welder Converter

Piezoelectric ceramic transducers realize the conversion of electrical energy to mechanical energy through the inverse piezoelectric effect, and output power stably.

  • Item No.:

    HS-3050-4Z
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Ultrasonic Welding Transducer 50khz 600watt Ultrasonic Spot Welder Converter



Specification:


 Item No.  HS-3050-4Z
 Frequency  50 kHz
 Power  600 watt
 Diameter of Ceramic  30 mm
 Qty of Ceramic  4 pcs
 Connect screw  M8
 Capacitance  5.5~6.2 nF
 Max amplitude  4 um



Description:



The ultrasonic transducer includes a shell (1), a matching layer or acoustic window (2), a piezoelectric ceramic disc transducer (3), a backing (4), and an outgoing cable (5), which is characterized in that it also includes Cymbal array receiver, which is composed of lead-out cable (6), 8-16 Cymbal transducers (7), metal rings (8), (9) and rubber gasket (10); Cymbal array receiver is located on the disc Above the piezoelectric transducer 3; the piezoelectric ceramic disc transducer is used as the basic ultrasonic transducer, which transmits and receives ultrasonic signals; the Cymbal array receiver is located on the disc piezoelectric transducer, As an ultrasonic receiver, used to receive Doppler echo signals outside the frequency band of the disc transducer.





Workshop:



CE:



Shipping:




Payment:
