15 kHz Ultrasonic Transducer

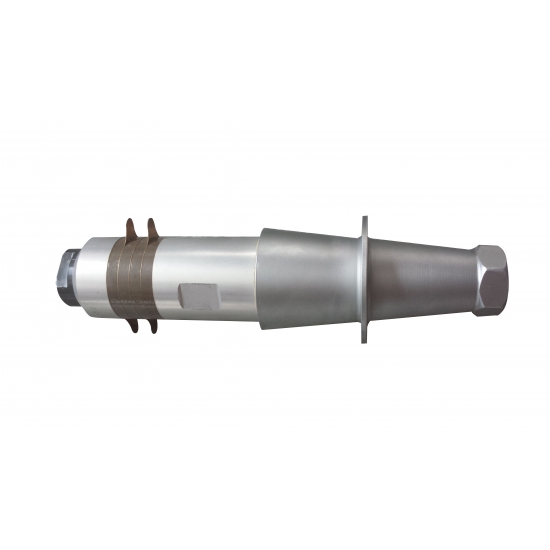

Ultrasonic Transducer With Booster For Welding Machine

Ultrasonic Transducer With Booster For Welding Machine

Ultrasonic Oscillator is the main part of high-power ultrasonic system, include booster and Transducer (converter). Ultrasonic booster can change the amplitude of transducer.

  • Item No.:

    HS-7015-4Z
  • Product origin:

    China
  • Min order:

    10
  • Product weight:

    3kg
  • Product Details


Ultrasonic Transducer With Booster For Welding Machine





Description:



Ultrasonic Oscillator is the main part of high-power ultrasonic system, include booster and Transducer (converter). Ultrasonic booster can change the amplitude of transducer. Booster is a passive device and cannot produce vibration itself. It is only to output after the input vibration is changed into amplitude, and finishing the impedance conversion at the same time. Under the stimulus of electric field, ultrasonic transducer can produce regular vibration and the amplitude is about 10μmm commonly. That is not enough to finish the welding and processing step directly. Through with the suitable booster, the amplitude of ultrasonic can be changed in a large range.






Specifications:



Model

HS-7015-4Z

Package Type

Through Hole

Frequency

15 KHz

Capacitance

10000-18500 pF

Dimension

70mm

Booster

1

Material

Stainless Steel

Color

Black

Piezoelectric Chip

4





Competitive Advantage:



★ High mechanical quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.

★ Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.

★ Having steady output amplitude even the load markedly changed.
★ Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance, ensuring high conversion efficiency.

★ Bolt-on mounting gives the fast, easy installation and high reliability.


Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
