Ultrasonic analog generator technology is mature and cost-effective.
Item No.:
HS-AG15Payment:
T/T, PayPal, West UnionProduct origin:
ChinaColor:
BlackShipping port:
Shanghai or NingboLead Time:
25

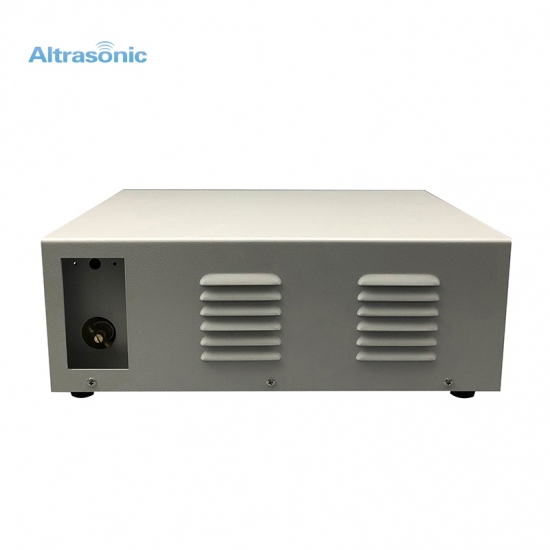

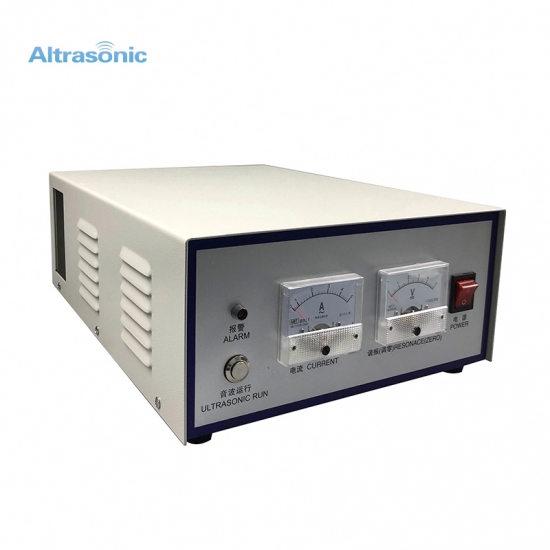

Ultrasonic simulation driver Non-woven mask welding generator Automated mask production machine
Description:
The ultrasonic generator can monitor the working frequency and power of the high-power ultrasonic system.
According to the different requirements of users, various parameters such as power, amplitude, running time, etc. can be adjusted in real time.
Frequency fine-tuning: Adjust the frequency to make the ultrasonic transducer always work in the best state, the efficiency is maximized, and the adjustment range is 2%.
Automatic frequency following: Once the device has completed the initial settings, it can operate continuously without adjusting the generator.
Amplitude control: When the load changes during the working process of the transducer, the drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.
System protection: When the system is working in an unsuitable operating environment, the generator will stop working and give an alarm to protect the equipment from damage.
Amplitude adjustment: The amplitude can be increased or decreased instantaneously during the working process, and the setting range of the amplitude: 0%~100%.
Automatic frequency search: The working frequency of the tool head can be automatically determined and stored.
Specification:
Frequency
15 khz
Power
2600 watt
Net weight
20 KG
Size
56*36*20 cm
Voltage
110V / 220V
Working temperature
5~50℃
Welding horn
200*25 mm
Advantage:
1. The use of high-quality electronic components assembly.
2. Advanced and reliable protection circuit makes the reliability is greatly improved.
3. FM and frequency automatic compensation, frequency of the digital display.
4. Frequency deviation, working current two meter indication and protection function.
5. According to the customer request interface plug.
6. Has the advantages of simple structure, easy to repair, cheap.
Workshop：
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
