Home Untrasonic Homogenizer

Lab Ultrasonic Homogenizer

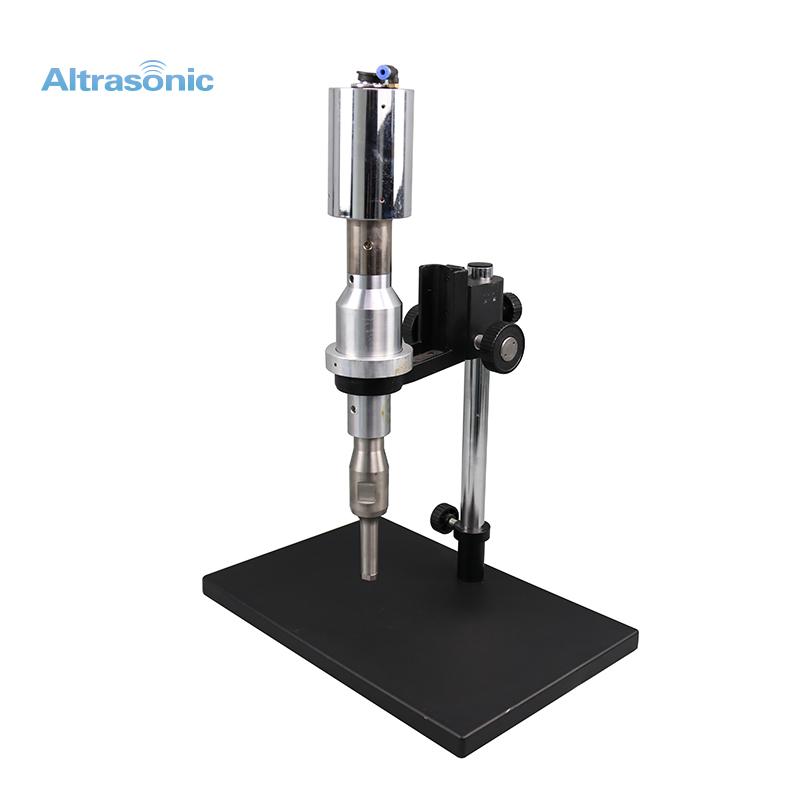

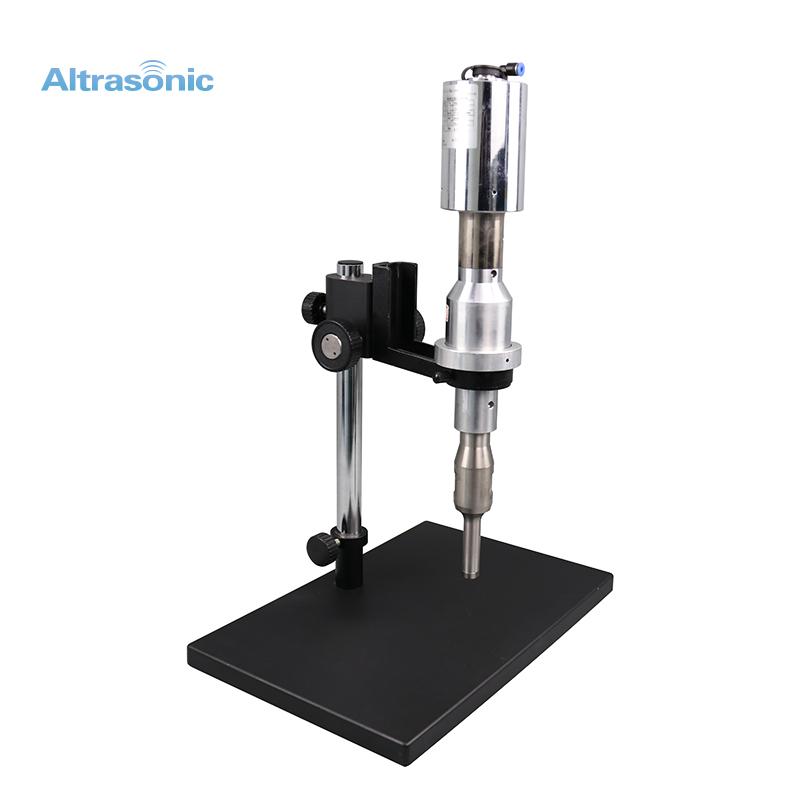

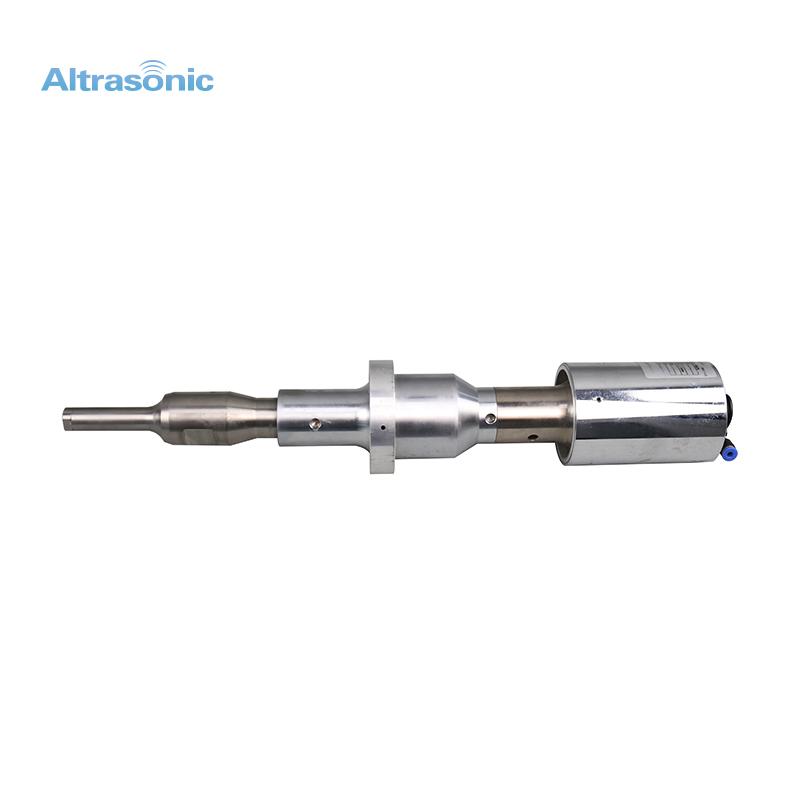

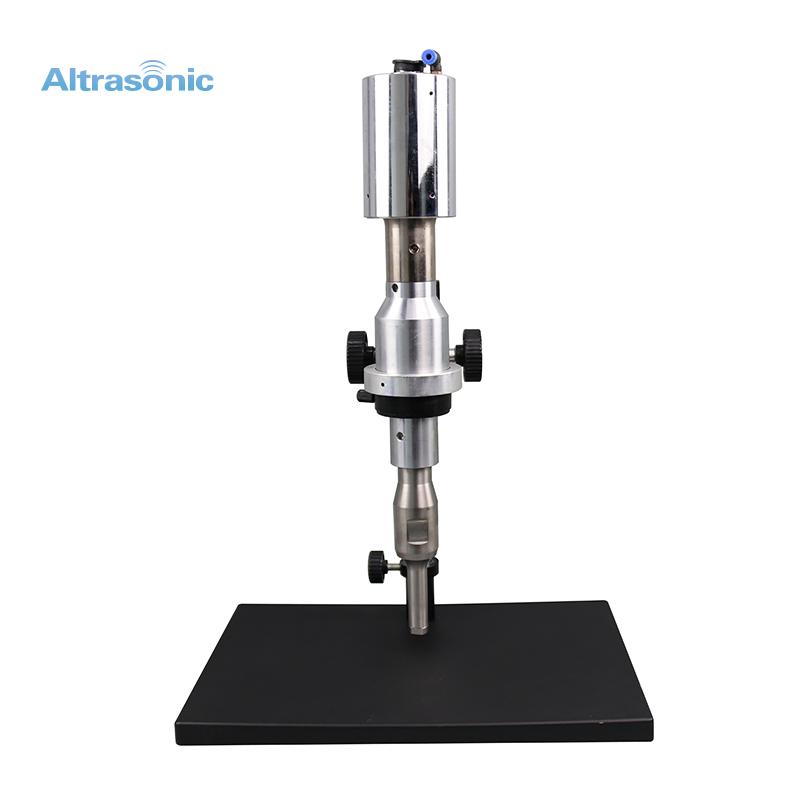

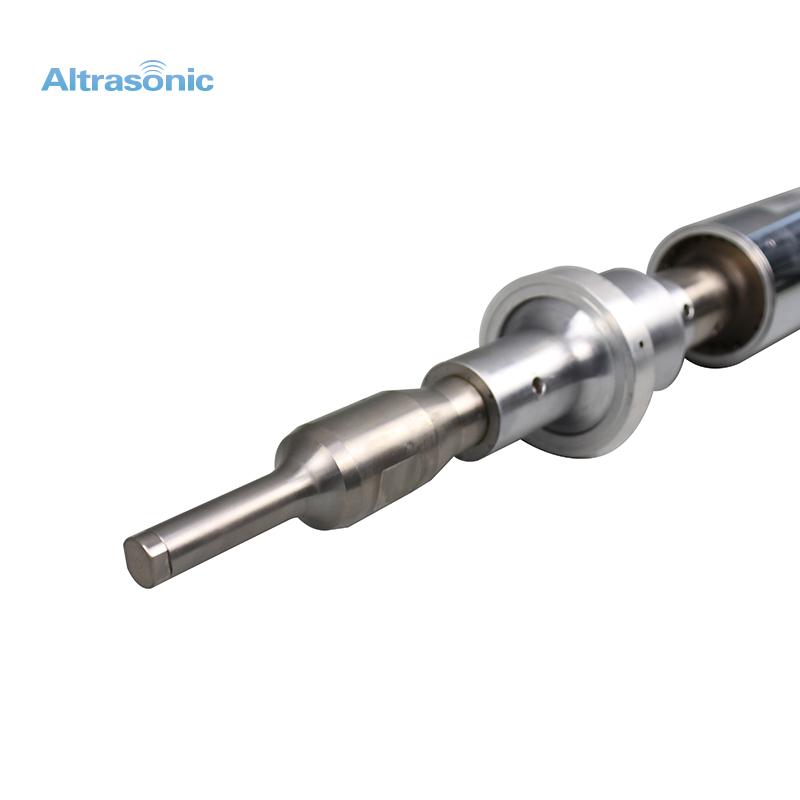

Ultrasonic Probe Homogenizer Ultrasonic Homogenizer in Laboratory

Ultrasonic Probe Homogenizer Ultrasonic Homogenizer in Laboratory

These extreme conditions result in exceptionally efficient mixing, yielding nanoemulsions with very small droplet sizes and enormous contact areas between all components.

  • Item No.:

    HS-S20-500
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Ultrasonic Probe Homogenizer Ultrasonic Homogenizer in Laboratory



Specifications:


Model

S20-1000

S20-1500

S20-2000

S20-3000

Frequency

20±1 KHz

20±1 KHz

20±1 KHz

20±1 KHz

Power

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

300 ℃

300 ℃

300 ℃

300 ℃

Pressure

35 MPa

35 MPa

35 MPa

35 MPa

Intensity of sound

>20 W/cm²

>30 W/cm²

>40 W/cm²

>60 W/cm²

Max Capacity

> 10 L/Min

> 15 L/Min

> 20 L/Min

> 30 L/Min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy



Description:


Ultrasound creates acoustic cavitation, which produces violently imploding vacuum bubbles, causing shock waves, microjets and strong shear forces as well as extreme local temperatures (~5,000 K) and pressures (~1,000 atm). These extreme conditions result in exceptionally efficient mixing, yielding nanoemulsions with very small droplet sizes and enormous contact areas between all components.



Applications:

Reaction Acceleration – cavitation accelerates chemical and physical reactions.

Fine Particle

Dispersion – e.g. nanoparticle processing

Disruption and Cell Lysing – will break open biological tissues and cells to extract enzymes and      DNA, prepare vaccines.

This technology provides a method for ultrasonically lysing cells and spores in a liquid flowing        continuously or intermittently through a cylindrical reactor.

Homogenization – making uniform mixtures of liquids or liquid suspensions.

Emulsification – processing foods, pharmaceuticals, and cosmetics.

Dissolution – dissolving solids in solvents.

Degassing – removing gases from solutions without heat or vacuum.

Inline pipe cleaning, removes scale or build/up without disassembly.

Cylindrical 360° internally radiating chamber.

Internal or external liquid atomizing or powder making sonotrode.


Competitive Advantage:



 Custom System Designs and Consulting:

 Active Ultrasonics provides consulting services and custom reactor designs.

 High amplitude probe flow cells

 Unrestricted flow-through cylindrical systems

 High Power Probe Sonicator

 Custom sizes available for laboratory and high volume industrial applications.
