Ultrasonic Parts 15kHz 2600Watt For Sawing N95

Ultrasonic Parts 15kHz 2600Watt For Sawing N95

Description:

15kHz 2600Watt Ultrasonic Welding equipment is suitable for welding 5-6ply N95 mask, sealing N95 mask, blank flat mask making machine, etc. The non-woven fabric layer of the medical mask is mainly made of polypropylene fiber material with high solubility, which belongs to the fiber material with high solubility of polypropylene products. Ultrasonic welding system can weld non-woven fabrics well, environmentally friendly, sterile, efficient and strong.

Principle:

The principle of ultrasonic mask machine welding mainly uses ultrasonic technology to transmit ultrasonic energy to the welding zone through the upper welding piece. Due to the large acoustic resistance at the welding interface, which is the interface between the two weldings, local high temperatures will occur. In addition, due to the poor thermal conductivity of plastics, nylon, chemical fibers, non-woven fabrics, multi-layered fabrics, and gold fabrics, they cannot be distributed in time and gather in the welding zone, causing the two contact surfaces to melt rapidly. After applying a certain pressure, Fusion into one. When the ultrasonic wave stops functioning, the pressure is allowed to continue, and the pressure is maintained for a while, so that it solidifies and forms, so that a strong molecular chain is formed to achieve the purpose of welding, and the welding strength can be close to the strength of the raw material body.

Specification:

Frequency: 15kHz

Max Power: 2600Watt

Voltage: 110V / 220V, 50-60Hz

Working Temperature：5°C - 50°C

Generator：Analog

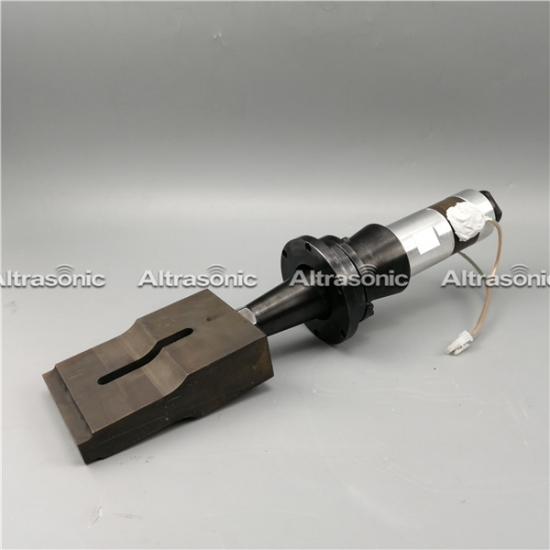

Steel horn: 200*25mm / 270*25mm

Advantage:

1. We use a welded steel mold with a hardness of 62. The current is small, no heat is generated, and the durability is strong；

2. We made the booster made of steel more durable than the horn made of aluminum；

3. Our ultrasonic generator can be used for continuous welding or intermittent welding;

4. Every set of equipment will be tested 3-4 times before leaving the factory to ensure the quality.

Application:

1. 20kHz 2000Watt Ultrasonic Welding Machine is suitable for welding 3ply flat mask, flat mask ear loop, N95 mask ear loop, etc.

2. 15kHz 2600Watt Ultrasonic Welding Machine is suitable for welding 5-6ply N95 mask, sealing N95 mask, etc.

Processing Center:

CE:

Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

Payment:

Quality:

3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
