Ultrasonic metal welding rotary welding machine for solar panel welding

Ultrasonic metal welding rotary welding machine for solar panel welding

The ultrasonic rotary welding machine is specially designed for solar panel welding.

  • Payment:

    T/T, PayPal, WWestern Union
  • Product origin:

    China
  • Shipping port:

    Shanghai or Ningbo
  • Product Details



Ultrasonic metal welding Rolling welding Solar panel welding

Specification:



 Frequency  20 kHz
 Power  3000 watt
 Gas source  > 0.6 Mpa
 Ultrasonic trigger mode  Time delay mode
 Ultrasonic welding mode   Time mode / Energy mode
 Automatic control method  PLC control
 Equipment weight  1500 KG
 Equipment size  2100*570*1500 mm

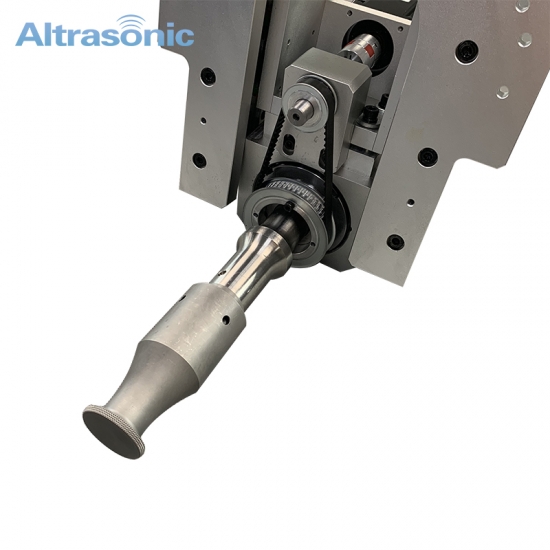

Booster and welding horn:



We use finite element analysis software to simulate the welding head to ensure the uniformity of the welding head amplitude.  We insist on the strict production process flow for every components.



Ultrasonic generator:



Amplitude: Amplitude can be adjusted between 50% and 100%.

Power: It shows 10% to 100% power during soldering,One LED representative

Overload: It has protection system to prevent frequency overload, current and voltage are too large, and over temperature.

Mode selection:  Time mode and energy mode.

Function: Automatic frequency chasing function.



Advantage:

1. Automatic frequency chasing function

2. We use finite element analysis software to simulate the welding head to ensure the uniformity of the welding head amplitude

3. The warranty period of the equipment is 12 months from the date of confirmation of acceptance and signature, and lifetime maintenance is provided




ultrasonic rotary welding (4)






Workshop:


CE:


Shipping:


Payment:
