Home Ultrasonic Welding Machine

Ultrasonic Metal Welding Machine

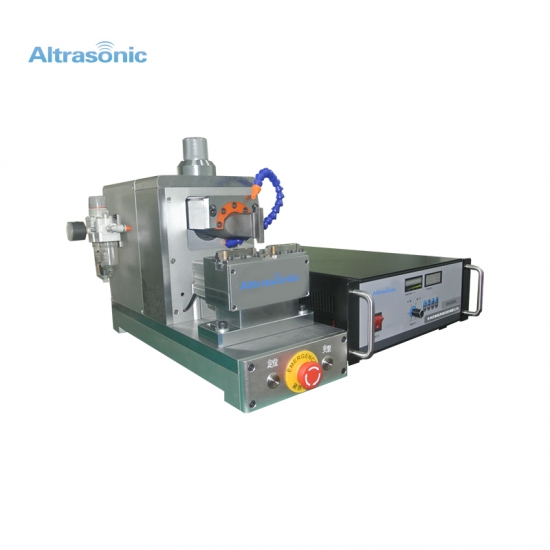

Ultrasonic Battery Metal Spot Welding Equipment Aluminum Sheet Welding

Ultrasonic Battery Metal Spot Welding Equipment Aluminum Sheet Welding

Can be used for welding of thin metal sheets, such as welding between copper sheets, aluminum sheets, copper and aluminum, etc.

  • Item No.:

    HS-2030-D
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

Ultrasonic Battery Metal Spot Welding Equipment Aluminum Sheet Welding



Specifications:


 Item No  HS-2030-D
 Frequency  20 kHz
 Power  3000 watt
 Working air pressure  0.05-0.9 MPa
 Weight  60 KG

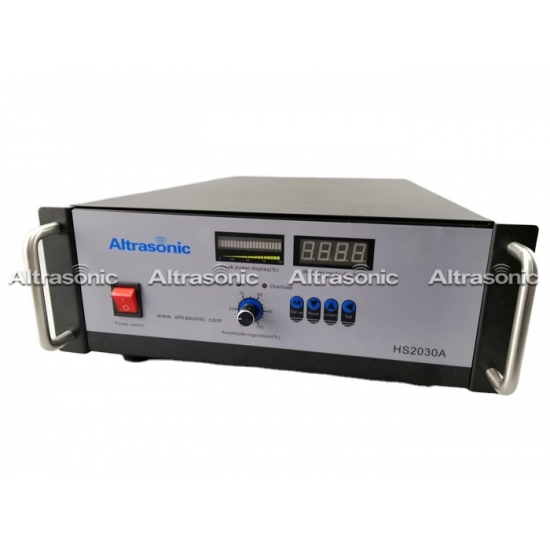

 Generator size  550*280*430 mm
 Machine size  540*380*150 mm


Description:


Ultrasonic battery metal spot welding equipment is operated at low temperature, which can maintain the original performance of the metal without causing damage to the thin metal; because there is no melting, the energy of the ultrasonic battery metal spot welding equipment is only equivalent to 1/30 of that of resistance welding, saving Cost; Ultrasonic battery metal spot welding equipment is a mechanical process, no current flows through the workpiece, so the conductivity of the metal has no effect; ultrasonic wire beam welding does not require pretreatment of the metal surface, ultrasonic vibration can directly vibrate the attachment Remove after breaking.



Features:


1. The roller bearing slider ensures smooth operation and great accuracy of the system;

2. Welding heads are equipped with low-cost replaceable welding nozzles or integrated high-hardness tool steel welding heads, which can be installed quickly and minimize costs;

3. The unique actuator of the special ultrasonic welding machine can efficiently transmit the ultrasonic energy to the welding head, and the welding quality is guaranteed;

4. Easy to operate, built-in electronic protection circuit, safe to use, used for the same kind of metal welding, and can perform single-point or multi-point welding on non-ferrous metals.




Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
