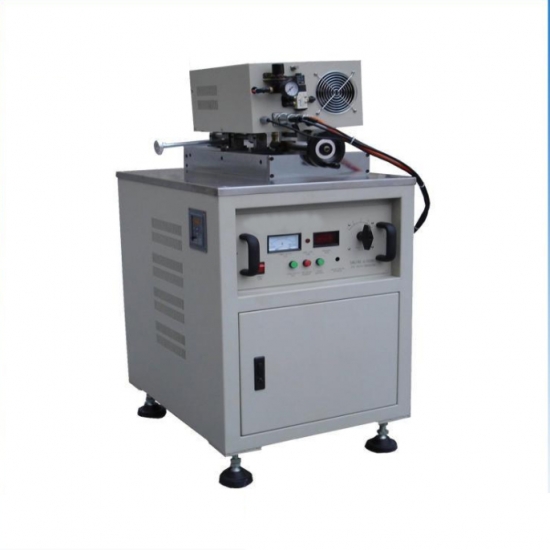

Ultrasonic Aluminum Plastic Pipe Welding Machine with special steel

Ultrasonic Aluminum Plastic Pipe Welding Machine with special steel

By using the principle of ultrasonic high-frequency

vibration, the ultrasonic metal welding machine converts

ultrasonic vibration energy into friction energy, thereby

transferring the metal surface. Under conditions where

heat is generated by friction and pressure is applied to the

metal, the metal sheet will melt.


  • Item No.:

    HS-2020-AP
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    40
  • Product Details


Ultrasonic Aluminum Plastic Pipe Welding Machine with special steel


Specification:



1. Frequency: 20±1kHz

2. Maximum output power: 2000Watt

3. Welding speed: 4-10m/min (according to the thickness of the material)

4. Aluminum welding thickness: 0.2-0.5mm (according to the material)

5. Welding tool head diameter: 51mm in diameter

6. Operation mode: automatic, manual test

7. Working pressure: 0.2-0.6Mpa

8. Power supply: AC220V±5%, 50Hz±1%

9. Dimensions: Generator: 450×600×160mm3 Support: 400×330×220 mm3

10. Working environment temperature: 0-50℃ 11. Motor: three-phase AC 220V conversion motor (51KGV20)



Principle:



By using the principle of ultrasonic high-frequency vibration, the ultrasonic metal welding machine converts ultrasonic vibration energy into friction energy, thereby transferring the metal surface. Under conditions where heat is generated by friction and pressure is applied to the metal, the metal sheet will melt.


Description:




1(1)2(1)3(1)
