Ultrasonic 2600Watt Welding System Medical N95 Mask Making Machine Parts

Ultrasonic 2600Watt Welding System Medical N95 Mask Making Machine Parts

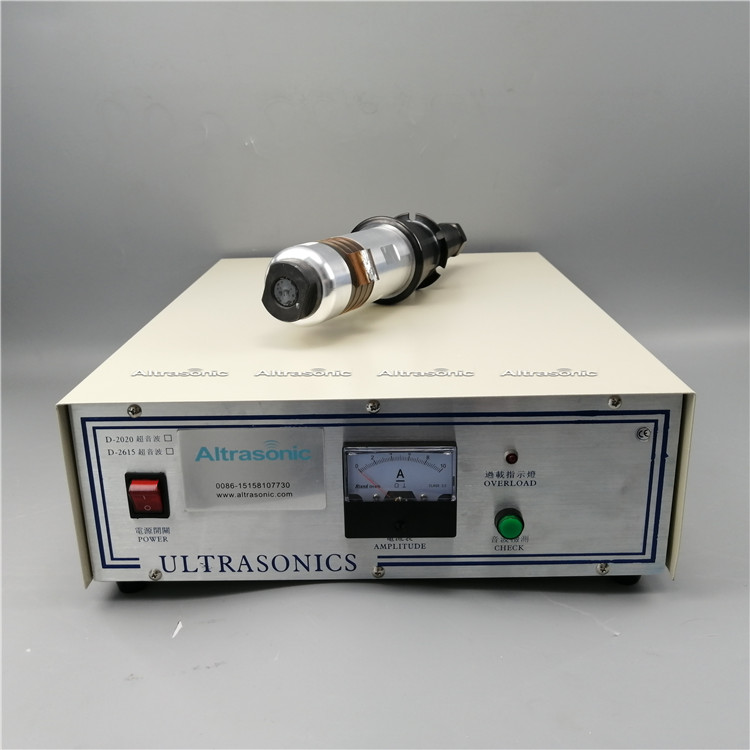

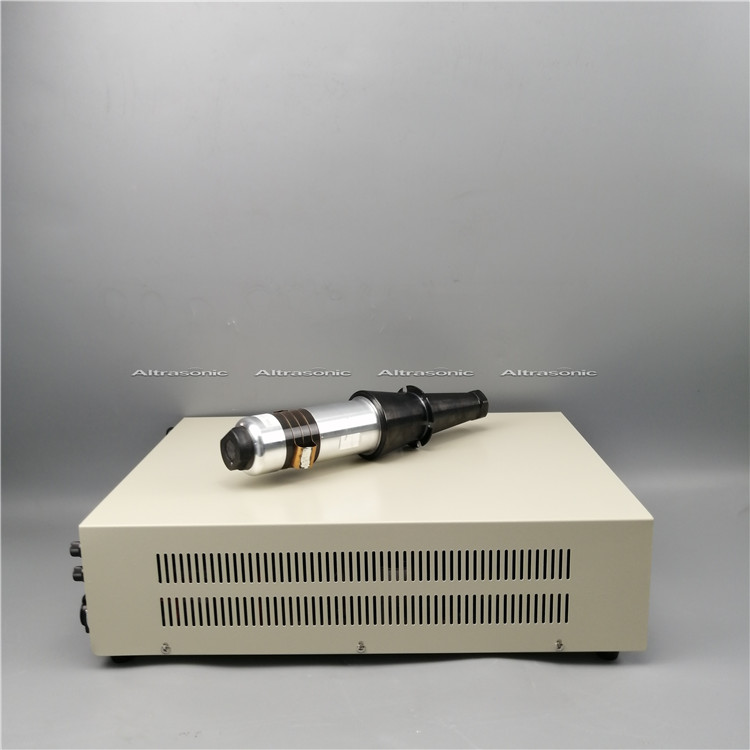

The 15kHz Ultrasonic Welding System with high frequency generator and high output transducer is used in N95 mask making machine recently , display good stability and productivity.

  • Item No.:

    HS-W15
  • Payment:

    T/T, PayPal, West Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Ultrasonic 2600Watt Welding System Medical N95 Mask Making Machine Parts



Specification:


 Item No  HS-W15
 Frequency  15 kHz
 Power  2600 watt
 Voltage  110V/220V
 Generator  Analog
 Welding horn  200*25 mm
 Net weight  28 KG


Description:


15kHz 2600Watt Ultrasonic Welding equipment is suitable for welding 5-6ply N95 mask, sealing N95 mask, blank flat mask making machine, etc.

The principle of ultrasonic mask machine welding mainly uses ultrasonic technology to transmit ultrasonic energy to the welding zone through the upper welding piece. Due to the large acoustic resistance at the welding interface, which is the interface between the two weldings, local high temperatures will occur. In addition, due to the poor thermal conductivity of plastics, nylon, chemical fibers, non-woven fabrics, multi-layered fabrics, and gold fabrics, they cannot be distributed in time and gather in the welding zone, causing the two contact surfaces to melt rapidly. After applying a certain pressure, Fusion into one. When the ultrasonic wave stops functioning, the pressure is allowed to continue, and the pressure is maintained for a while, so that it solidifies and forms, so that a strong molecular chain is formed to achieve the purpose of welding, and the welding strength can be close to the strength of the raw material body.



Advantage:


1. Short welding times (in the order of tenth of seconds)

2. Aesthetic perfection

3. Waterproof welding stable for a long time

4. Labor savings

5. Energy-efficient

6. Flexibility

7. Possibility of welding even in the presence of foreign bodies

8. Excellent mechanical seal

9. Eliminating the use of solvents and adhesives.


Processing Center:



CE:



Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.



Payment:



Quality:

3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
Ultrasonic Welding Machine

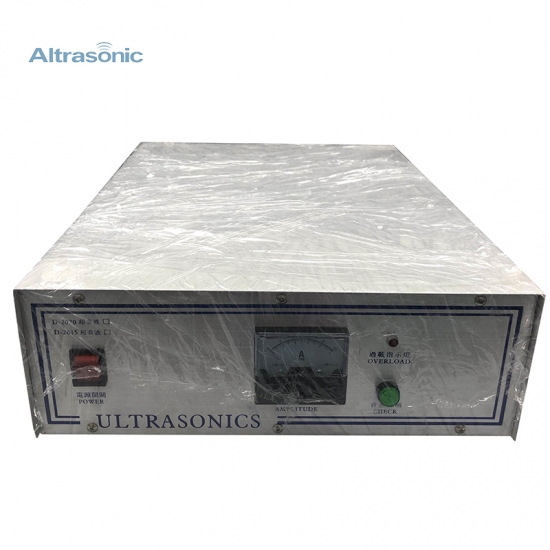

High power ultrasonic generator 2000watt stable welding performance 20khz ultrasonic welding set

Ultrasonic welding sets contains high power generator and transducer and welding horn.

Mask Welding System
2000watt medical mask welding system 110*20mm steel horn

This product is used in the production of medical masks and is installed on automated machinery to achieve stable and rapid welding of non-woven fabrics and melt blown fabrics.

Mould

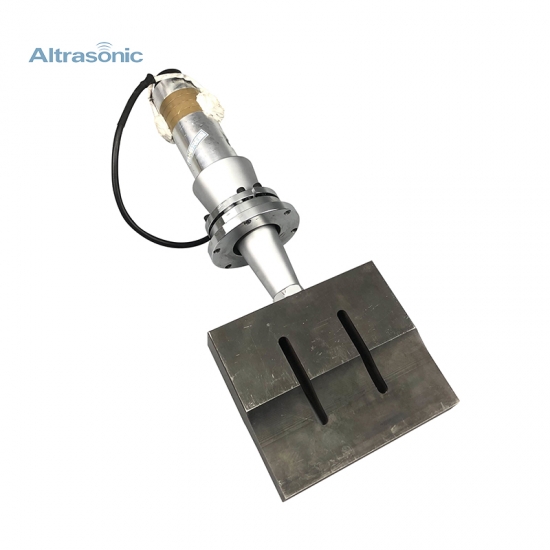

Steel Mould of Ultrasonic Sewing Machine for Non-woven Mask

Ultrasonic steel mold is widely used in weaving enterprises such as non-woven masks.

ultrasonic face mask welding machine

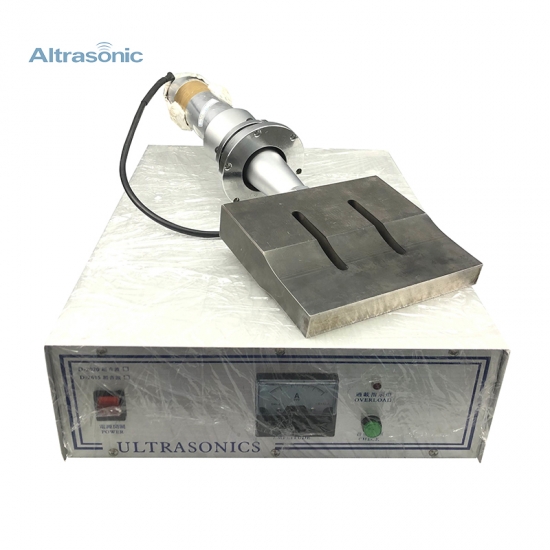

Ultrasonic Welding Unit 15kHz for Welding Non-woven Face Mask
