Ultrasonic 20K Sonochemistry Laboratory System
.
Place of Origin: |
China |
Brand Name: |
Altrasonic |
Certification: |
CE |
Model Number: |
HS2020-L |
Detailed Product Description:
Name: Ultrasonic Sonochemistry Device Frequency: 20Khz Power: 2000W Weight: 35Kg Generator: Digital Mode Control: Remote Control Application: Dispersing Probe: Different Size And Type Optional Capacity: More Than 100L
Lab level
Recommendation of ultrasonic system (exfoliated type)
Item No. |
HS205-L |
HS2020-L |
Capacity |
5L |
20L |
Output power |
500W |
2000W |
Main advantages |
High output intensity, high cavitation effect |
|
Frequency |
20 kHz±1kHz |
Recommendation of ultrasonic system (Dispersing type)
Item No. |
HS2010 |
HS2015 |
HS205-F |
HS2010-F |
HS2020-F |
Capacity |
20L |
30L |
10L |
20L |
30L |
Output power |
1000w |
1500w |
500w |
1000w |
2000w |
Frequency |
20 kHz±1kHz |
20 kHz±1kHz |
20 kHz±1kHz |
20 kHz±1kHz |
20 kHz±1kHz |
Working type |
Reactor / container |
Reactor / container |
Recycling / Flow chamber |
Recycling / Flow chamber |
Recycling / Flow chamber |
Recommendation of ultrasonic machine (Industrial level)
Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack and
pipe fittings
Item No. |
HS-GS10 |
HS-GS25 |
HS-GS50 |
HS-GS100 |
HS-GS200 |
HS-GS300 |
Annual output |
10tons |
25tons |
30tons |
100tons |
200tons |
300tons |
Output Power |
2000w |
2000w |
2000w |
2000w |
2000w |
2000w |
Total Power |
6000w (2000w*3) |
12000w (2000w*6) |
24000w (2000w*12) |
48000w (2000w*24) |
72000w (2000w*36) |
96000w (2000w*48) |
Frequency |
20kHz±1kHz |
20kHz±1kHz |
20kHz±1kHz |
20kHz±1kHz |
20kHz±1kHz |
20kHz±1kHz |
Input Voltage |
110v or 220v |
110v or 220v |
110v or 220v |
110v or 220v |
110v or 220v |
110v or 220v |
Total Volume |
5㎡ |
10㎡ |
20㎡ |
40㎡ |
60㎡ |
80㎡ |
Introduction:
Ultrasound is a very effective processing method in the generation and application of nano-size materials. In general, ultrasonic cavitation in liquids may cause fast and complete degassing: initiate various chemical reactions by generating free chamical ions (radicals); accelerate chemical reactions by facilitating the mixing of reactant; produce highly concentrated emulsions or uniform dispersions of micron-size or nano-size materials. Ultrasound can be tested in lab and bench-up scale before the results are scaled up to the commercial level.
Advantages:
1. Core parts withTitanium materials.

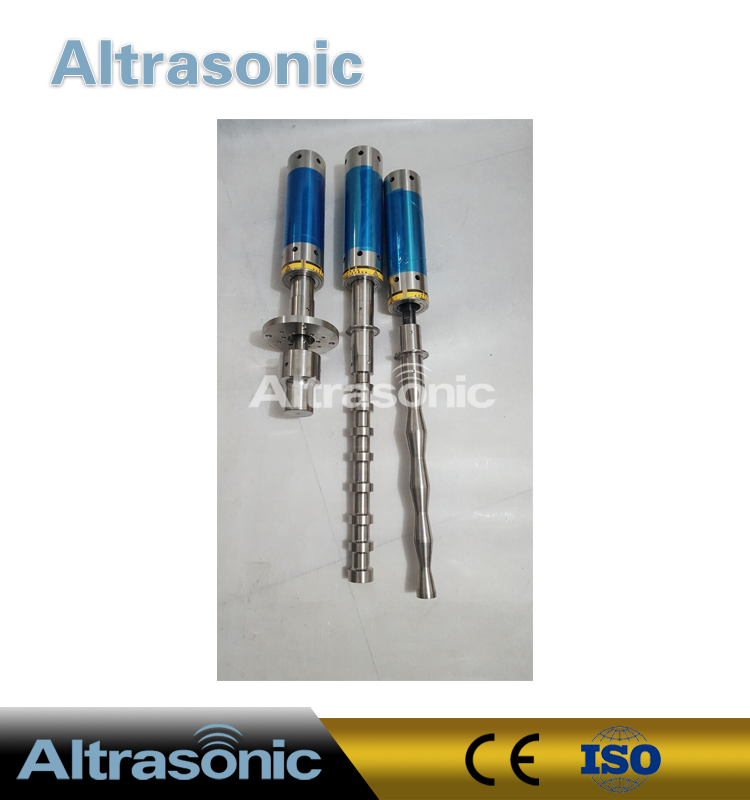

2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. Power adjustable from 1% to 99%
5. Frequency range from 19khz to 21khz
6. Lab and bench-up scale for testing
Innovation:
1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
3. Use of the digitally controlled power, to ensure that all the time in the best condition.
4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
5. The integrated piping made of stainless steel #316.
6. Overall liquid flow-controllable
7. Use network-based CAN-bus technology, all working parameters can have room remote control.
Applications:
· Ultrasnic mixing
· Ultrasonic dispersing and deagglomeration
· Ultrasonic Emulsifying
· Ultrasonic Sonochemistry
