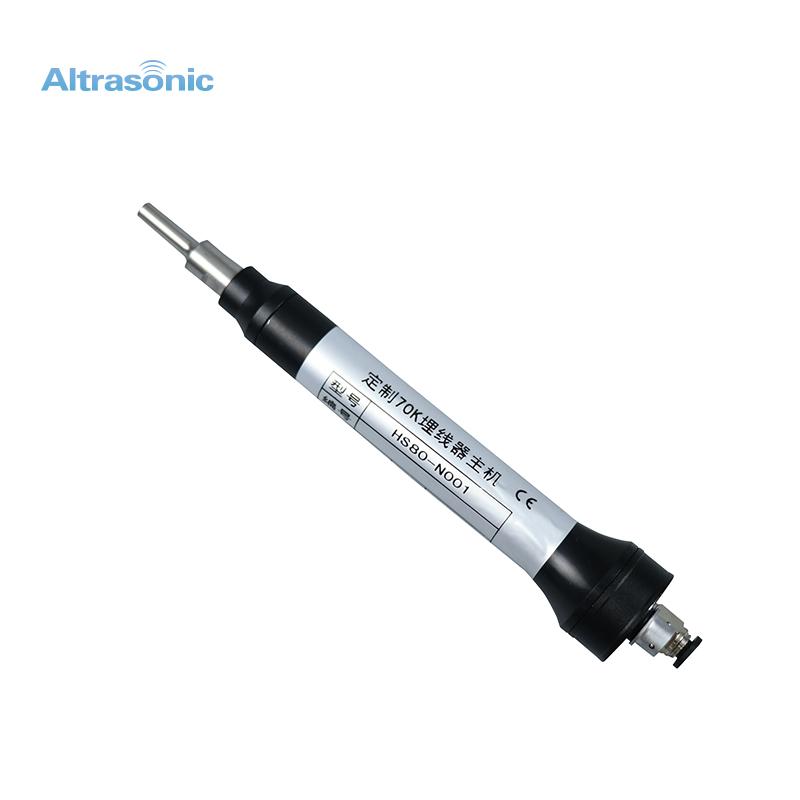

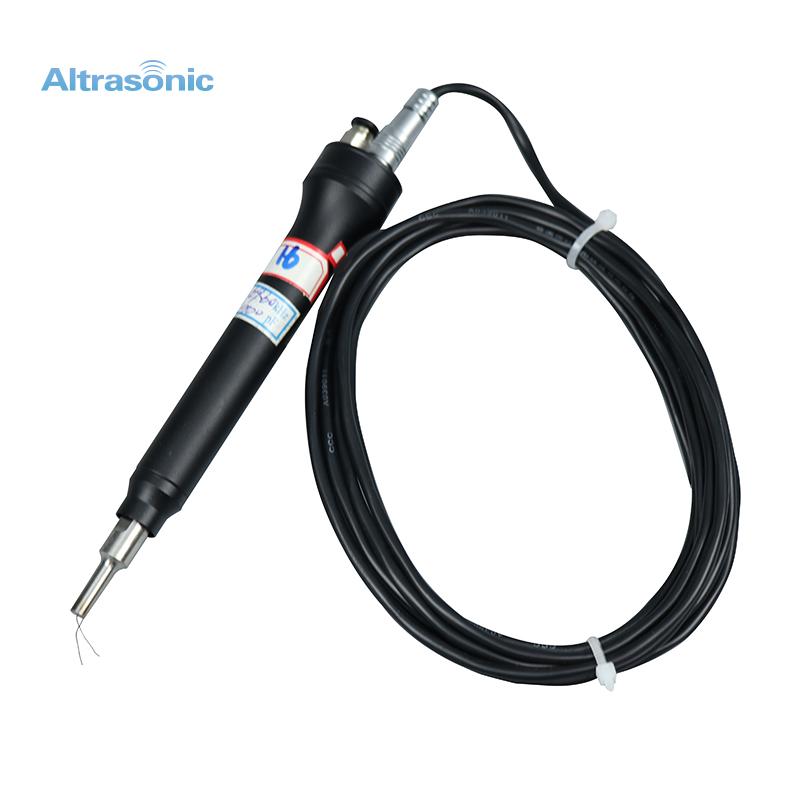

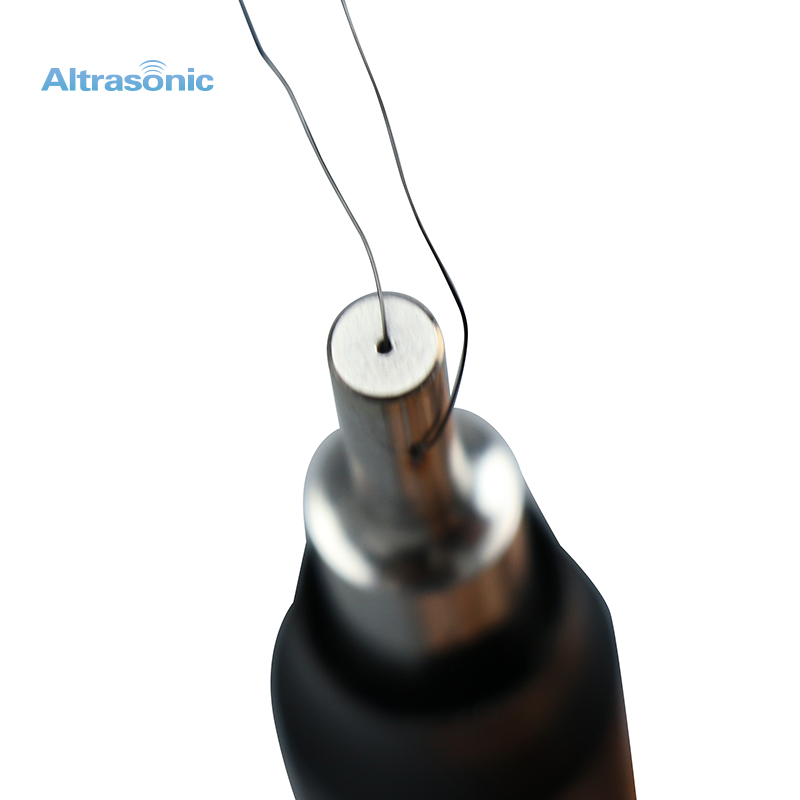

The 70 kHz ultrasonic transducer is applied to embedding the coil wires to the smart card, or RFID card, and other small samples welding applications. Altrasonic R&D department design the small welding horn to weld, embed, or inlay, many kinds of small parts with different type shapes.
Item No.:
HS-1070-2ZPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver and blackShipping port:
Shanghai or NingboLead Time:
7Titanium Ultrasonic Transducer 70 kHz For Smart Card Embedding Machine
Specification:
HS-1070-2Z
M4
Item No
Frequency
70 kHz
Power
100 W
Joint bolt
Diameter of ceramic
10 mm
Quantity of ceramic
2 pcs
Resistance
200 Ω
Amplitude
1 um
Application
Welding
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations. It can be used in various industries.
Advantages:
1. Titanium materials and Aluminum materials optional.
2. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
3. Supply OEM service
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
