20 kHz Ultrasonic Transducer

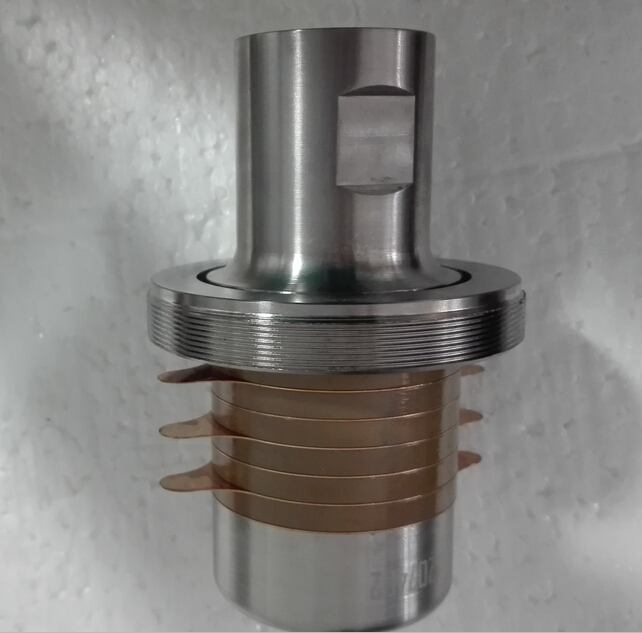

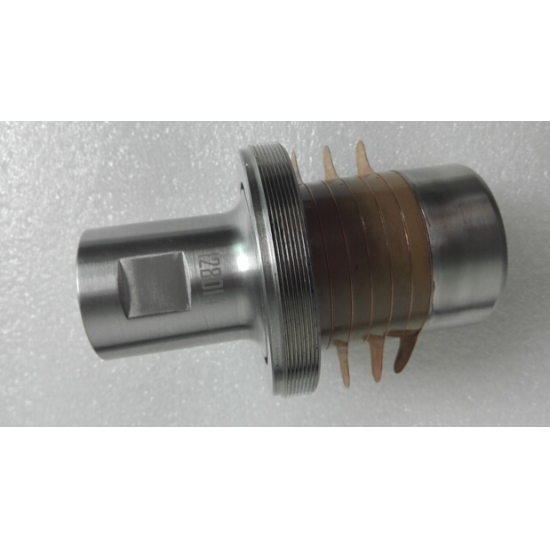

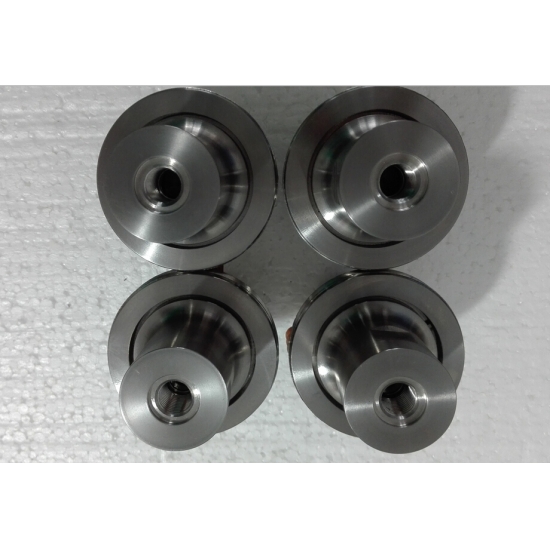

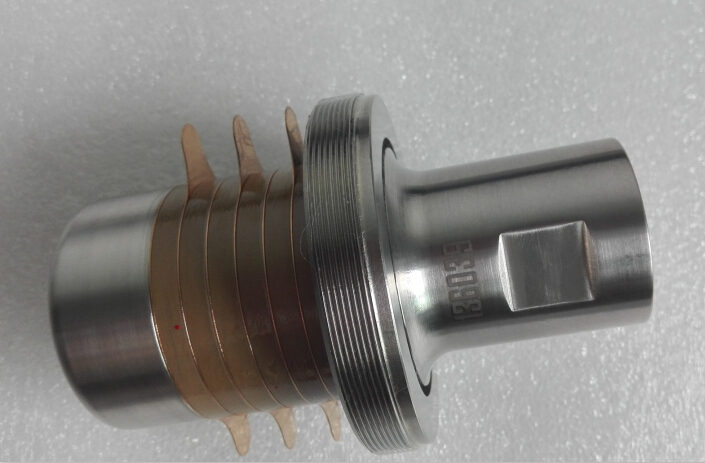

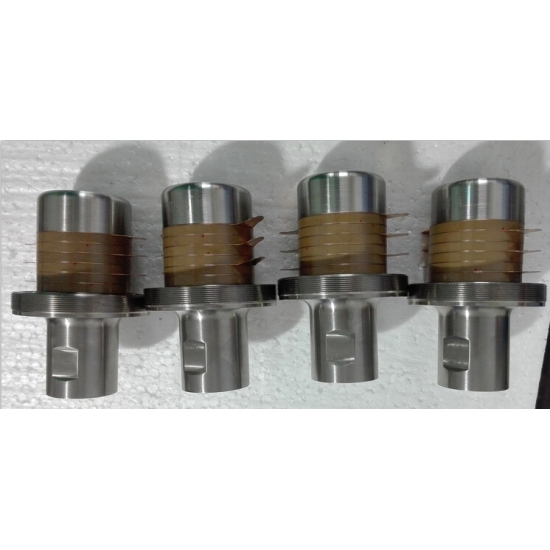

Titanium material Ultrasonic Welding Transducer with 20nf capacitance , 3000watt

Titanium material Ultrasonic Welding Transducer with 20nf capacitance , 3000watt

Titanium material Ultrasonic Welding Transducer with 20nf capacitance , 3000watt

The Titanium material Ultrasonic Welding Transducer with 20nf capacitance , 3000watt is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

  • Item No.:

    HS-5020-6D
  • Payment:

    TT 100% IN ADVANCE
  • Product origin:

    China
  • Min order:

    2
  • Product Details


Specifications:


Model

3030-4Z

Frequency

30 khz

Output power

800 watt

Joint bolt

custom - made

Ceramic disc Diameter

30 mm

Quantity of Ceramic discs

4 pcs

Capacitance

6.2-6.9nf

Amplitude

8 um

Application

welding machine / cutting machine


Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
