Hot sale Ultrasonic metal seam welding system for flat-plate solar collectors

Hot sale Ultrasonic metal seam welding system for flat-plate solar collectors

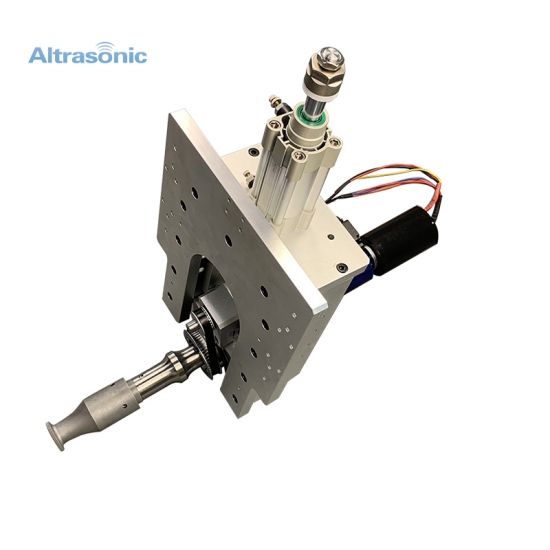

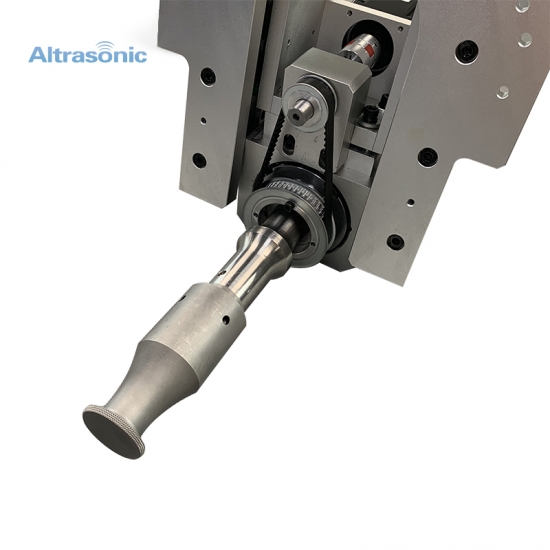

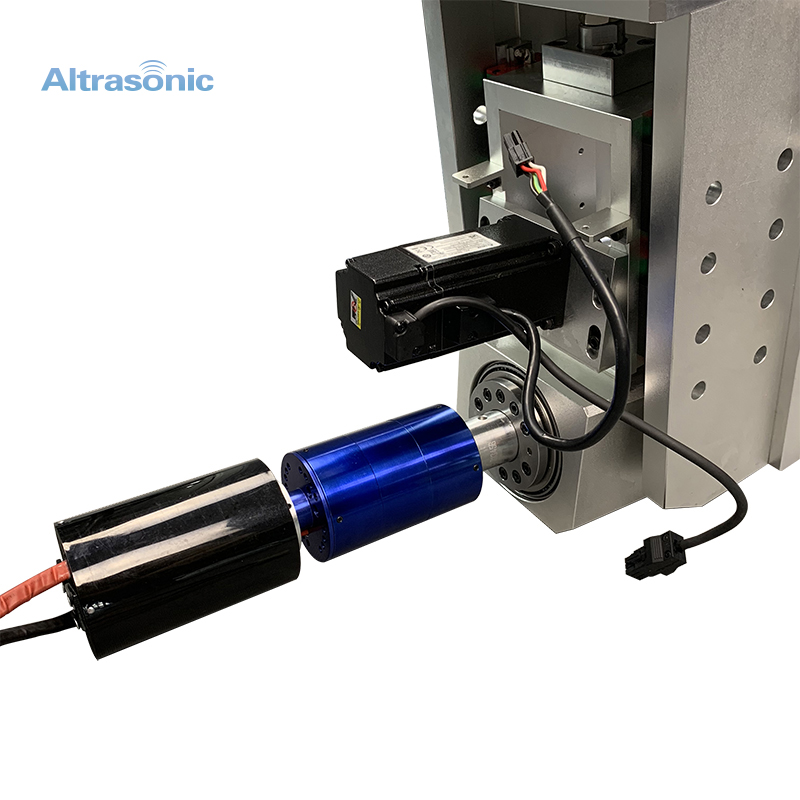

The ultrasonic rotary welding machine is specially designed for solar panel welding.

  • Item No.:

    HS-W20
  • Payment:

    T/T, PayPal, WWestern Union
  • Product origin:

    China
  • Shipping port:

    Shanghai or Ningbo
  • Product Details



Hot sale Ultrasonic metal seam welding system for flat-plate solar collectors


Specification:



 Frequency  20 kHz
 Power  3000 watt
 Gas source  > 0.6 Mpa
 Ultrasonic trigger mode  Time delay mode
 Ultrasonic welding mode   Time mode / Energy mode
 Automatic control method  PLC control
 Equipment weight  1500 KG
 Equipment size  2100*570*1500 mm





Description:


Solar panel roll welding machine is mainly divided into single-point and multi-point welding. Another important use is automatic pole piece welding machine and automatic winding machine supporting ultrasonic welding. Used for the welding of single-layer copper and aluminum foils of the positive and negative poles of lithium ion batteries with nickel sheets or copper sheets or aluminum sheets. The copper foil is about 0.08mm, the aluminum foil is about 0.01mm, and the nickel and aluminum sheets are about 0.1mm.



Application:


Ultrasonic solar metal seam welding machine uses ultrasonic metal seam welding technology to weld metal sheets, metal foils and metal tubes. It is used in solar collectors, solar panels, solar panels, amorphous silicon solar panels, and copper panels. Welding with copper tube, copper sheet and copper tube, copper foil and copper tube welding, aluminum plate and copper tube welding, aluminum-plastic composite tube, heating tube of electric heating appliance, copper-aluminum welding, aluminum corrugated board processing, solar flat fin, electric heating Appliances, solar water heaters, copper and aluminum splicing, etc.






Workshop:


CE:


Shipping:


Payment:
