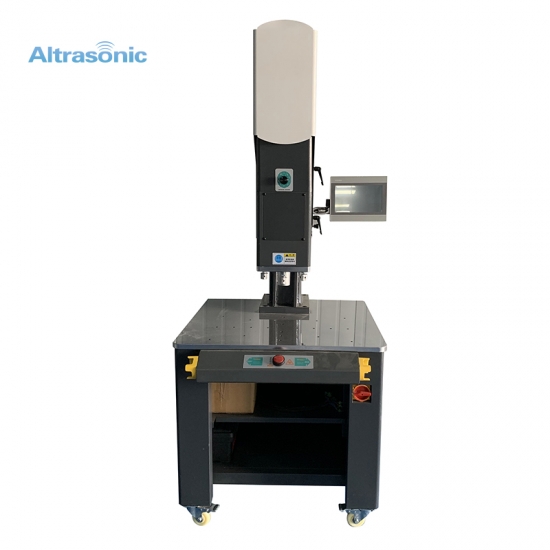

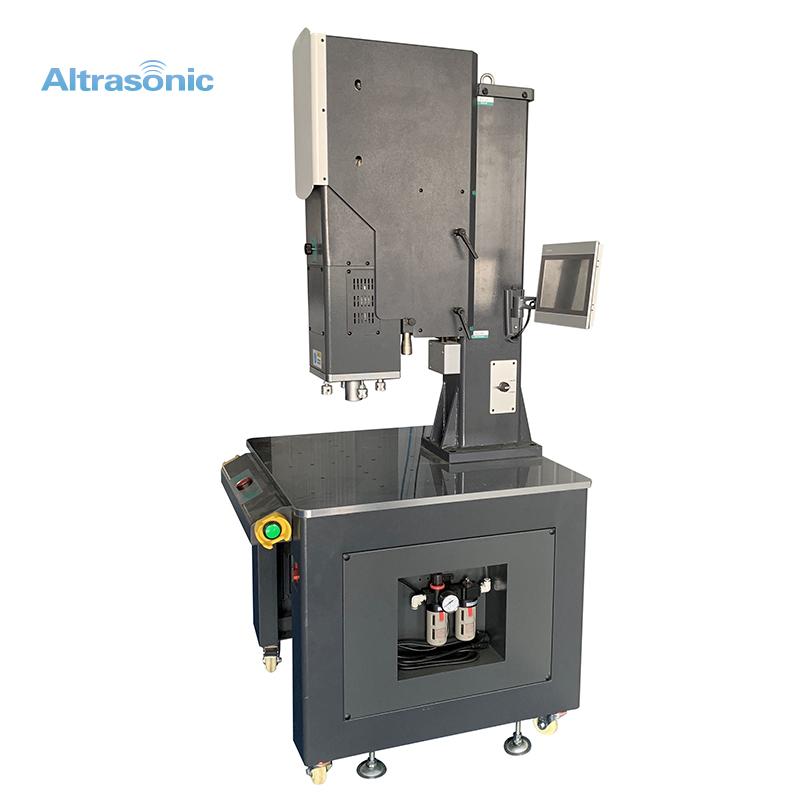

Automatic machienry ultrasonic plastic welder.
Item No.:
HS-W15Payment:
T/T, PayPal, WWestern UnionProduct origin:
ChinaColor:
SilverShipping port:
Shanghai or Ningbo
High Power Thermoplastic Welder Working Horn Customization
Description:
Ultrasonic plastic welding machine can be used in various applications. When welding plastics, the interface of the two part is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint.
If you need a free consultation, please kindly send inquiry to us, our technical department will evaluate and feedback to you immediately.
Specification:
Item No
HS-W15
Frequency
15 kHz
Power
4200 watt
Range of welding time
0.05-10/sec
Air supply requirements
clean dry compressed air
Maximum pressure
2.89 KN
Maximum stroke
100 mm
Beats
50/Min
Dimension
476mm*736mm*1524mm
Application:
1. Toy Industry: toy gun, water gun, telephone and rag baby, etc;
2. Electronic Industry: gum case of watch, nylon watch band, calculator, sound box wraps hull and cell phone battery, etc;
3. Automotive Industry: interior components (side door trim, center console), engine compartment components (cylinder head cover, engine covers), lighting, filters and acoustic foams, etc;
4. Packing Industry: disguise box, PVC packing box and toothpaste tube, etc;
5. General Business Ware: Inkjet cartridge, video cassette rack, tape box and computer disk, etc;
6. Medical Industry: sterile package sealing, equipment component assembly, syringes and filters, etc.
Workshop:
CE:
Shipping:
Payment:
