The 35 kHz ultrasonic transducer can be used in welding, sewing, cutting and etc and we can supply Ultrasonic welding transducer/converter to replace some famous brand, such as Branson/Telsonic/Rinco/Dukane and obtained well reputation.
Item No.:
HS-2535-2ZPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver, black and yellowShipping port:
Shanghai or NingboLead Time:

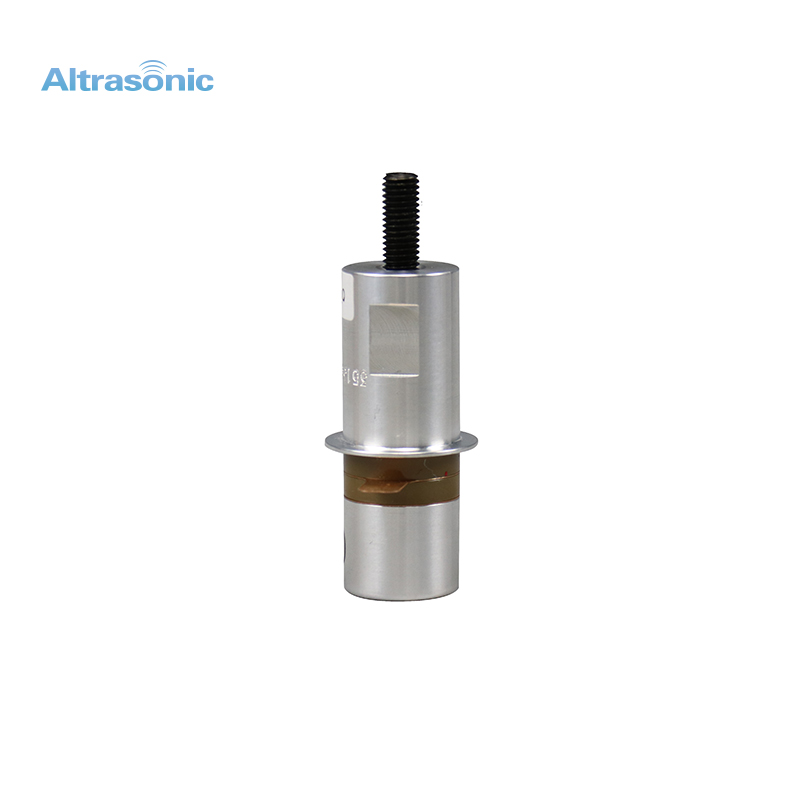

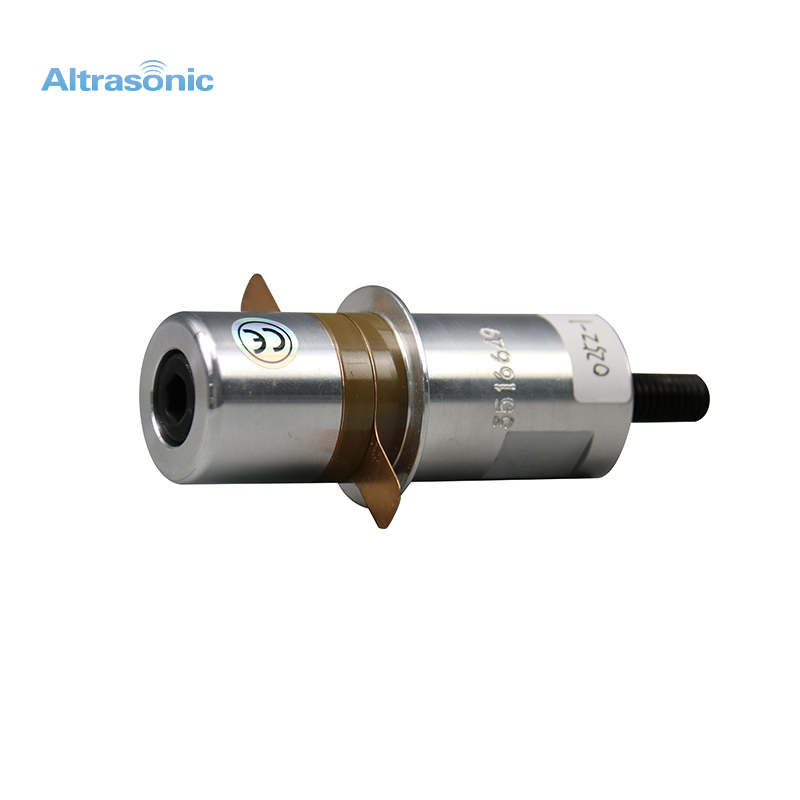

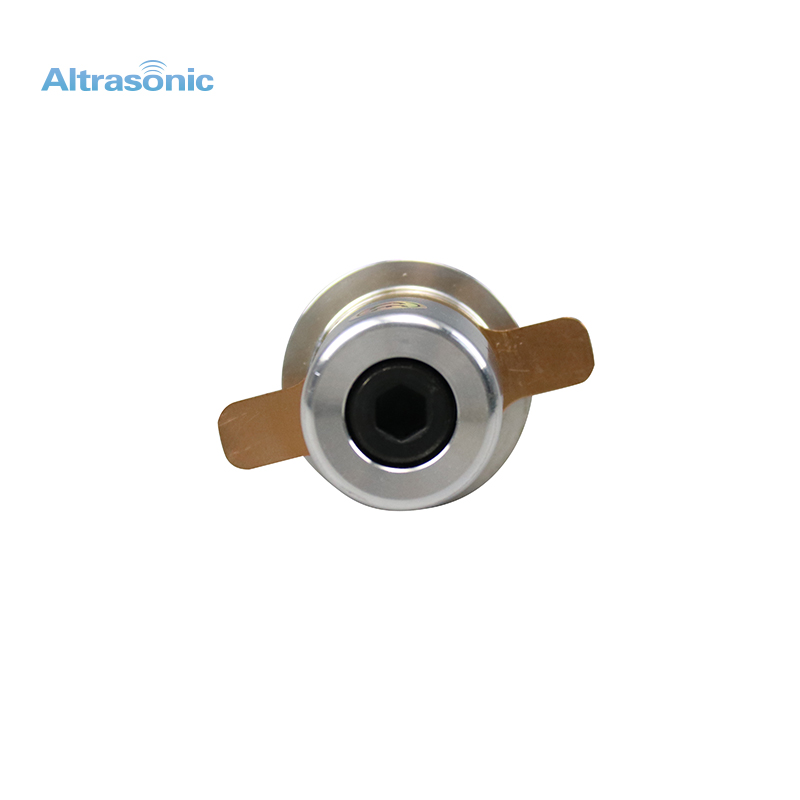

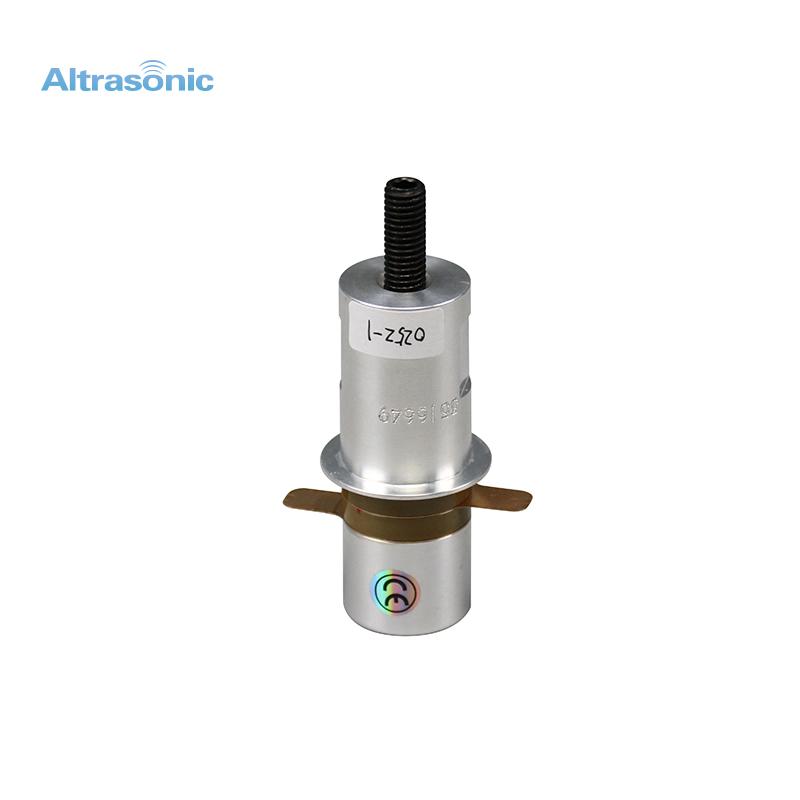

7High Efficiency 35 khz 400 w Piezoelectric Ceramic Ultrasonic Transducer
Specification:
HS-2535-2Z
M8*1
Item No
Frequency
35 kHz
Power
400 W
Joint bolt
Diameter of ceramic
25 mm
Quantity of ceramic
2 pcs
Resistance
40 Ω
Amplitude
2~4 um
Application
Welding
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Advantages:
1. Imported ceramic discs and superior aluminum raw materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
