Herrmann ultrasonic transducer can be used in Herrmann ultrasonic equipment

  • Item No.:

    HS-HM35

  • Payment:

    T/T, Paypal, Western Union

  • Product origin:

    China

  • Color:

    Silver

  • Shipping port:

    Shanghai or Ningbo
Contact us

  • Product Details


Herrmann ultrasonic converter replacement Custom booster horn for herrmann welding machine




Specification:


 Item No.  HS-HM35
 Frequency  35kHz
 Power  1000Watt
 Amplitude  10um
 Qty of Ceramic  4-6pcs
 Capacitance  5000-8000pF
 Connect Screw  M18*1.25





Description:

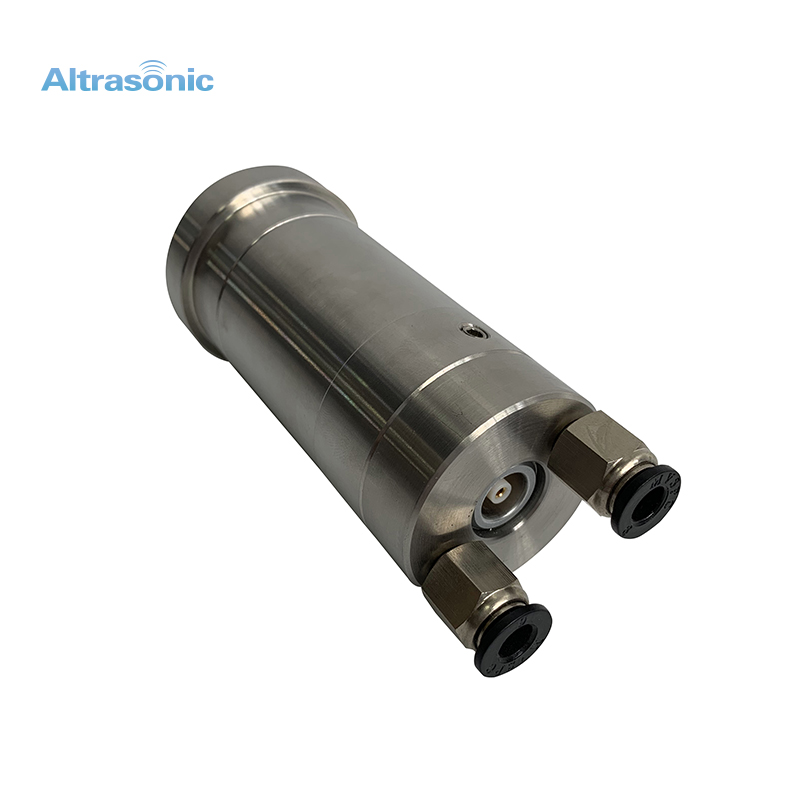

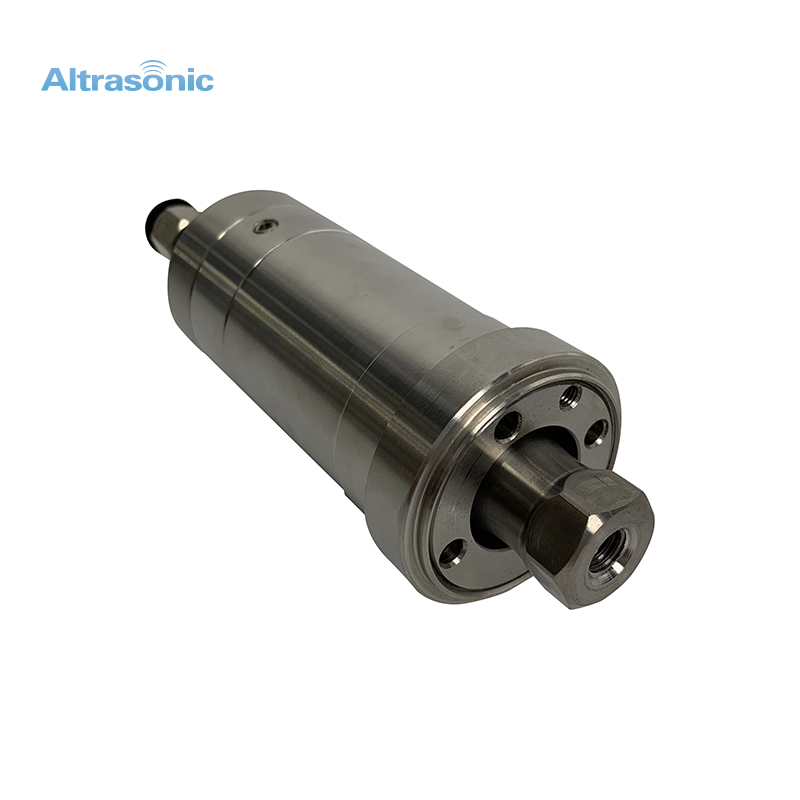

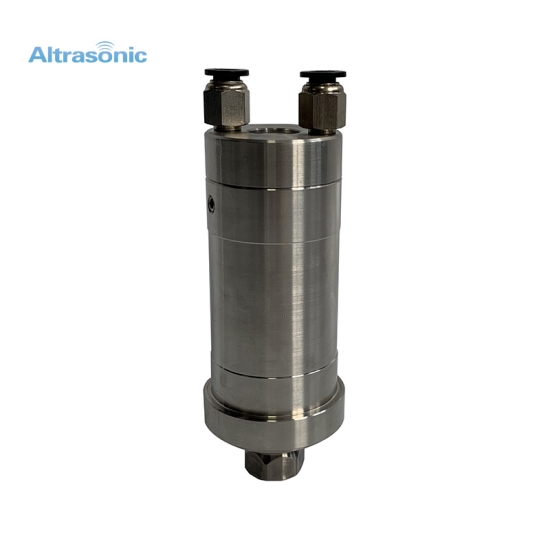

The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Typeis applied to Herrmann type ultrasonic welding machine. The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Advantage:


1. High efficiency

2. Large amplitude

3. Low heat

4. Stable output unaffected by variations in load

5. Competitive pricing

6. Fast delivery

Workshop:



CE:



Shipping:



Payment:

Hot Tags :

ultrasonic welding parts 35k converter replacement Herrmann Replacement transducer
