fast shippment 4pcs Piezoelectric Ceramic Ultrasonic Welding Transducer Replace Telsonic 20kHz

fast shippment 4pcs Piezoelectric Ceramic Ultrasonic Welding Transducer Replace Telsonic 20kHz

Altrasonic supply high-quality Telsonic replacement transducers, which can be customized.

  • Item No.:

    HS-TL20
  • Payment:

    T/T, PayPal, West Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

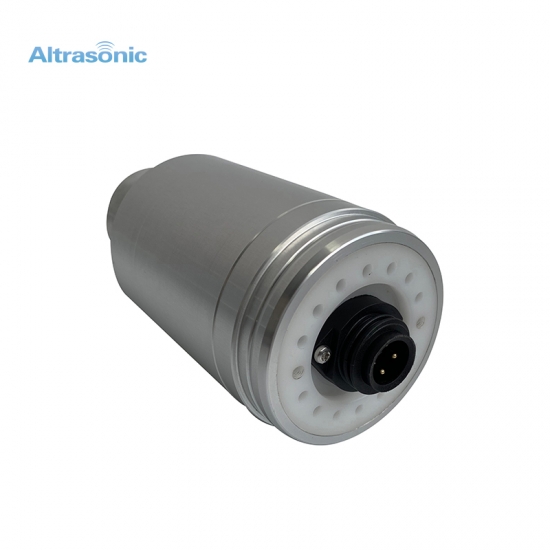

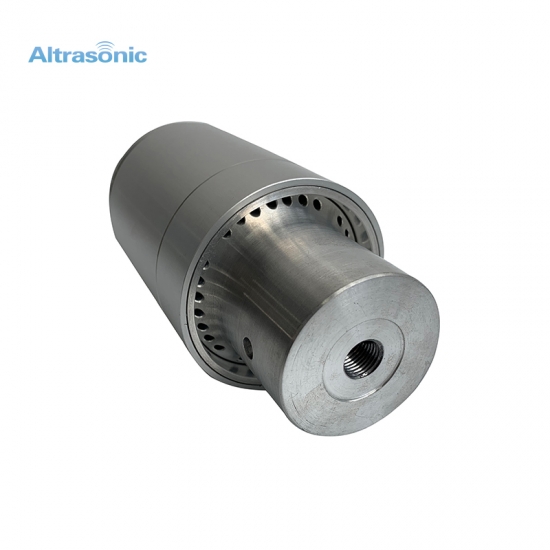

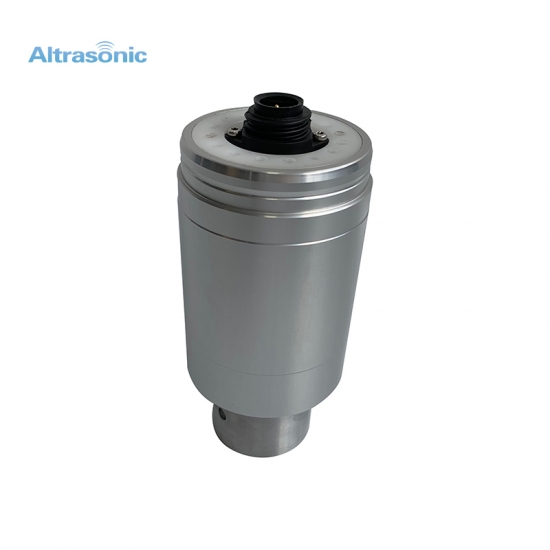

4pcs Piezoelectric Ceramic Ultrasonic Welding Transducer Replace Telsonic 20kHz



Specification:


 Item No.  HS-TL20
 Frequency  20kHz
 Power  2500Watt
 Capacitance  10000pF
 Diameter of Ceramic  50 mm
 Qty of Ceramic  4 pcs
 Connecr Screw  1/2-20UNF




Description:


An ultrasonic transducer itself is a device that is capable of generating and receiving ultrasonic vibrations. An ultrasonic transducer is made up of an active element, a backing, and wearplate. The active element is a piezoelectric or single crystal material which converts electrical energy to ultrasonic energy. It will also then receives back ultrasonic energy and converts it to electrical energy. The electrical energy pulse is generated from an instrument such as a flaw detector.



Advantage:


1. The transducer is assembled and debugged by a master with more than 30 years of installation experience, and the assembly process is excellent, which is the standard of the ultrasonic industry.


2. The consistency of the parameters of the transducer is very high, which provides convenience for customers in matching the ultrasonic power.


3. The impedance is very small, less than 7 ohms, which greatly reduces the heat and loss of the transducer.


4. The output amplitude is large, greater than or equal to 10 microns.


5. The energy conversion rate is greater than 95%.


6. The test link is very rigorous, and the aging time is at least one week to ensure the stability of the transducer parameters.

Workshop:

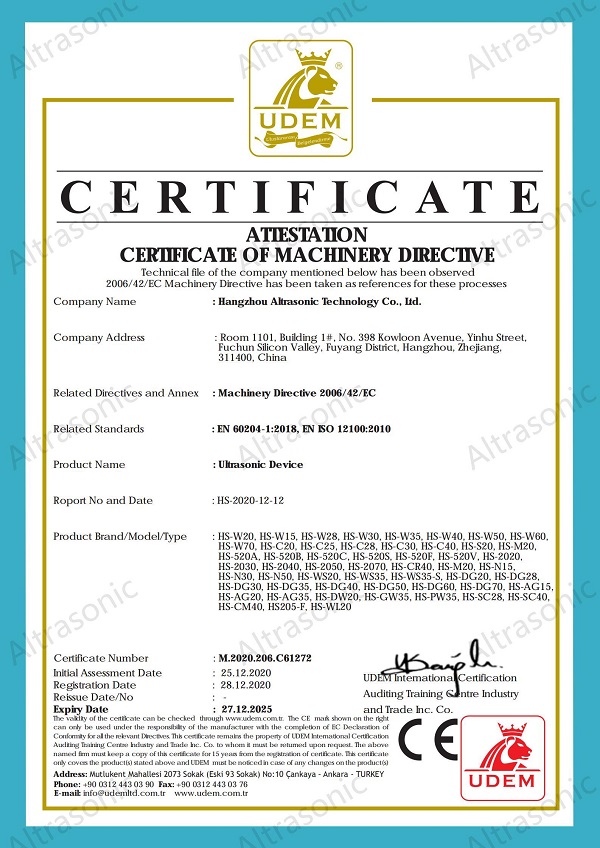

CE:


Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.


Payment:


Quality:

3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
