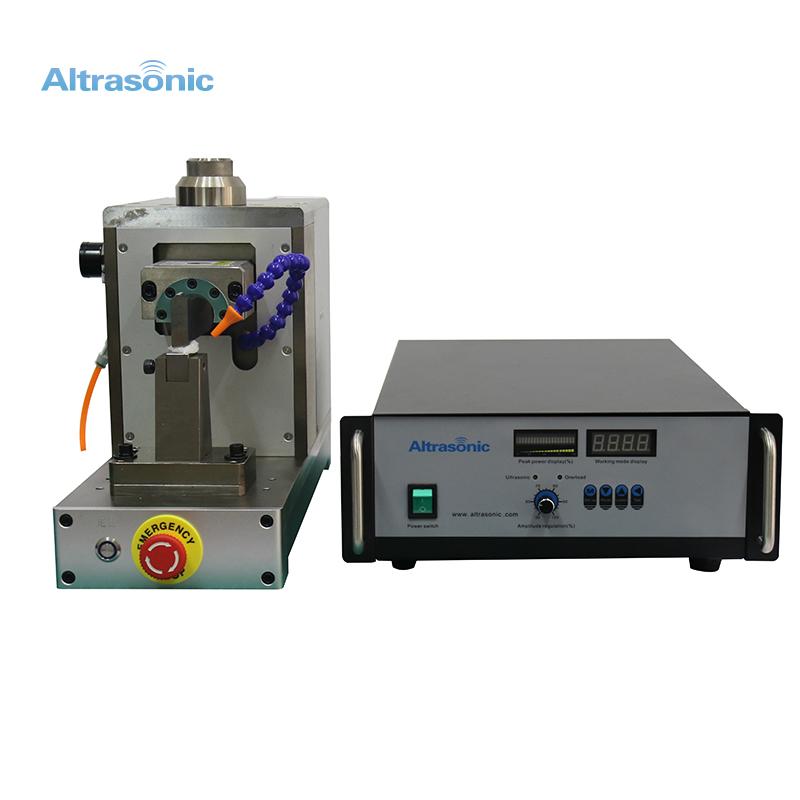

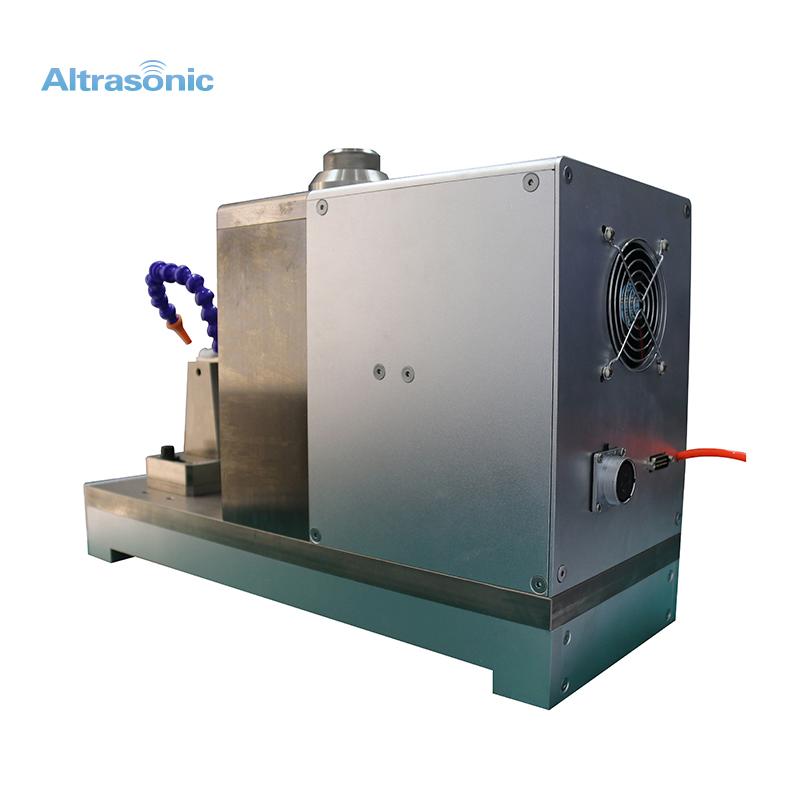

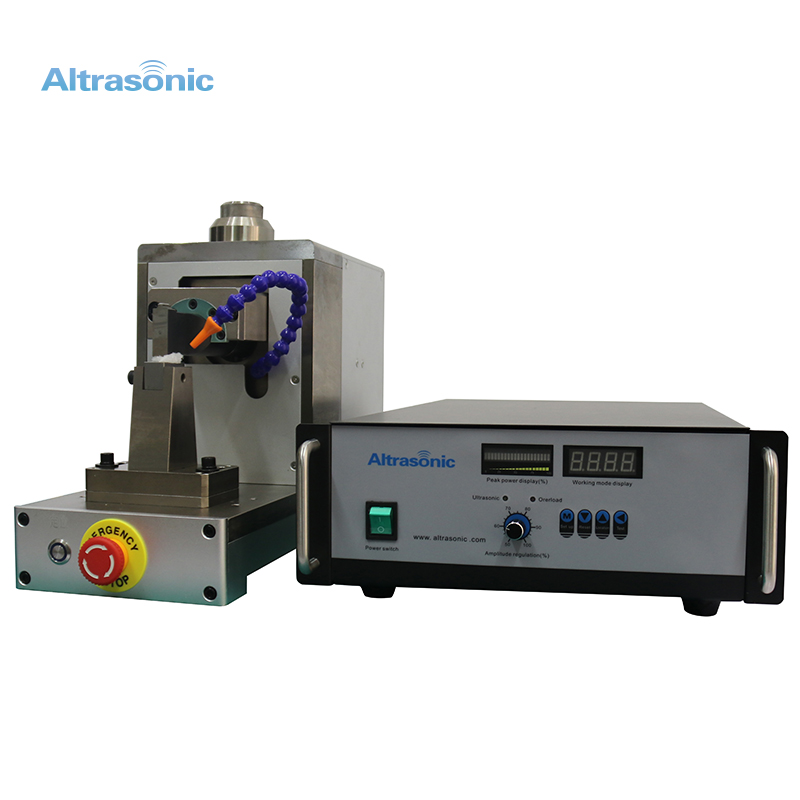

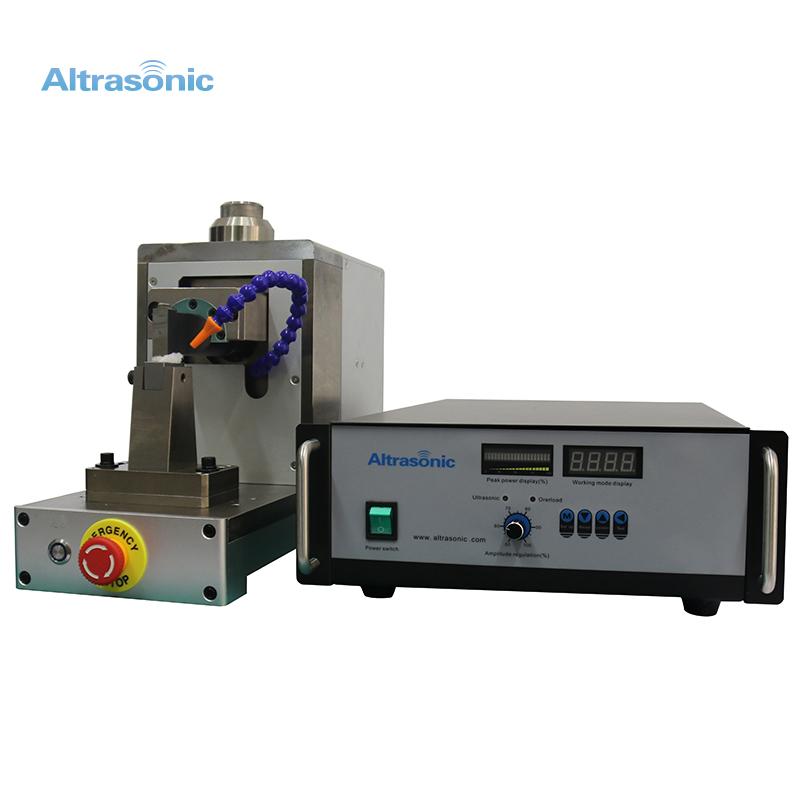

Easy to operate no need to add auxiliary materials Ultrasonic metal spot welding

Easy to operate no need to add auxiliary materials Ultrasonic metal spot welding

working principle:

The ultrasonic metal spot welder is a metal surface that converts the ultrasonic vibration into friction energy by ultrasonic high-frequency vibration friction principles to the metal surface of the ultrasonic vibration. The spot welding is soldered at the individual point of the contact surface at the joint, in friction When the heat is generated, the pressure is applied, so that the metal structure molecule is sufficiently activated and forms fusion between the molecular layers, and the metal of the center most hot region is quickly heated to a high plastic or melting state, forming a lens-shaped liquid molten pool. . Continue to maintain pressure, disconnect current, after metal cooling, form a solder joint.

Features:

1. Adopt brand new machine design, small size, light weight, beautiful appearance;

2, easy to operate, no need to add auxiliary materials, fast welding speed, high energy efficiency;

3, independent intellectual property welding head, comparable to the world famous brand, reduce the cost of use;

4, easy to operate, built-in electronic protection circuit, safe;

5. Similar welding of metal can be used to perform single or multi-point welding for non-ferrous metals.

Application:

1. Power battery multi-layer positive, negative welding, nickel-hydrogen battery nickel network and nickel sheet welding;

2, lithium battery, polymer battery copper foil and nickel sheet welding, aluminum foil and aluminum sheet welding, aluminum sheets and nickel sheets;

3, car wire harness, wire head forming, electric wire welding, multi-wire mutually welded wire knot, copper, aluminum wire conversion Download Adobe Reader

4, wire, cable and famous electronic components, contacts, connector, terminal welding;

5, solar cell, flat solar heat absorbing plate, aluminum-plastic composite tube, copper, aluminum plate stitching;

6, electromagnetic switches, high current contacts, contacts, and xenis metal sheets such as non-fused switches.

Workshop:

CE:

Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

Payment:
