Place of Origin:Zhejiang, China
Brand Name:Altrasonic
Condition:New
Voltage:220V/110V
Frequency:20KHZ, 20 khz
Dimensions:25*17*18
Usage:POWER CONVERTER
Warranty:1 Year
After-sales Service Provided:Online support, Video technical support
Key Selling Points:Long Service Life
Applicable Industries:Other
Weight (KG):2 KG
Power (kW):2
Marketing Type:New Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Model:HSD41C30
Output power:2000 watt
Joint bolt:1/2-20 UNF
Ceramic disc Diameter:50mm
Qty of ceramic discs:4pcs
Capacitance:11-17 nf
Amplitude:20 um
Application:Plastic welding machine
After Warranty Service:Video technical support
Item No.:
HS-D41C30Payment:
T/T, PayPal, WWestern UnionProduct origin:
ChinaShipping port:
Shanghai or Ningbo
Specification:
Item No |
D41C30 |
Frequency | 2000W |
Power | 20KHZ |
Voltage |
220V/110V |
Weight (KG) | 2KG |
Description:

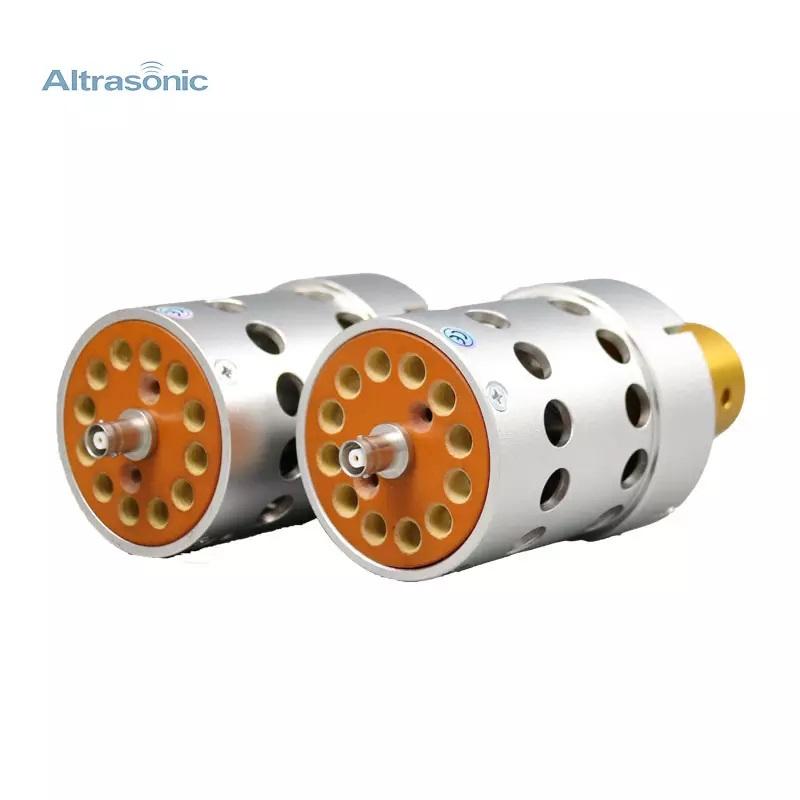

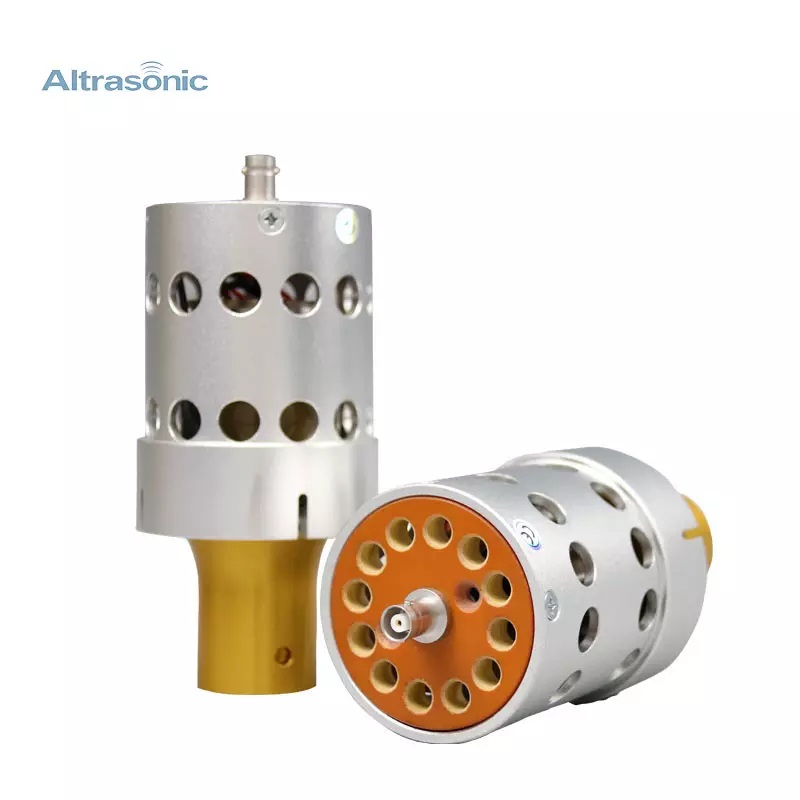

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
