Easy opeartion Industrial grade jewelry cleaner solution for ultrasonic Description: The cleaning machine is composed of two parts: an ultrasonic generator and a cleaning tank. The generator adopts an imported high-power power module with stable performance.
Item No.:
HS-CM-DPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaShipping port:
Shanghai or Ningbo

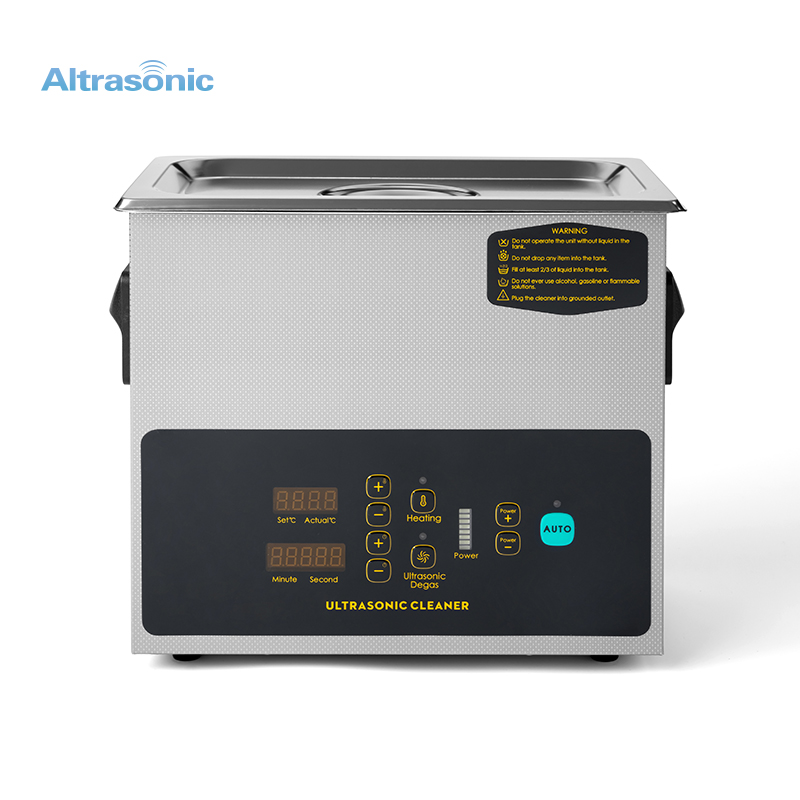

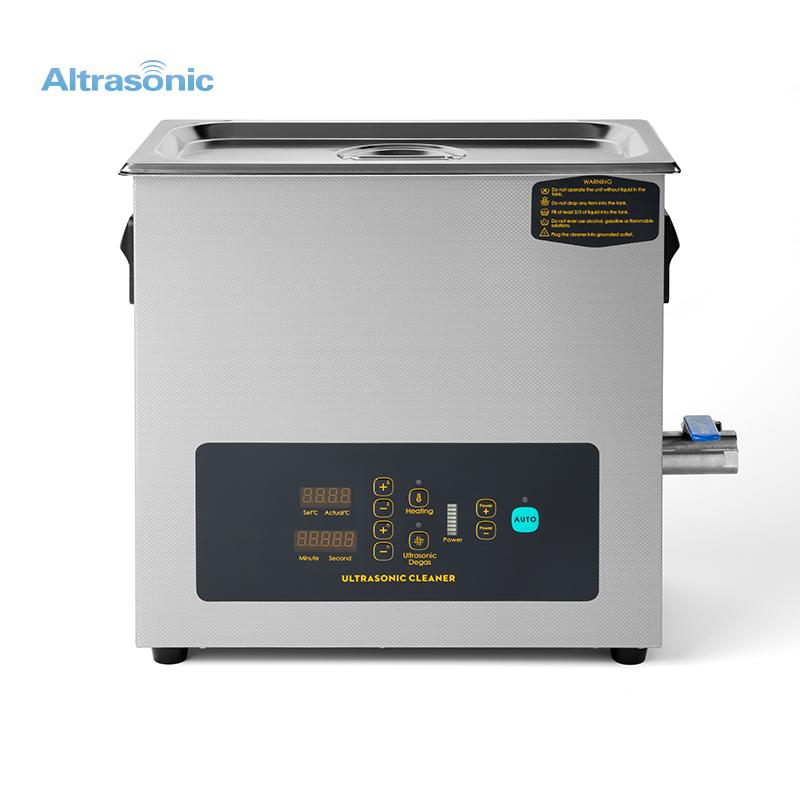

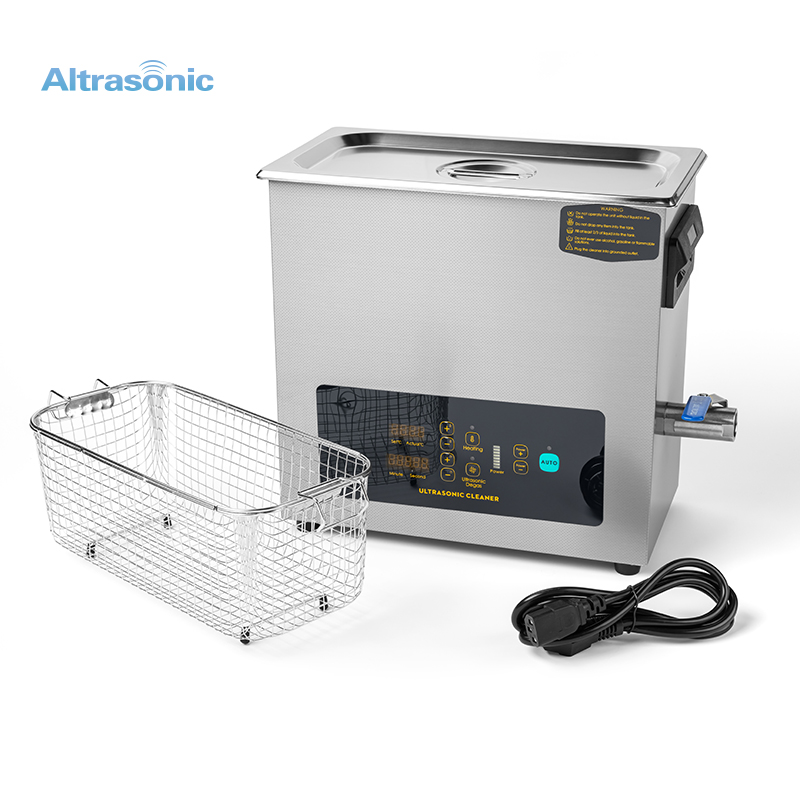

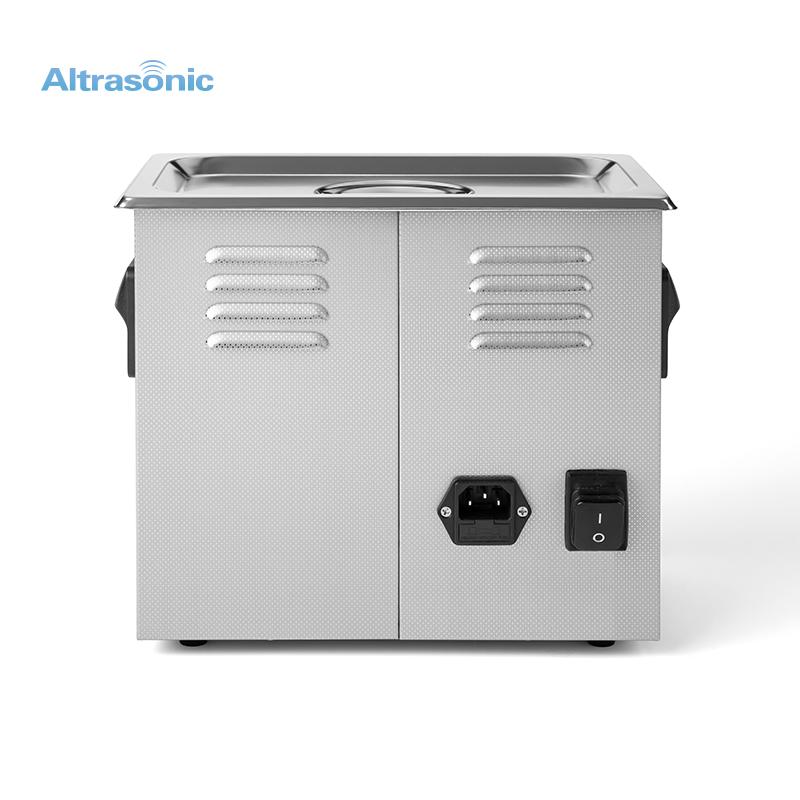

D-series Portable Ultrasonic Cleaning Machine For Industrial Parts Cleaning
Specification:
Model
Inner Size
(L*W*H)mm
Outer Size
(L*W*H)mm
Capacity
(L)
Power
(W)
Frequency
(Khz)
Heating power
(W)
Time
(Min)
Heating temperature
(°C)
Packing size(mm)
Net weight
(Kg)
Gross weight
(Kg)
Package
(unit)
HS-CM-D3
240*140*100
270*170*230
3
120
100
0~480
0〜80
330*240*315
3.2
3.7
1
HS-CM-D4
300*155*100
330*180*230
4
120
100
0~480
0〜80
400*240*315
3.7
4.2
1
HS-CM-D6
300*155*150
370*180*320
6
180
300
0~480
0〜80
450*255*400
5. 4
6.3
1
HS-CM-D10
300*240*150
370*270*320
10
240
40KHZ
500
0~480
0〜80
450*340*400
7. 4
8.3
1
HS-CM-D15
330*300*150
400*325*320
15
360
500
0~480
0〜80
450*390*410
9.4
10.3
1
HS-CM-D22
500*300*150
580*325*320
22
480
500
0~480
0〜80
655*420*415
13.3
14.9
1
HS-CM-D30
500*300*200
580*325*380
30
600
500
0~480
0〜80
655*420*465
13. 8
15. 4
1
40KHZ
40KHZ
40KHZ
40KHZ
40KHZ
40KHZ
Advantage:
1. The knob adjusts the ultrasonic working time and heating temperature, the operation is simple and durable, and the service life is long;
2. Imported Alcoa high-Q ultrasonic devices, matched with dual waterproof circuits, effectively improve the effect of ultrasonic cavitation;
3. The average value of noise generated by ultrasonic oscillation is effectively reduced;
4. The use of new heating methods can effectively improve the heating effect;
5. Improve the level of water leakage prevention in structural technology, and at the same time be compatible with invalid heat energy export structure;
6. Embossed stainless steel shell, and SUS304 thick material is used for the inner liner;
7. Models 6L and above are equipped with drainage system and non-slip handle;
8. With CE/ROHs/FCC/PSE and other product certifications.
Applications:
Suitable for optical, mechanical, motor insurance, electronics, jewelery, metal parts, assemblies, electronic tools, circuit boards and other cleaning applications.
This product is the best choice for object cleaning slits, grooves, deep hole, blind hole, surface cleaning, remove oil,, rust, oxides, etc.
In addition to cleaning applications, mainly for the extraction of agriculture, food, cosmetics and other industry-specific cleaning utensils and ingredients for the extraction, emulsification applications.
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
