The cutting blade length 215mm and width 24mm.
Project Number: HS-C28;
Frequency: 28KHz;
Power: 500W;
Generator size: 155×265×170;
Tool size: Φ40×170;
Item No.:
HS-C28Payment:
T/T, West union, PaypalProduct origin:
ChinaColor:
WhiteShipping port:
Hangzhou or ShanghaiLead Time:
7

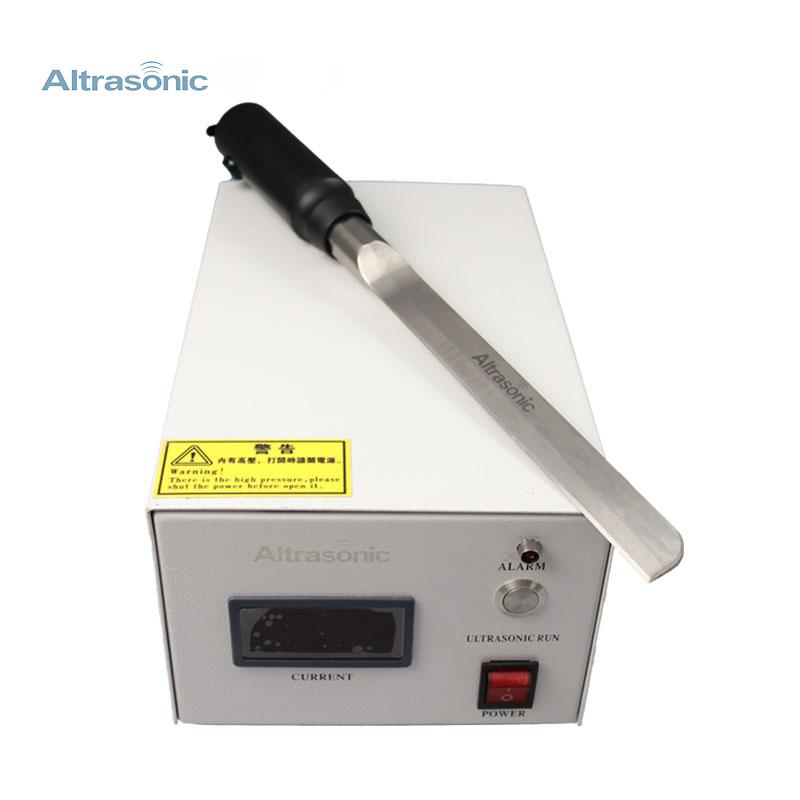

Best Choice Ultrasonic Bread Knife for Bread
Specification:
| Item No | HS-C28 |
| Frequency | 28kHz |
| Power | 500watt |
| Generator | Analog |

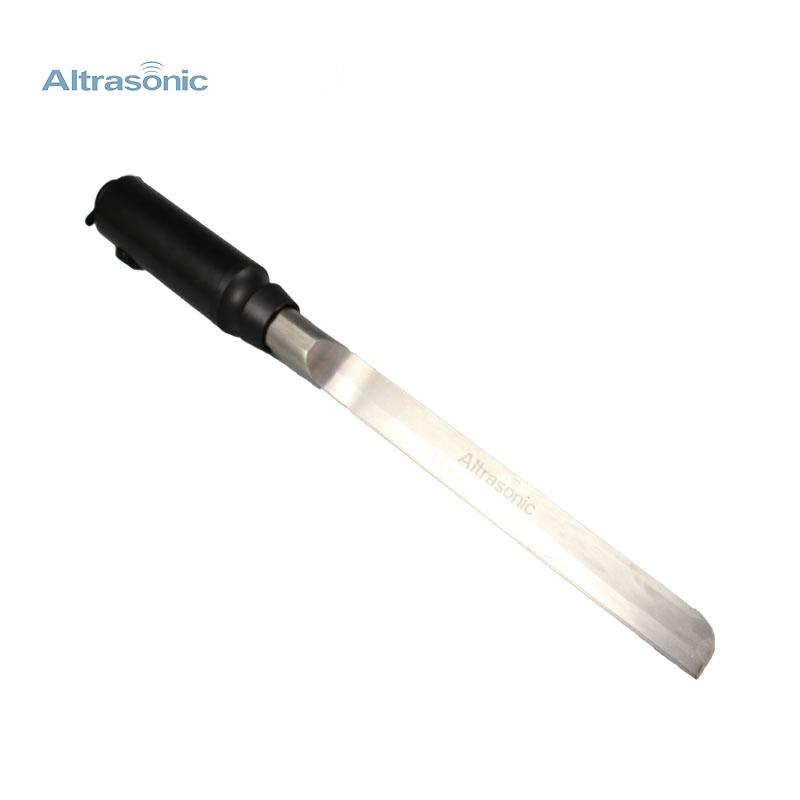

| Cutting blade length | 215 mm |
| Material of cutting blade | Titanium Alloy |
| Accessories | Foot switch, additional blade |
| Application | food grade |
| Net weight | 12 KG |
Description:
The principle of ultrasonic food cutter is completely different from traditional cutter. It uses ultrasonic energy to melt the part of the cutting material, so as to achieve the purpose of cutting food. Therefore, ultrasonic cutting does not require sharp cutting edges, does not require a lot of pressure, and will not cause vulcanization damage.
We provide high tech ultrasonic food cutting machine, for cutting food with various materials.
There are available cutting tools in various frequencies and powers, or made to your own design.
If you need a free consultation, pls send inquiry, our technical deparment will evaluate and recommend suitable machine to you.
Advantage:
1. Ergonomic design
2. Can be controlled manually, or by foot switch
3. Suitable for cutting most meat, poultry, vegetable and fruit materials
4. The blade is not sharp, safe and durable
Equipment maintenance:
1. Attention should be paid to the following matters when repairing ultrasonic generator (driving power supply).
Turn off the vibration power supply and remove the power plug. Remove the cover and discharge the large electrolytic capacitor. There is also high voltage residual electricity on the transducer. It should also be discharged (directly connected to the positive and negative poles with wires).
2. grounding to be thorough.
3. Confirm whether the power switch is OFF before connecting the power plug.
4. In order to prevent hearing damage during vibration, the processor should use hearing protector.
