Automobile Wire Harness Welding Equipment Copper Wire Ultrasonic Welding Machine

Automobile Wire Harness Welding Equipment Copper Wire Ultrasonic Welding Machine

Ultrasonic wire harness welding machines are widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields.

  • Item No.:

    HS-2050A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

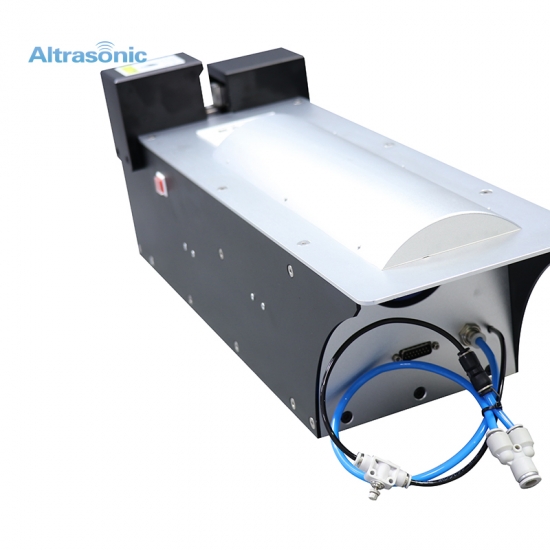

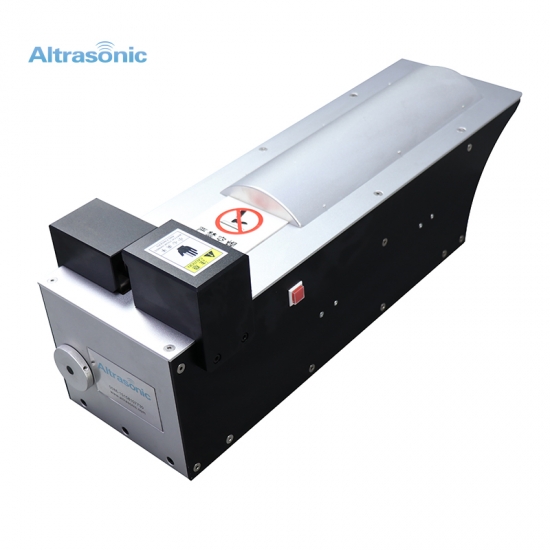

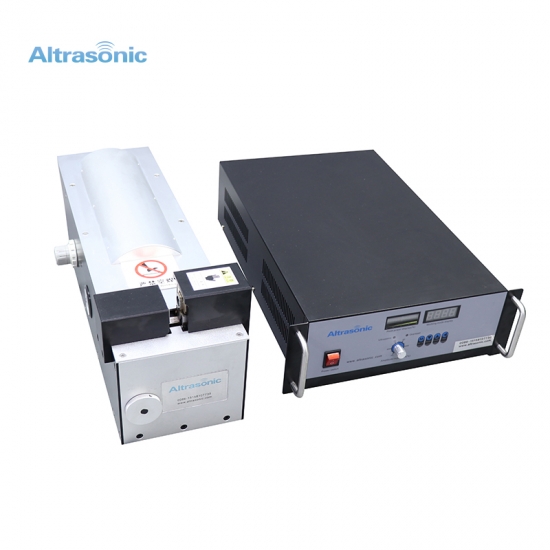

Automobile Wire Harness Welding Equipment Copper Wire Ultrasonic Welding Machine


Specifications:


 Item No  HS-2050A
 Frequency  20 kHz
 Power  5000 watt
 Welding area  0-35 mm²
 Working air pressure  0.05-0.9 MPa
 Weight  55 KG
 Generator size  500*400*160 mm
 Machine size  600*200*260 mm


Characteristic:


1. The power of the equipment is divided into 2000W, 3000W, 4000W, and the welding wire harness area is from 0.5mm²-50mm², which can be welded at one time. (We will continue to develop a wire harness welding machine that welds a larger beam square).


2. The integrated design of the whole machine, the structure of the equipment is small in size, light in weight, beautiful in appearance, and easy to move; PLL phase-locked frequency automatic tracking technology is adopted to ensure the welding effect of the wiring harness and the wiring harness, the wiring harness and the terminal end piece;



3. The wiring harness can be connected at the minimum cost; the electrical conductivity after soldering is good, the resistivity is low or almost zero; the soldering time is short, and no flux, gas, or solder is required. It is the current environmentally friendly soldering process and advanced electrical connection process



Application:


The ultrasonic wire harness welding machine can weld the wire harness forming of 0.5mm²-50mm². It is mainly used in automobile wiring harness connecting wire lap welding, electric wire head forming, wire mutual welding, multiple wires butt joint and mutual welding into wire knots.


Ultrasonic wire harness welding machine trial material copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire and wire harness and other copper wire, aluminum wire welding





Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
