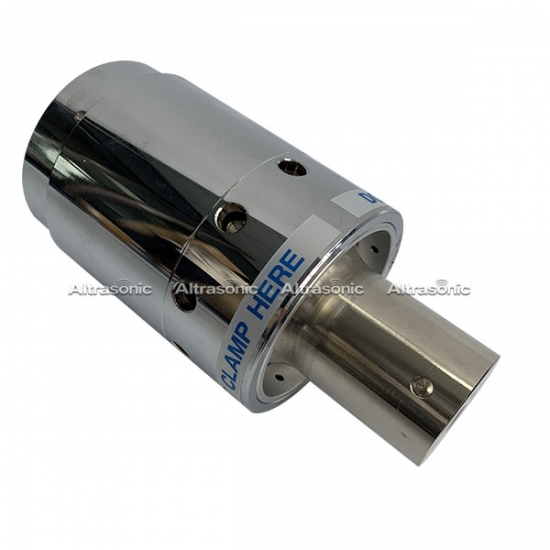

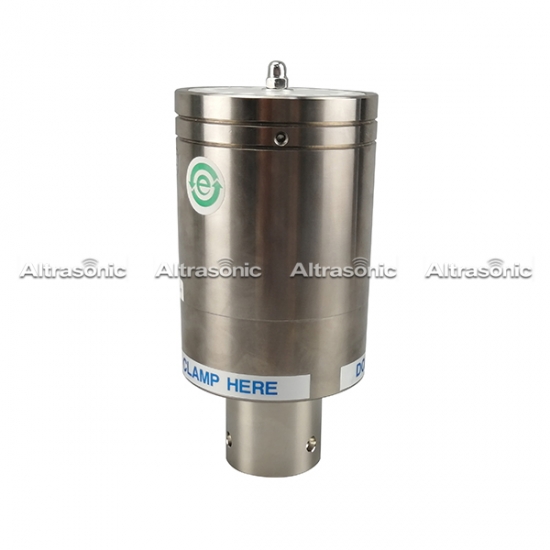

Ultrasonic Converters For Branson & Dukane Ultrasonic Welder
- China
- Altrasonic
- HS-B/D
- Ningbo or Shanghai
- Sliver
- 1
- 5
- T/T, Paypal, Western Union
- $699/PC
- Contact Now
Ultrasonic Converters For Branson & Dukane Ultrasonic Welder
Replacement Item Specification:
Model |
Frequency (khz) |
Ca(PF) |
Power(w) |
Machine |
Branson 402 |
19.6-20.0 |
7800-8500 |
450-900 |
Branson8400 |
Branson 502 |
19.6-20.0 |
11500-12500 |
2000 |
Branson8800/5170 |
Branson CJ20 |
19.4-19.7 |
19000-21000 |
1100-4000 |
Branson2000 series |
CB35A15A |
36.5-7.5 |
3300-4000 |
800 |
Rinco-35A15A |
CV231 |
38.3-39.0 |
3500-4500 |
900 |
40k Metal Welding |
CV3510 |
36.2-37.0 |
3200-4000 |
800 |
Rinco-CV3510 |
Dukane 110-3122 |
19.6-20.0 |
12500-14000 |
2600 |
Dukane Heavy Duty |
Description:
Ultrasonic transducers generally have two types: magnetostrictive transducers and piezoelectric crystal transducers. One of the most mature and reliable is the device that converts electrical energy and acoustic energy by piezoelectric effect, called piezoelectric transducer. The Replacement Converter for Rinco 35khz is piezoelectric crystal transducers, and has the low cost, the high performance characteristic. This transducer is used for ultrasonic welding machine, ultrasonic cleaning machine, ultrasonic cutting machine, etc.
Why Pay More?
We offer the same warranty as the OEM, namely, five years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
