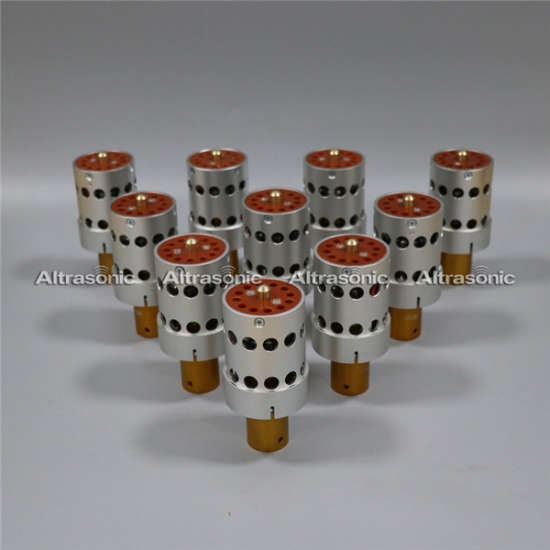

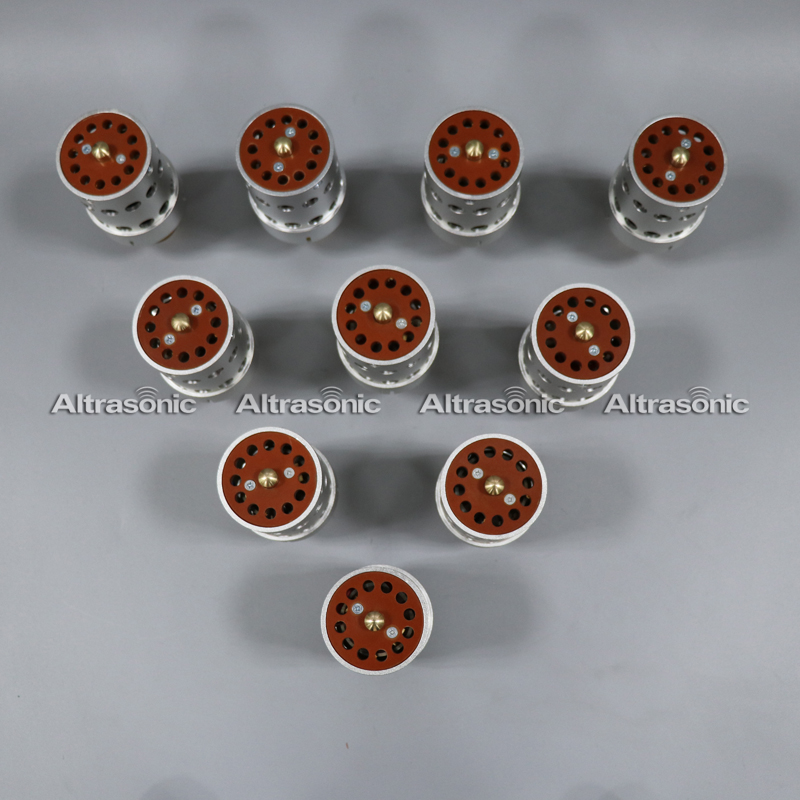

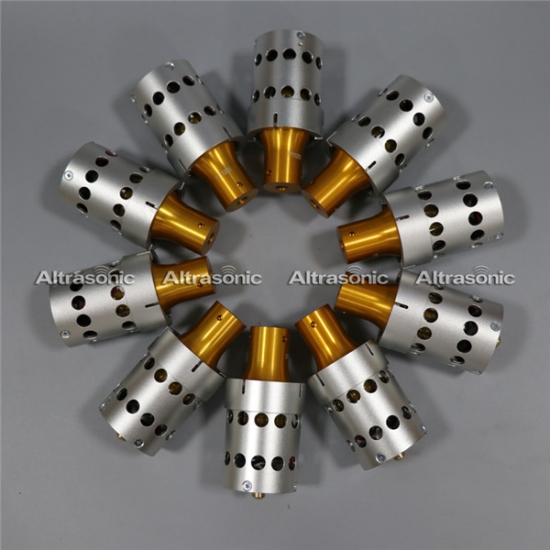

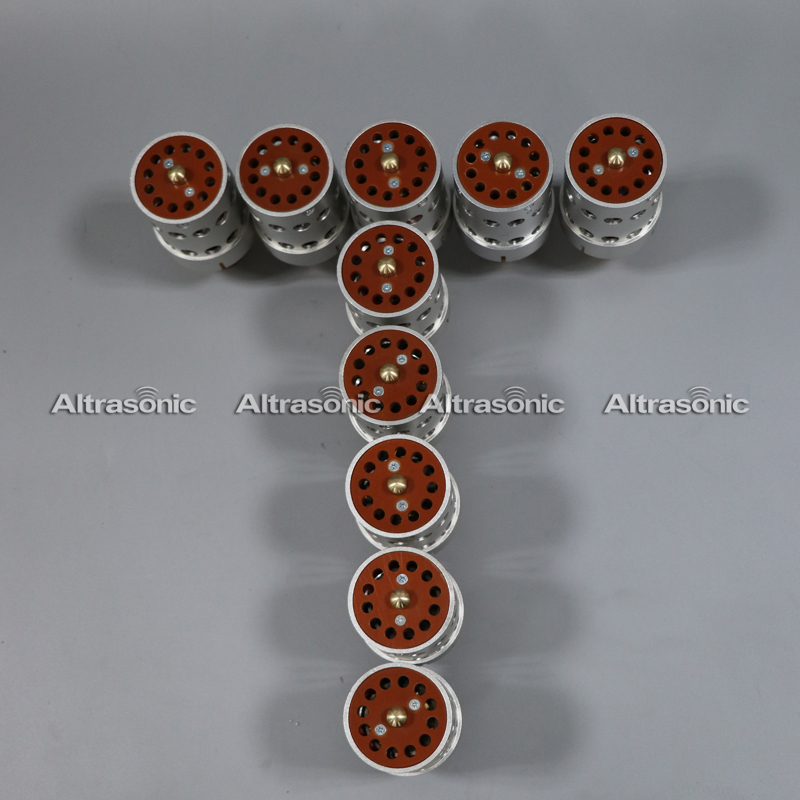

Ultrasonic Converter Replacement Dukane 110-3122 With 20kHz 2000W


Description:

The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.




Specification:



Model HSD110-3122
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-17 nf
Amplitude 20 um
Application Plastic welding machine





Applied Range:


Replacement ultrasonic converter for Dukane 110-3122, for use with all 20KHz 2000 and 2000X actuator and IW systems.





Competitive Advantage:



1. Titanium materials.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you:


1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.



Replacement Item:


Item No Connect Screw (Size)

Ceramic diameter

(mm)

Qty of ceramic

(PC)

Frequency(khz) Resistance(Ω) Color of ceramic Capacitance

Input Power

(W)

Branson CJ20 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 502 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 402 M8*1.25 25 4 39.60 10 Yellow 4200 800
Branson 4TH M8*1.25 25 4 39.90 10 Yellow 4200 800
Branson 902 1/2-20UNF 40 4 19.85 10 Yellow 8000 1100
Branson 922J 1/2-20UNF 50 6 19.90 10 Yellow 20000 2200
Dukane 40K M8*1.25 35 2 39.80 5 Gray 3000 800
Dukane 20K 1/2-20UNF 50 2 19.50 10 Yellow 11000 2000
Dukane 110-3122 1/2-20UNF 50 4 19.50 10 Yellow 11000 2000
Dukane 110-3168 1/2-20UNF 45 2 19.50 10 Yellow 4000 800
Rinco 35K M8*1.25 25 2 34.80 50 Yellow 2000 900
Rinco 20K M16*2 50 2 19.90 50 Yellow 5000 3000
Telsonic 35K M8*1.25 25 4 35.00 5 Yellow 4000 1200
Telsonic 20K 1/2-20UNF 50 4 20.00 3 Yellow 10000 2500




NextReplacement Branson Converter/Transducer CJ20
