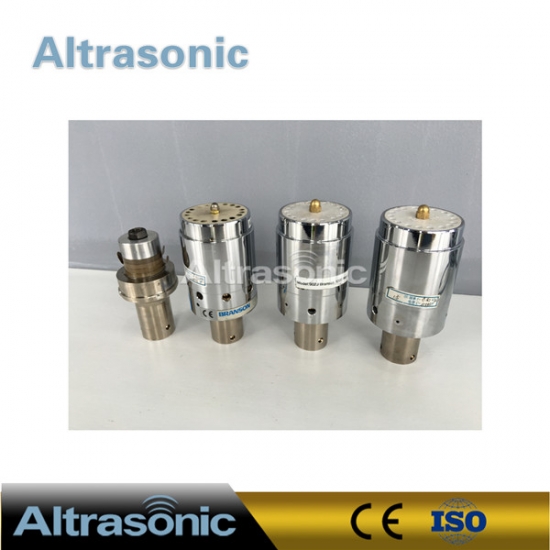

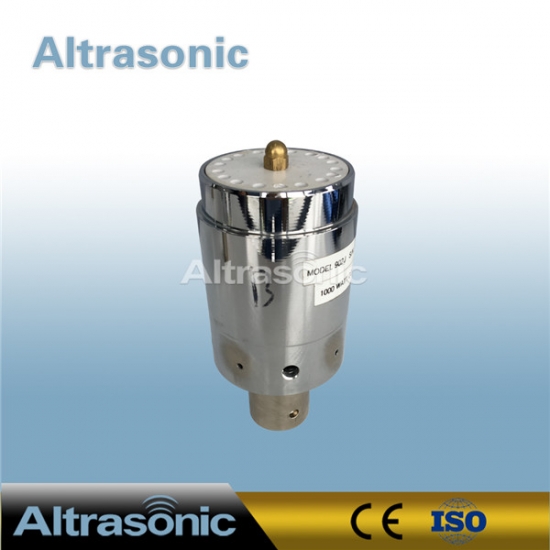

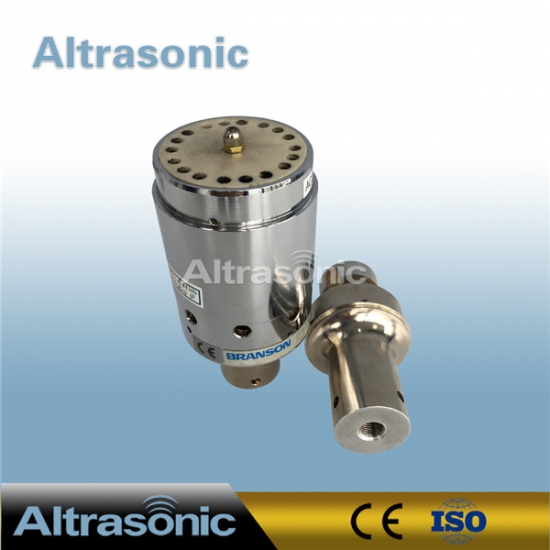

Subsitution For Branson Ultrasonic 902J Converter/Transducer Part No- 101-135-047

  • China
  • Altrasonic
  • HS-B902J
  • Ningbo or Shanghai
  • Silver
  • 1
  • 5
  • T/T, Paypal, Western Union
  • $699/PC

  • Contact Now
Product Details


Subsitution For Branson Ultrasonic 902J Converter/Transducer Part No- 101-135-047




Specification:


 Item No.:  HS-B902J
 Frequency:  20kHz
 Power:  1100Watt
 Connect Screw:  1/2-20UNF
 Ceramic Diameter:  40mm
 Qty of Ceramic:  4PCS
 Amplitude:  20um
 Color of Ceramic:  Yellow


Description:


Ultrasonic transducers, essentially piezoelectric ceramics with the same frequency as the resonant frequency, use the piezoelectric effect of the material to convert electrical energy into mechanical vibration.Generally, the ultrasonic wave is generated by the ultrasonic generator first, converted into mechanical vibration by the ultrasonic transducer, and then the ultrasonic receiving device can generate ultrasonic waves.




Application:



Mainly used with ultrasonic plastic welding machine, ultrasonic spot welding, ultrasonic metal welding machine, ultrasonic cleaning machine, ultrasonic sonochemical equipment, ultrasonic cutting machine, etc..



Competitive Advantage:



Firstly: Mechanical quality, high efficiency, high in the resonant frequency factor some work can gain the highest electro-acoustic conversion efficiency.

Second: Amplitude big: via computer optimization design of structure, vibration amplitude ratio is high, front cover.

Third: Large power: in prestressed screw, under the action of piezoelectric ceramic energy get maximum play.

Fourth: Heat-resistant good: resonant impedance small, discusses the small, use temperature range. High reliability life long



Product features:


All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility



Warranty:


We offer the same warranty as the OEM, namely, one year of one-time replacement.

Simply ship the broken unit back to arrive within one year of original shipment, and it will be replaced (one time).
