Replacement Branson CJ20 Ultrasonic Welding Transducer 20khz With Protect Housing

  • China
  • Altrasonic
  • HS-BCJ20
  • Shanghai or
  • Silver
  • 1
  • T/T, Paypal, Western Union
  • $688/PC
  • 5-10/630$

  • Contact Now
Product Details

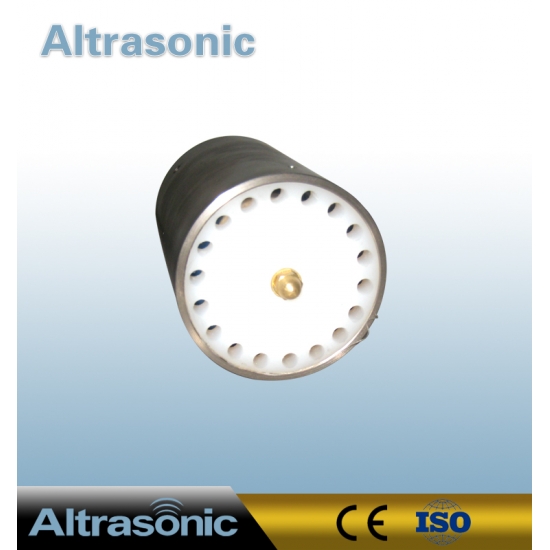

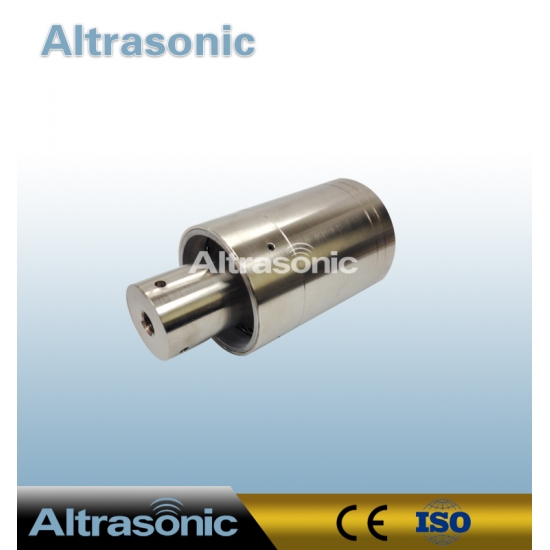

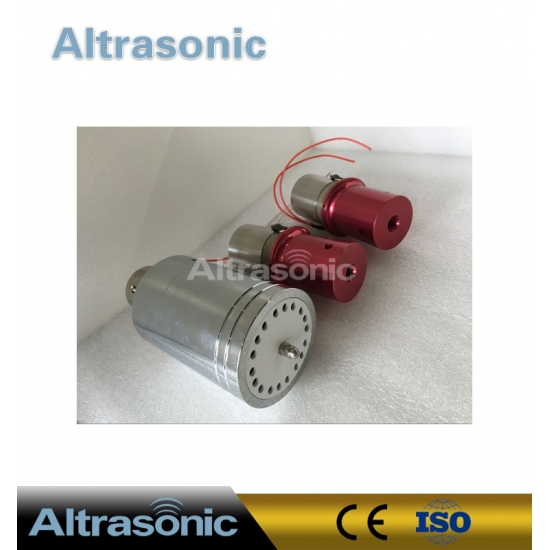

Replacement Branson CJ20 Ultrasonic Welding Transducer 20khz With Protect Housing


Ultrasonic transducer is a device that converts electrical energy into mechanical energy. The most mature and reliable device is a device that converts electrical energy to sound energy with the effect of piezoelectric. It is called a piezoelectric transducer. This type of transducer produces a stable ultrasonic wave when the load changes.




Branson CJ20 Replacement



Output power


Joint bolt


Ceramic disc Diameter

50 mm

Quantity of Ceramic discs











Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.


Competitive Advantage:

1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

Previous20kHz 1500w Replacement Branson 803 Ultrasonic Welding Transducer 50 Mm Ceramic Diameter

NextReplacement Branson Converter Transducer CJ20

Please feel free to contact us.
