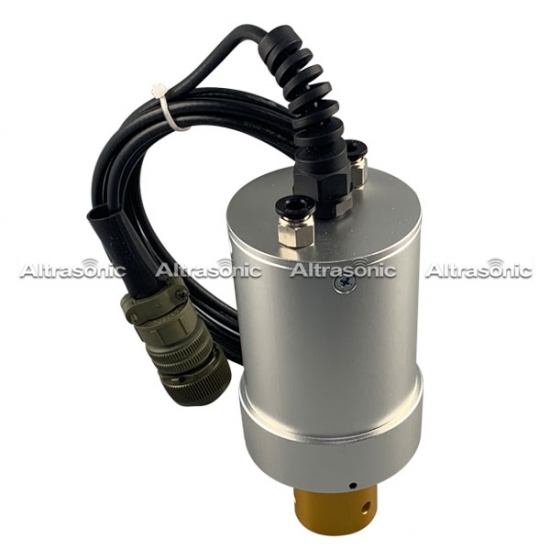

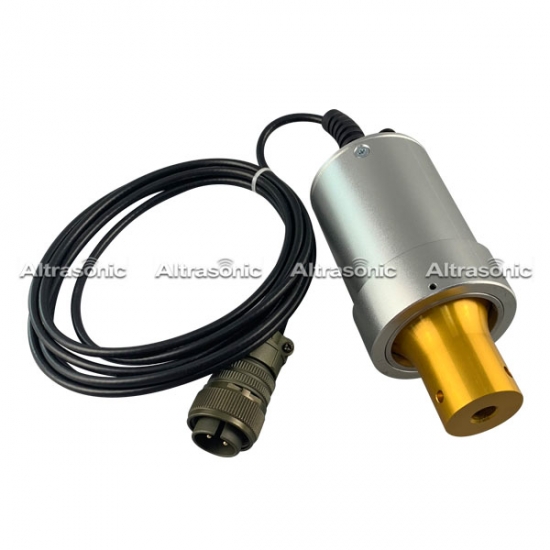

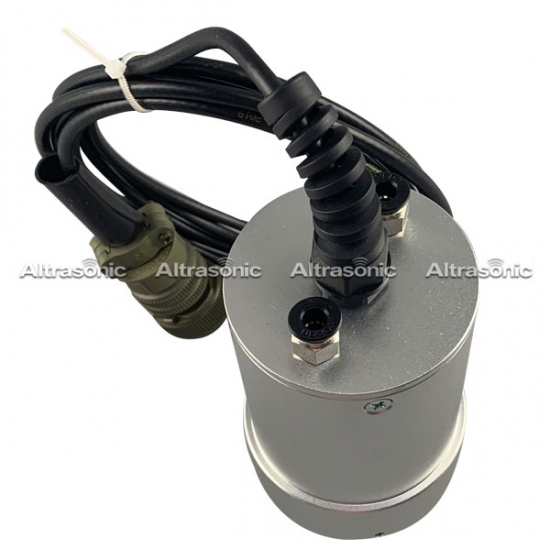

The 20kHz High Power Ultrasonic Welding Transducer, replacement converter for Dukane type 41S30, is applied to Dukane type ultrasonic welding machine.
Item No.:
HS-D41S30Payment:
T/T, Paypal, Western UnionPrice:
$788/pieceProduct origin:
ChinaColor:
Silver and YellowMin order:
2Shipping port:
Ningbo or ShanghaiLead Time:
7
One Year Warranty Ultrasonic Core for Ultrasonic Converter Replacement 41S30
Specifications
| Model | HS-D41S30 |
| Frequency | 20 kHz |
| Output power | 1000-3000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50mm |
| Amplitude | 20um |
| Capacitance | 11-12nf |
| Material | Titanium or aluminum for selection |
| Application | Plastic welding |
Description
The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30 is applied to Dukane type ultrasonic welding machine.
Now, we can provide ultrasonic welding transducer/converter to replace some famous brands, such as Branson / Telsonic / Rinco / Dukane.
Advantages
1. High efficiency.
2. High-quality materials are matched with selected materials, perfect resonance image.
3. Large amplitude and long service life.
4. Stable design can protect sensitive ultrasonic components.
5. The design of 4 piezoelectric disks can achieve the maximum output amplitude.
Previous :
Replacement Dukane 41S30 Ultrasonic Converter Ultrasonic AccessoriesNext :
Heavy Duty Ultrasonic Welding Parts 20kHz Ultrasonic Converter Replacement 41S30If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.
Replacement Dukane 110-3122 Converter, used for Dukane plastic welding machine.
Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations.
We can replace the front and back cover of the transducer according to the need. The 20k ultrasonic transducer can be installed with ultrasonic thermoplastic welding machine to weld thermoplastic materials.
40khz Dukane Converter Replacement Red Color with 35MM Ceramic Diameter for Welding Application
